| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AC3MMJ |
| Series: | AC |
| Connector Type: | XLR |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Housing Color: | Nickel |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 15 A |
| Voltage Rating: | 133 V |
| SKU: | AMEAC3MMJ |
AC3MMJ
| Heilind Number: | AMEAC3MMJ |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | AC3MMJ |
| ECAD Model: | |
Description:

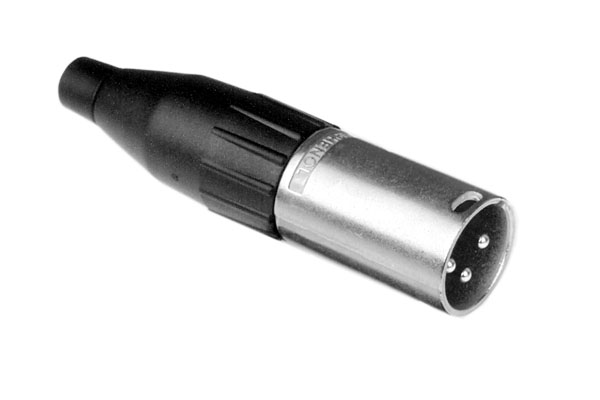

AC3MMJ 3 Pole XLR Male Cable Connector, Machined Contacts, Large Cable Clamp, Nickel Finish
More >>Specifications
Detailed Description
The AC3MMJ 3 Pole XLR Male Cable Connector is a robust and reliable audio connector designed for professional applications. Featuring machined contacts and a large cable clamp, this connector ensures secure and stable connections. The nickel finish not only enhances durability but also adds a sleek look. With a housing made of die-cast zinc alloy and brass contacts plated with silver, this connector guarantees high performance. Its solder termination method and IP40 rating make it suitable for various environments. Rated for 15A current and 133V voltage, it meets the demands of audio, video, and broadcast systems. With a wide operating temperature range from -25°C to 75°C and a UL 94V-0 flammability rating, it offers reliability in any situation. Perfect for professional audio setups, the AC3MMJ is part of the XLR Series, known for its quality and longevity.
