| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ACJS-MH |
| Gender: | Female |
| Series: | M |
| IP Rating: | IP40 |
| Mount Type: | PCB Mount |
| Mount Angle: | Straight |
| Mating Cycles: | 10000 cycle |
| Connector Type: | Phone |
| Current Rating: | 10 A |
| Voltage Rating: | 34 V |
| Contact Material: | Brass |
| Housing Material: | Glass-Filled Nylon |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94HB, UL 94V-0 |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | -25 °C |
| SKU: | AMEACJS-MH |

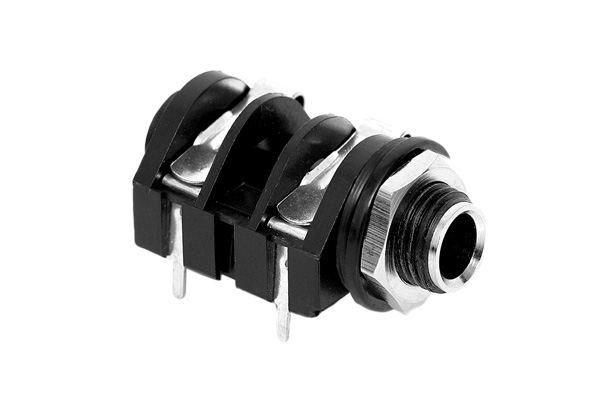

ACJS-MH
Specifications
Detailed Description
Introducing the ACJS-MH 1/4" Single Stereo Phone Jack, a high-quality audio connector designed for horizontal PCB mounting. Featuring a durable construction with a metal bore and nut, as well as a plastic thread, this jack ensures reliable connectivity. With three contacts and a solder termination method, it guarantees secure signal transmission. The housing material is glass-filled nylon, offering excellent strength and insulation properties. Operating between -25°C to 70°C and with an IP40 rating, it is suitable for a wide range of environments. With a current rating of 10A and voltage rating of 34V, this connector is ideal for audio, video, and broadcast applications. RoHS compliant and meeting UL 94HB and 94V-0 flammability ratings, it adheres to strict quality standards. Perfect for professional audio setups, the ACJS-MH is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
