| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AG5FL |
| Series: | AG |
| Connector Type: | XLR |
| Gender: | Female |
| Housing Material: | Bronze, Zinc |
| Number of Contacts: | 5 |
| Mount Type: | PCB Mount |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Gold Over Silver |
| Maximum Operating Temperature: | 80 °C |
| Minimum Operating Temperature: | -30 °C |
| IP Rating: | IP00 |
| Housing Color: | Nickel |
| Mating Cycles: | 5000 cycle |
| Wire Size: | 24 AWG - 0.5 mm² |
| Flammability Rating: | UL 94V-HB |
| Current Rating: | 4 A |
| SKU: | AMEAG5FL |
AG5FL
Specifications
Detailed Description

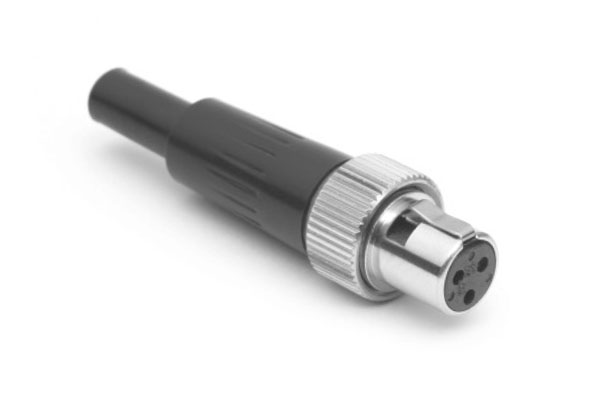

Introducing the AG5FL 5 Pole Mini XLR Cable Connector, a crucial component for seamless audio and video connectivity. This Female connector, featuring Stamped Contacts with a durable Nickel Finish, guarantees reliable performance. Engineered with a Zinc and Bronze housing, it ensures both strength and conductivity. With a PCB Mount design and Solder termination method, installation is effortless. The Brass contacts plated with Gold Over Silver offer optimal signal transmission. Operating efficiently in temperatures ranging from -30°C to 80°C, it's suitable for various environments. Meeting IP00 standards for protection, this connector prioritizes safety. Boasting a high mating cycle of 5000, it's built for longevity. Accommodating 24 AWG - 0.5 mm² wire size, it's versatile. With a current rating of 4A and UL 94V-HB flammability rating, it's ideal for audio, video, and broadcast applications. The AG5FL is a standout in the XLR Series, delivering unmatched quality and performance.
