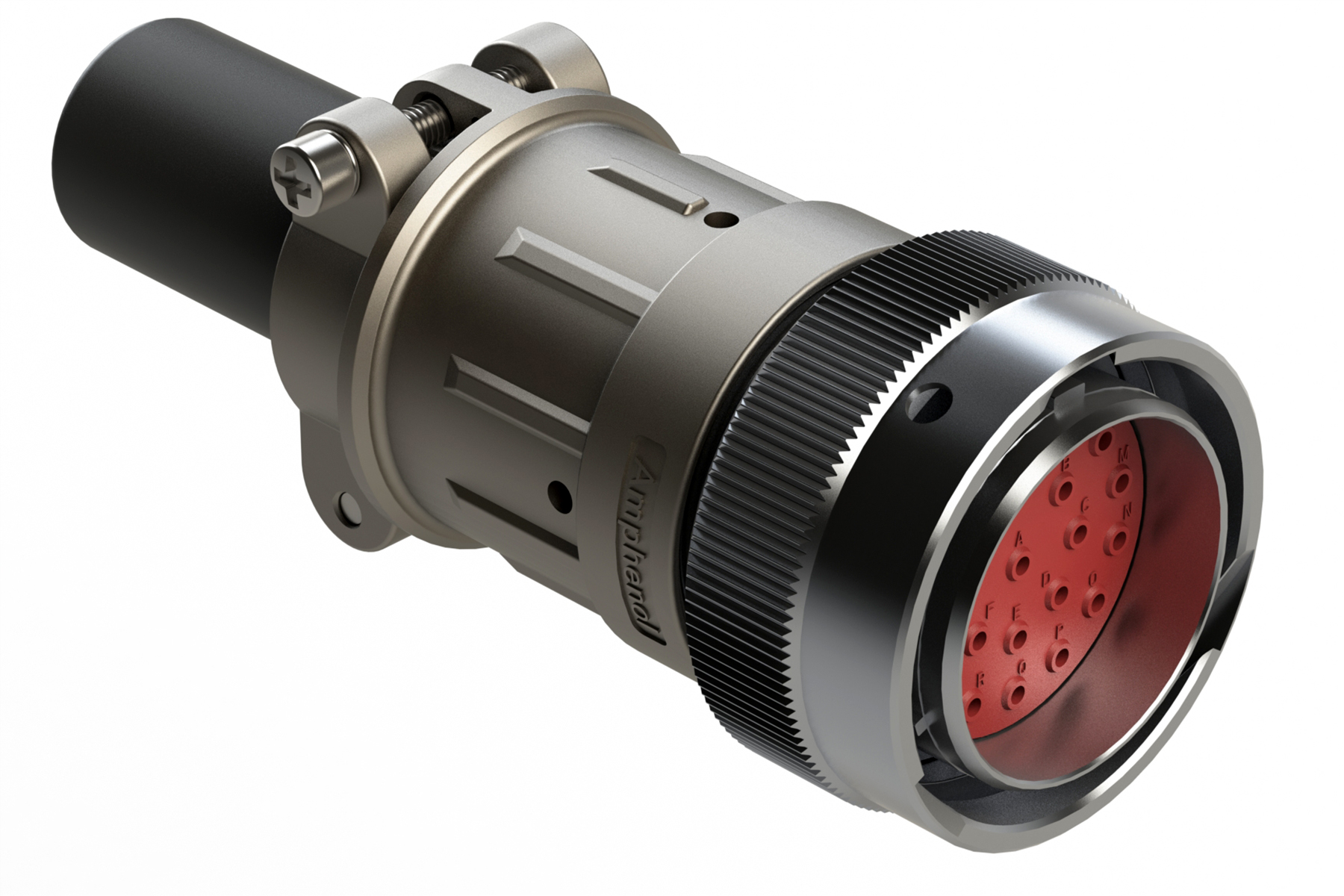

AHDM06-24-23PT-059

AMEAHDM06-24-23PT-059
Heilind Number:AMEAHDM06-24-23PT-059
Manufacturer:Amphenol Sine Systems
Manufacturer Number:AHDM06-24-23PT-059
Datasheet:Datasheet
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems AHDM06-24-23PT-059
Series:DuraMate™ AHDM
Gender:Male
Housing Material:Zinc Alloy
Number of Contacts:23
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP69K
Shell Size:24
Mating Type:Bayonet
Seal Material:Silicone Rubber
Shell Size - Insert Arrangement:24-23
Mating Cycles:100 cycle
Wire Size:20 - 14 AWG
Shell Finish:Nickel Plated
Current Rating:13 A
Voltage Rating:250 V
SKU:AMEAHDM06-24-23PT-059

Detailed Description

Introducing the DuraMate™ AHDM Series Circular Connector, SKU AHDM06-24-23PT-059, designed for reliable performance in demanding environments. With a rugged Zinc Alloy housing and IP69K rating, this connector ensures robust protection against water and dust ingress. Featuring 23 gold-plated contacts, it guarantees secure and efficient signal transmission. Operating flawlessly in temperatures ranging from -55 °C to 125 °C, it is ideal for both indoor and outdoor applications. The bayonet mating type facilitates quick and easy connections, while the silicone rubber seals provide added durability. With a shell size of 24 and 24-23 insert arrangement, it offers compatibility with a wide range of devices. Nickel-plated for corrosion resistance, and with a current rating of 13A and voltage rating of 250V, this connector is suitable for power and data transmission. Perfect for use in hi-rel environments, it ensures long-lasting performance, making it a reliable choice for your connectivity needs.
