C091 31C008 200 2

AMEC091_31C008_200_2
Heilind Number:AMEC091 31C008 200 2
Manufacturer:Amphenol Sine Systems
Manufacturer Number:C091 31C008 200 2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

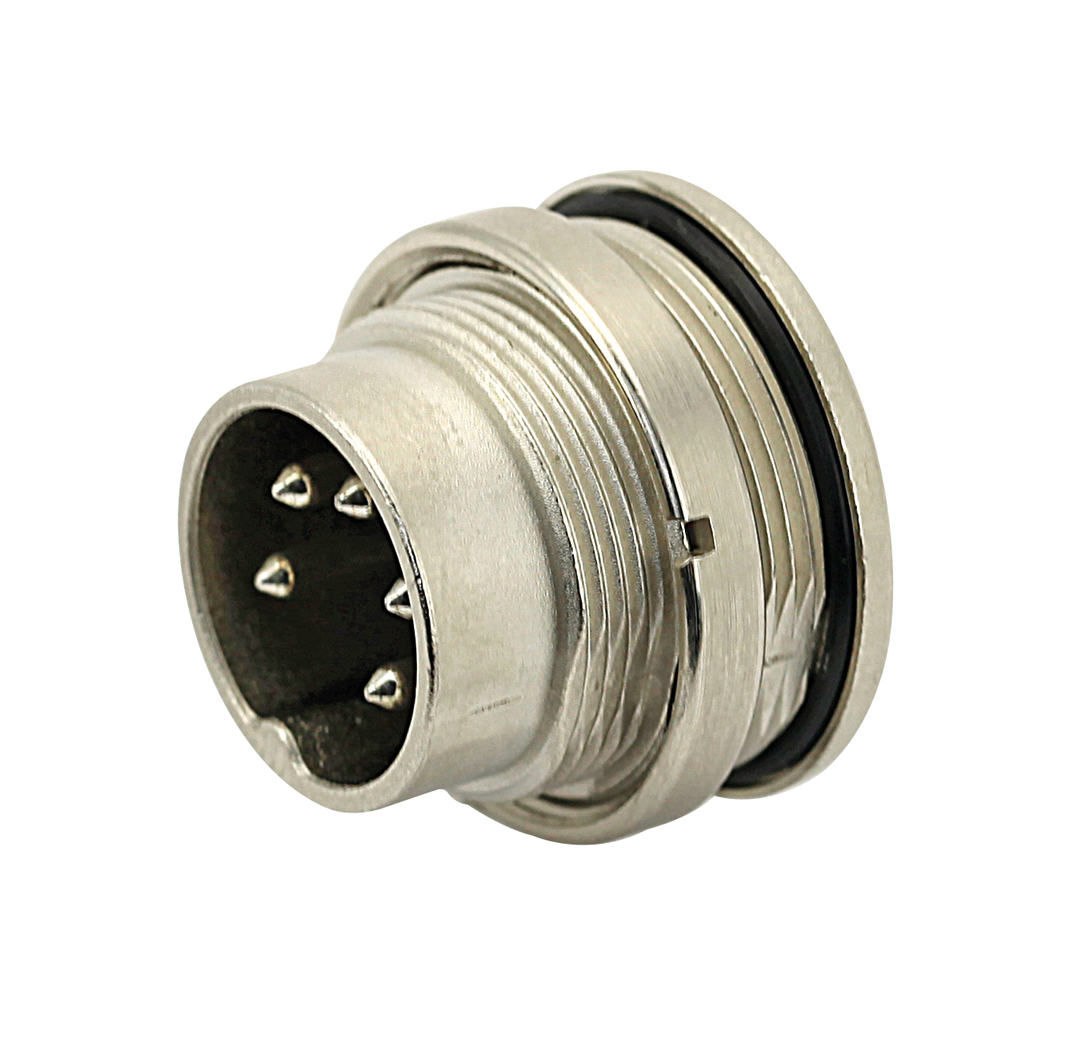

REAR MOUNTING MALE METAL RECEP

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular DIN Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems C091 31C008 200 2
Gender:Male
Housing Material:Die-Cast Zinc
Number of Contacts:8
Mount Type:Panel Mount
Termination Method:Solder
Contact Plating:Gold
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP67
Mating Type:Screw
Mating Cycles:1000 cycle
Shielded:Yes
Wire Size:20 AWG
Current Rating:7 A
Voltage Rating:100 V
SKU:AMEC091 31C008 200 2

Detailed Description

Introducing the C091 31C008 200 2, a rugged rear mounting male metal receptacle designed for reliable connectivity in demanding environments. Crafted from durable die-cast zinc, this connector features 8 gold-plated contacts for optimal signal transmission. With a panel mount configuration and solder termination method, installation is secure and efficient. Operating between -40°C to 100°C and boasting an IP67 rating, it ensures performance even in harsh conditions. The screw mating type allows for easy and secure connections, with a lifespan of 1000 cycles. Shielded for interference protection, it accommodates 20 AWG wire and offers a current rating of 7A at 100V. While not RoHS compliant, its high reliability and robust construction make it ideal for industrial applications. Discover seamless connectivity with the C091 31C008 200 2 Circular DIN Connector.
