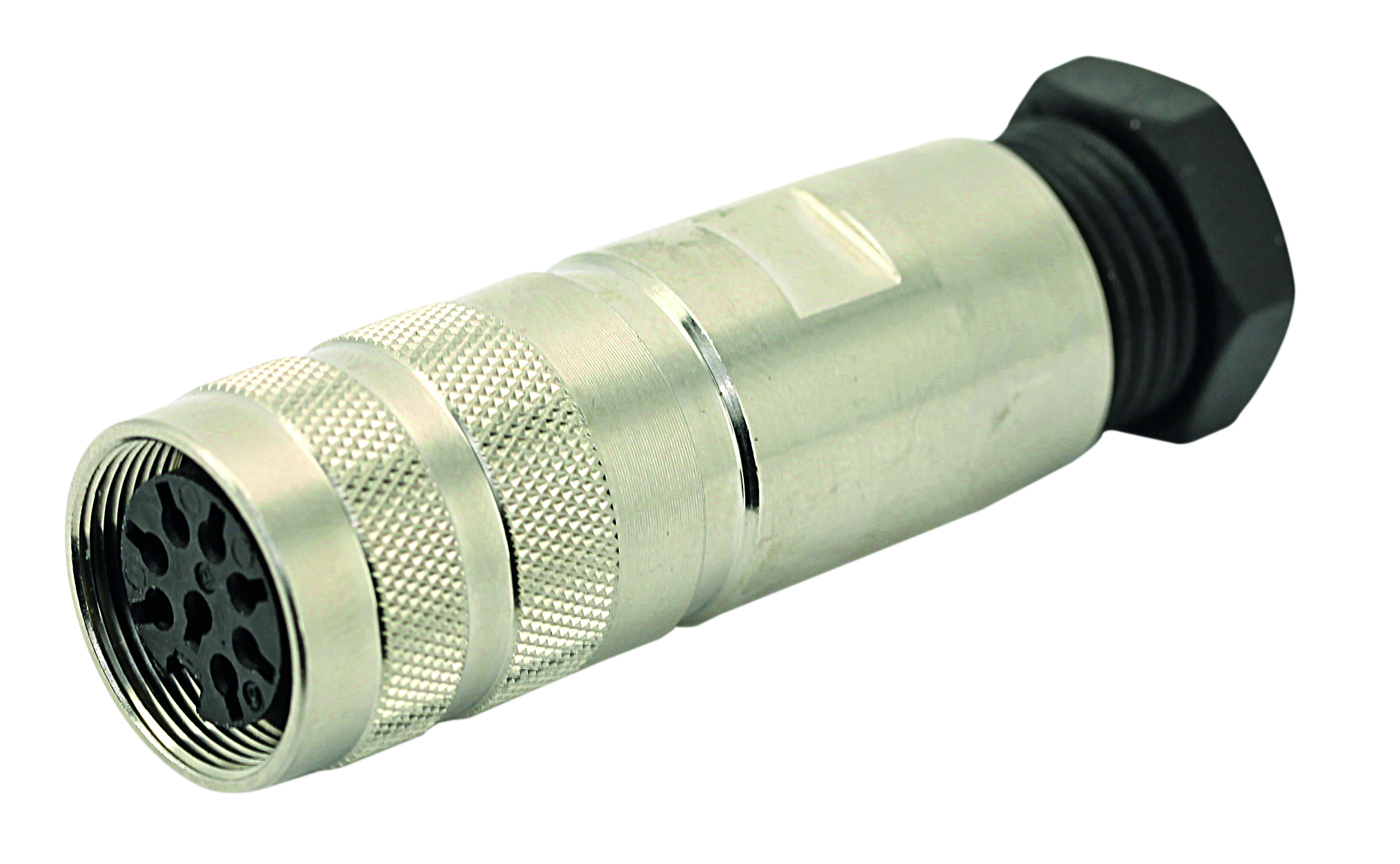

C091 31D008 201 2

AMEC091_31D008_201_2
Heilind Number:AMEC091 31D008 201 2
Manufacturer:Amphenol Sine Systems
Manufacturer Number:C091 31D008 201 2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

C091D

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular DIN Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems C091 31D008 201 2
Color:Nickel
Gender:Female
Shielded:Yes
IP Rating:IP69K
Wire Size:20 AWG
Mount Type:Cable Mount
Shell Size:M16
Mating Type:Screw
Mount Angle:Straight
Mating Cycles:1000 cycle
Current Rating:7 A
Voltage Rating:100 V, 250 V
Contact Plating:Gold
Housing Material:Die-Cast Zinc
Number of Contacts:8
Termination Method:Solder
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-40 °C
SKU:AMEC091 31D008 201 2

Detailed Description

Introducing the C091 31D008 201 2 Circular DIN Connector, a high-performance connectivity solution designed for demanding industrial applications. This female connector, featuring a durable Die Cast Zinc housing in a sleek Nickel finish, offers reliable signal transmission with its 8 gold-plated contacts. Suitable for cable mount installation via solder termination, it ensures secure connections even in harsh environments, thanks to its IP69K rating for water and dust resistance. With a wide operating temperature range from -40°C to 100°C and a shielded design, it guarantees optimal performance in rugged conditions. The M16 shell size and straight mount angle make it easy to integrate, while its 1000 mating cycle durability ensures long-term reliability. Rated for 7A current and 100V/250V voltage, this connector is perfect for industrial machinery, automation systems, and other high-power applications. Compliance with RoHS standards reflects our commitment to environmental responsibility. Upgrade your connectivity with the C091 31D008 201 2, the perfect choice for robust and efficient circular DIN connections.
