C091 31W006 100 2

AMEC091_31W006_100_2
Heilind Number:AMEC091 31W006 100 2
Manufacturer:Amphenol Sine Systems
Manufacturer Number:C091 31W006 100 2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

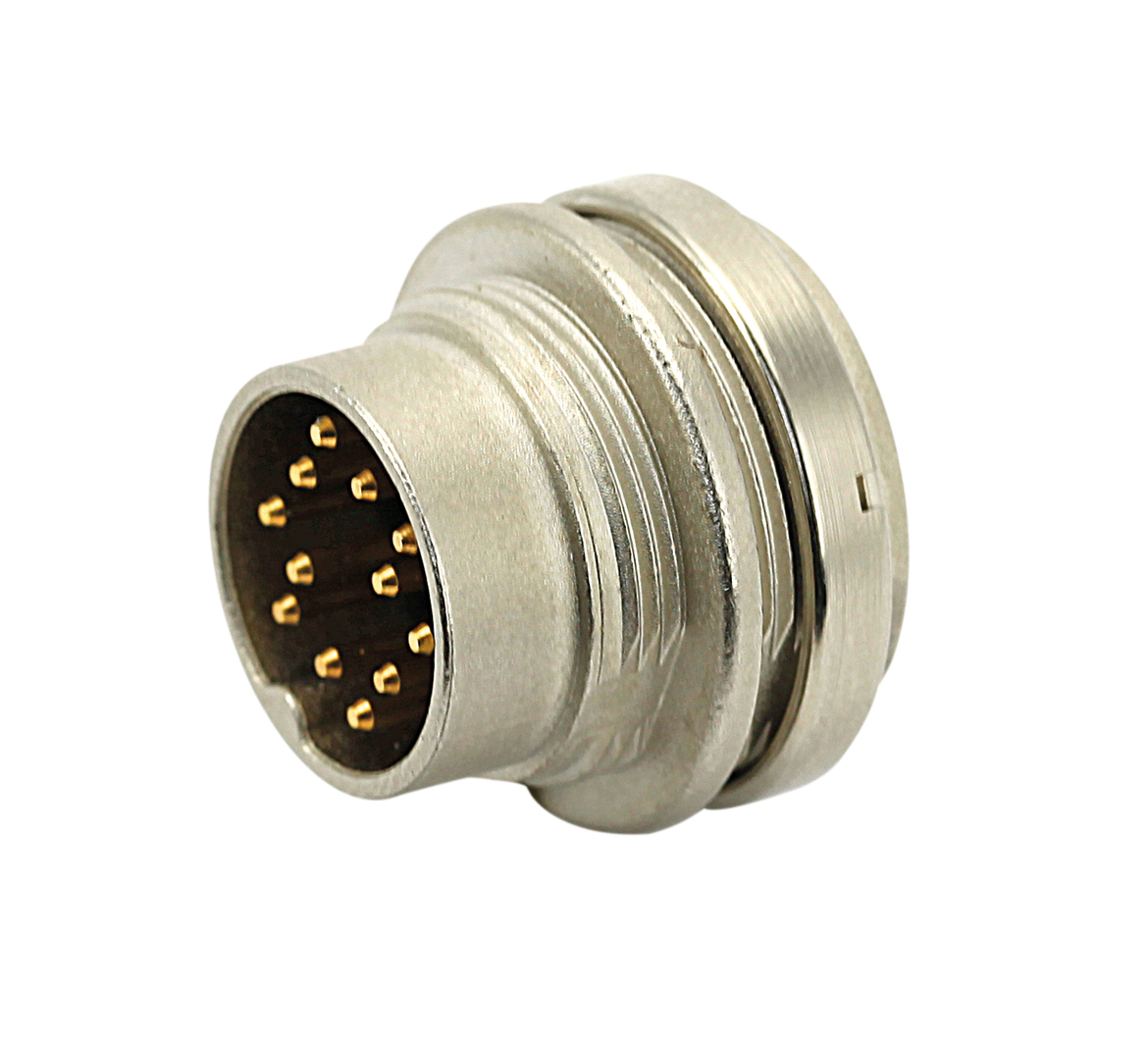

FRONT MOUNTING MALE METAL RECE

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular DIN Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems C091 31W006 100 2
Gender:Male
Shielded:Yes
IP Rating:IP67
Wire Size:20 AWG
Mount Type:Panel Mount
Mating Type:Screw
Mating Cycles:500 cycle
Current Rating:7 A
Voltage Rating:300 V
Contact Plating:Silver
Housing Material:Die-Cast Zinc
Number of Contacts:6
Termination Method:Solder
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-40 °C
SKU:AMEC091 31W006 100 2

Detailed Description

Introducing the C091 31W006 100 2, a robust and reliable FRONT MOUNTING MALE METAL RECEPTACLE designed for seamless panel installation. Crafted from high-quality Die Cast Zinc, this connector boasts unparalleled durability. With 6 silver-plated contacts for optimal conductivity, it guarantees efficient signal transmission. Featuring a solder termination method, it ensures secure and lasting connections, even in harsh environments. With an IP67 rating, it offers protection against dust and water ingress. Its screw mating type allows for easy and secure mating, while its shielded design minimizes interference. Accommodating 20 AWG wire size and capable of handling up to 7A of current at 300V, it meets the highest standards of performance. RoHS compliant, it aligns with environmental regulations. Perfect for Circular DIN Connectors, this product is a must-have for any industrial or electronic application.
