| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems RT07124SNH03 |
| Military Specification: | MIL-DTL-26482 |
| Series: | ecomate® RM Series |
| Gender: | Female |
| Housing Material: | Zinc Alloy |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Shell Size: | 12 |
| Contact Type: | Socket |
| Mating Type: | Bayonet |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 12-4 |
| Shell Material: | Zinc Alloy |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 to 14 AWG |
| Shell Type: | Jam Nut Receptacle |
| Shell Finish: | Nickel |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| Insert Arrangement: | 12-4 |
| Locking Mechanism: | Bayonet |
| SKU: | AMERT07124SNH03 |
RT07124SNH03
| Heilind Number: | AMERT07124SNH03 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | RT07124SNH03 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description

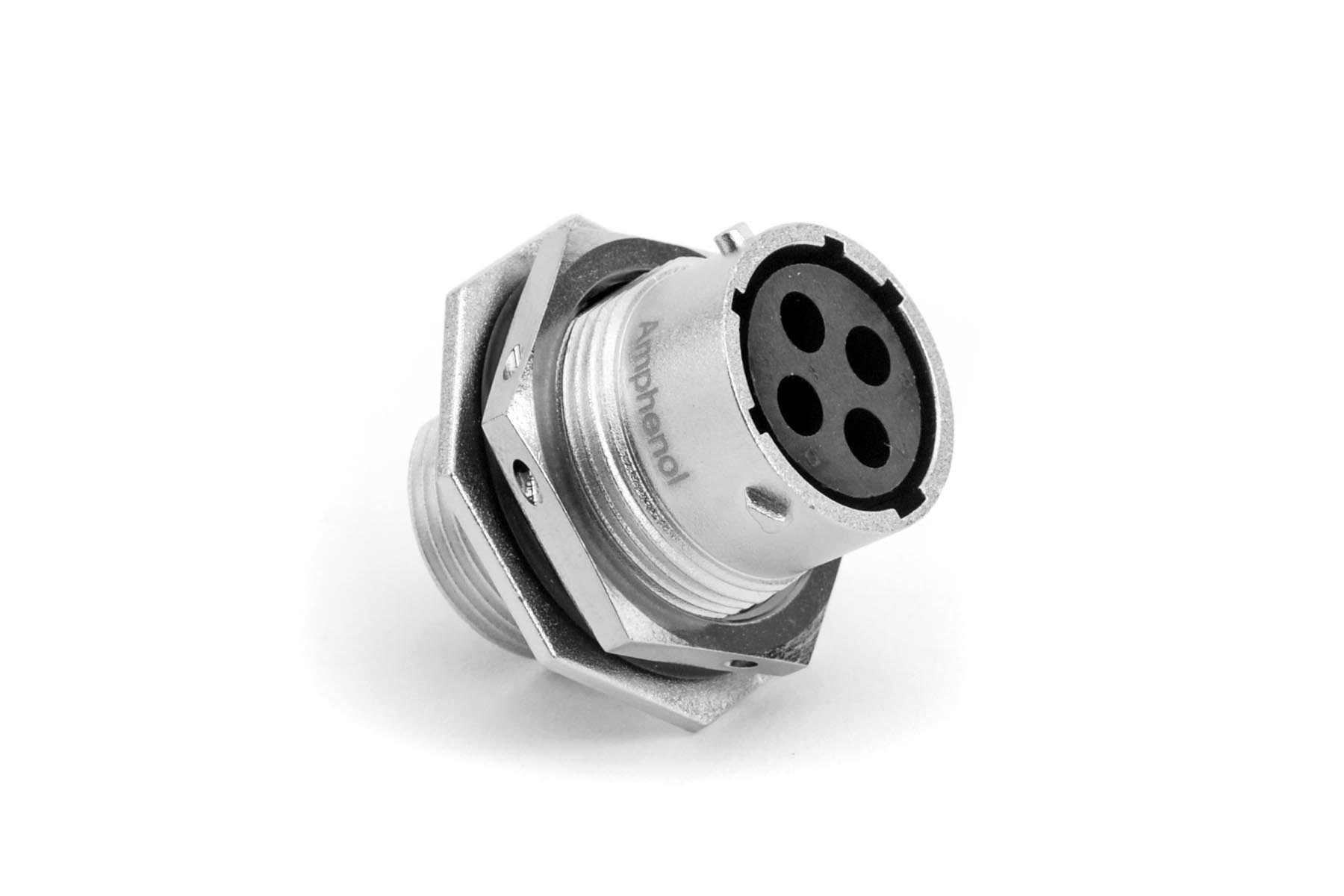

The ecomate® RM MIL-DTL-26482 Female Circular Connector, SKU RT07124SNH03, is a rugged and reliable solution for demanding military and industrial applications. With a zinc alloy housing and IP67 rating, it ensures durability and protection against harsh environments. Featuring a panel mount design and bayonet mating type, installation is secure and straightforward. The crimp termination method and silicone rubber seals guarantee a secure and watertight connection. Suitable for wire sizes ranging from 26 to 14 AWG, this connector offers versatility in use. With a current rating of 13A and voltage rating of 500V, it provides efficient power transmission. The nickel-plated shell finish not only enhances its aesthetics but also offers corrosion resistance. Designed for 500 mating cycles, it promises long-term reliability. The ecomate RM connector, with its high-quality construction and MIL-DTL-26482 compliance, is a dependable choice for mission-critical operations.
