| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3263 320 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3263 320 |

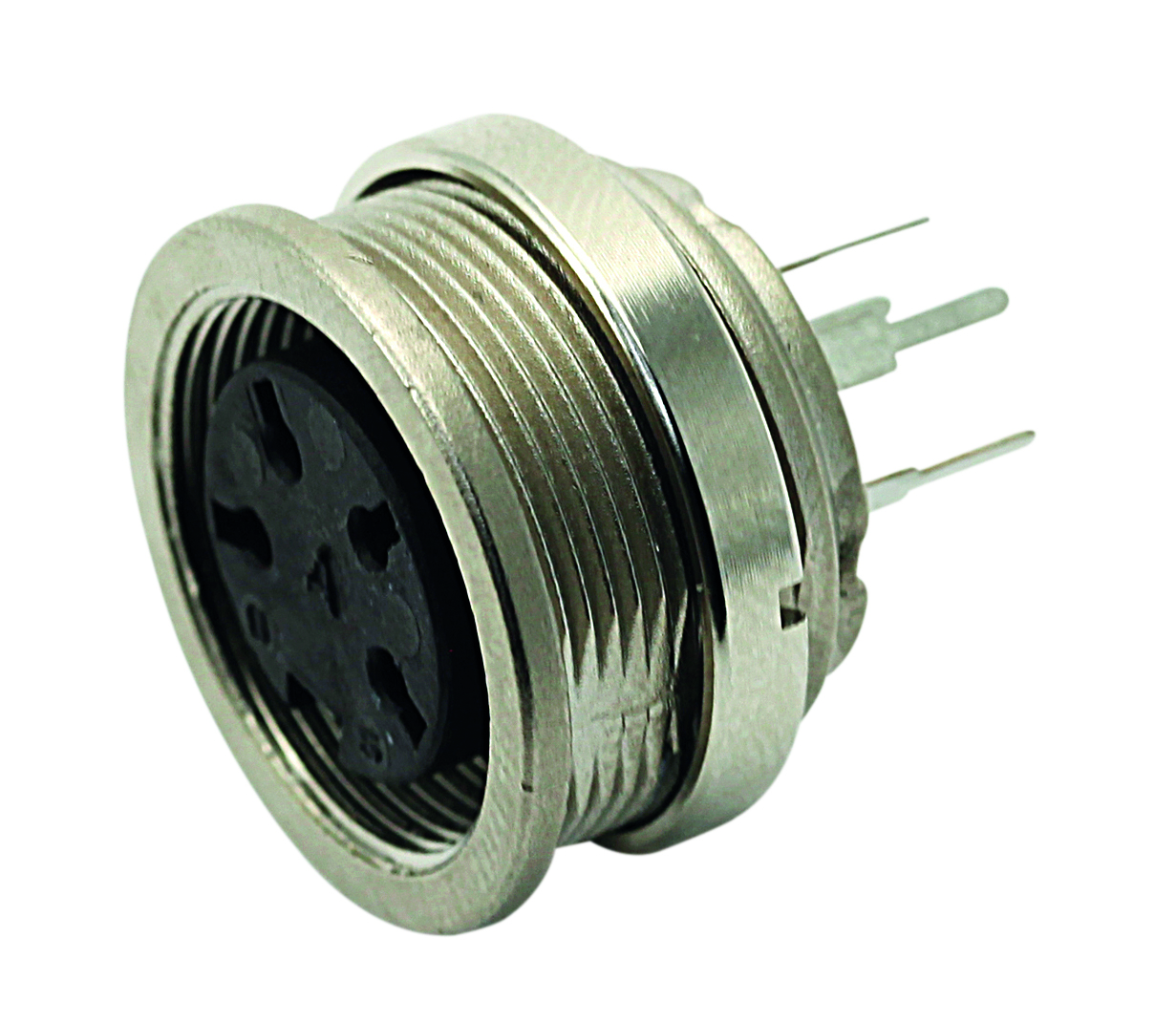

T 3263 320
Specifications
Detailed Description
Introducing the T 3263 320, a high-performance FRONT MOUNTING FEMALE RECEPTAC that is part of the renowned C091 M16-A series. Designed for durability, this connector features a housing made of Die Cast Zinc, ensuring reliable performance in various environments. With 3 contacts, it offers seamless connectivity for your applications. The panel mount design and solder termination method facilitate easy installation. Silver contact plating guarantees efficient signal transmission. Operating between -40°C and 100°C, this connector is suitable for a wide range of operating conditions. Its IP40 rating ensures protection against dust. With a mating type of screw and a durability of 500 cycles, it guarantees long-lasting use. Shielded for added safety, it accommodates 20 AWG wire size and offers a current rating of 10A and voltage rating of 300V. This connector, part of the Circular Connectors & Accessories category, is a reliable choice for your connectivity needs.
