| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3277 018 |
| Series: | C091 M16-B |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3277 018 |

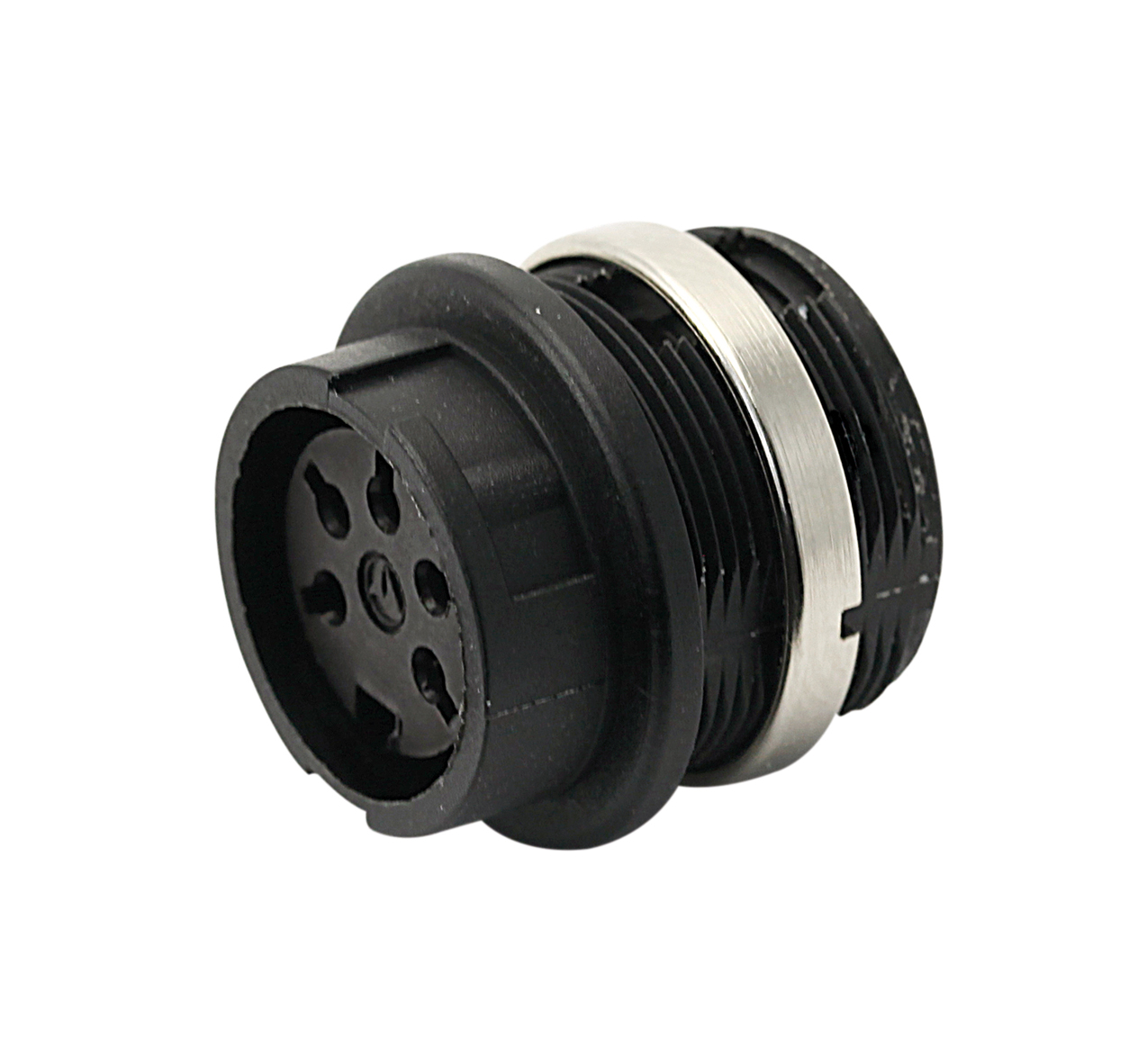

T 3277 018
Specifications
Detailed Description
The T 3277 018 Straight Female Circular DIN Connector, part of the C091 M16-B series, offers reliable connectivity in demanding environments. Featuring a robust Die Cast Zinc housing and gold-plated contacts, this panel-mount connector ensures high conductivity and durability. With a maximum operating temperature of 100°C and IP40 rating, it's suitable for a wide range of applications. The bayonet mating type and straight mount angle facilitate easy installation. Supporting 3 contacts, with solder termination method suitable for 20 AWG wire, it provides secure connections. With a current rating of 10A and voltage rating of 300V, it meets power transmission requirements. Designed for 1000 mating cycles, this connector guarantees long-term performance. Whether in industrial or commercial settings, the T 3277 018 is a dependable choice for your connectivity needs.
