| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3300 004 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3300 004 |
T 3300 004
Specifications
Detailed Description

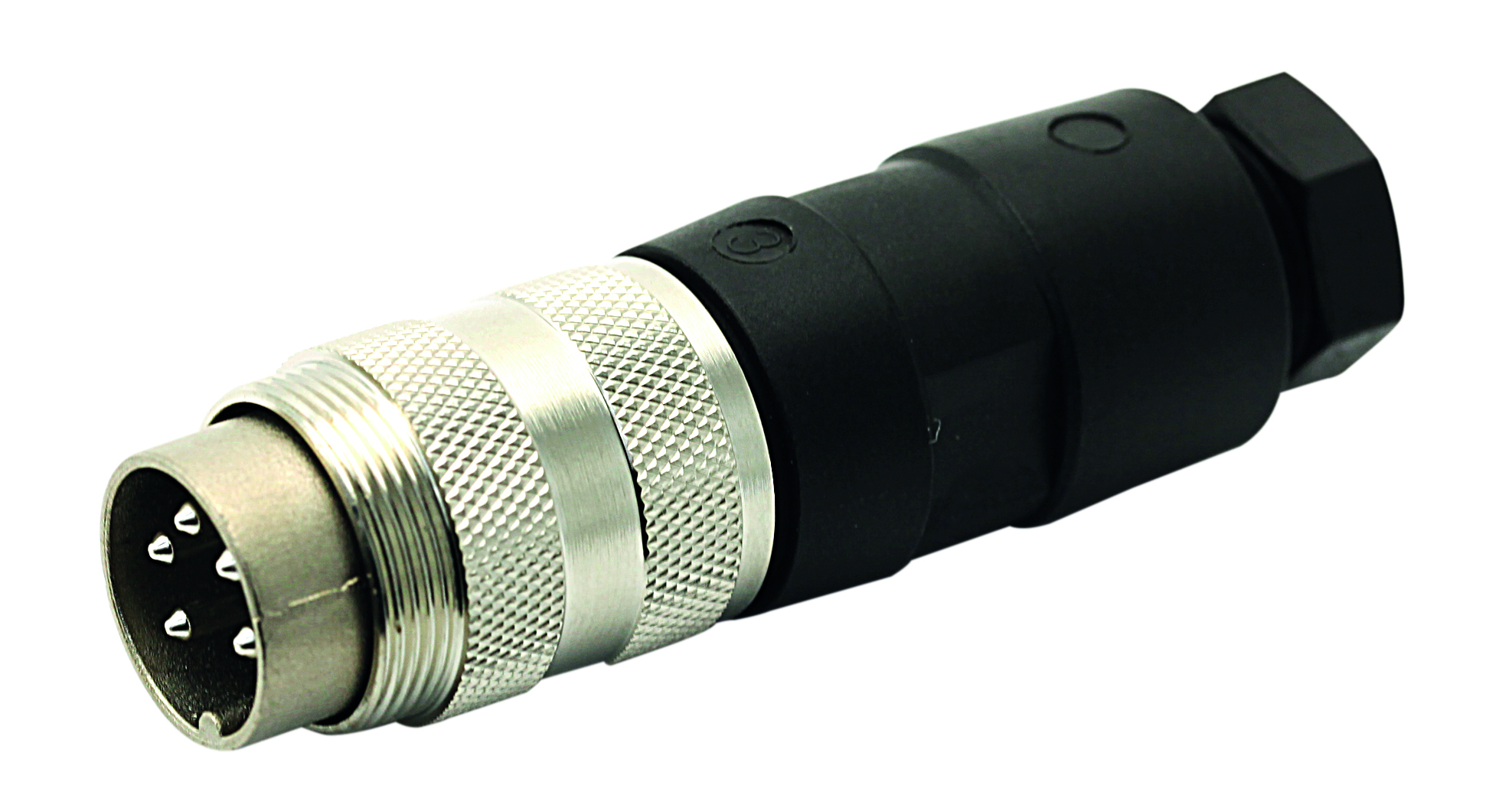

The T 3300 004 (C091A) Circular DIN Connector is a reliable and durable male connector suitable for various applications. Constructed with high-quality Die Cast Zinc housing, this connector ensures robust performance in industrial environments. Featuring four contacts and a cable mount design, it offers secure and stable connections. The solder termination method and silver contact plating guarantee excellent conductivity. With a wide operating temperature range of -40°C to 100°C and IP40 rating, it is suitable for use in harsh conditions. The M16 shell size, screw mating type, and straight mount angle make installation easy. This connector is shielded for enhanced signal integrity and complies with RoHS regulations. With a current rating of 10A and voltage rating of 250V/300V, it is reliable for power and signal transmission. Designed for 500 mating cycles, it ensures long-lasting performance. The T 3300 004 is the perfect choice for high-quality circular connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
