| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3303 550 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Shielded: | Yes |
| Wire Size: | 28 - 18 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3303 550 |
T 3303 550
Specifications
Detailed Description

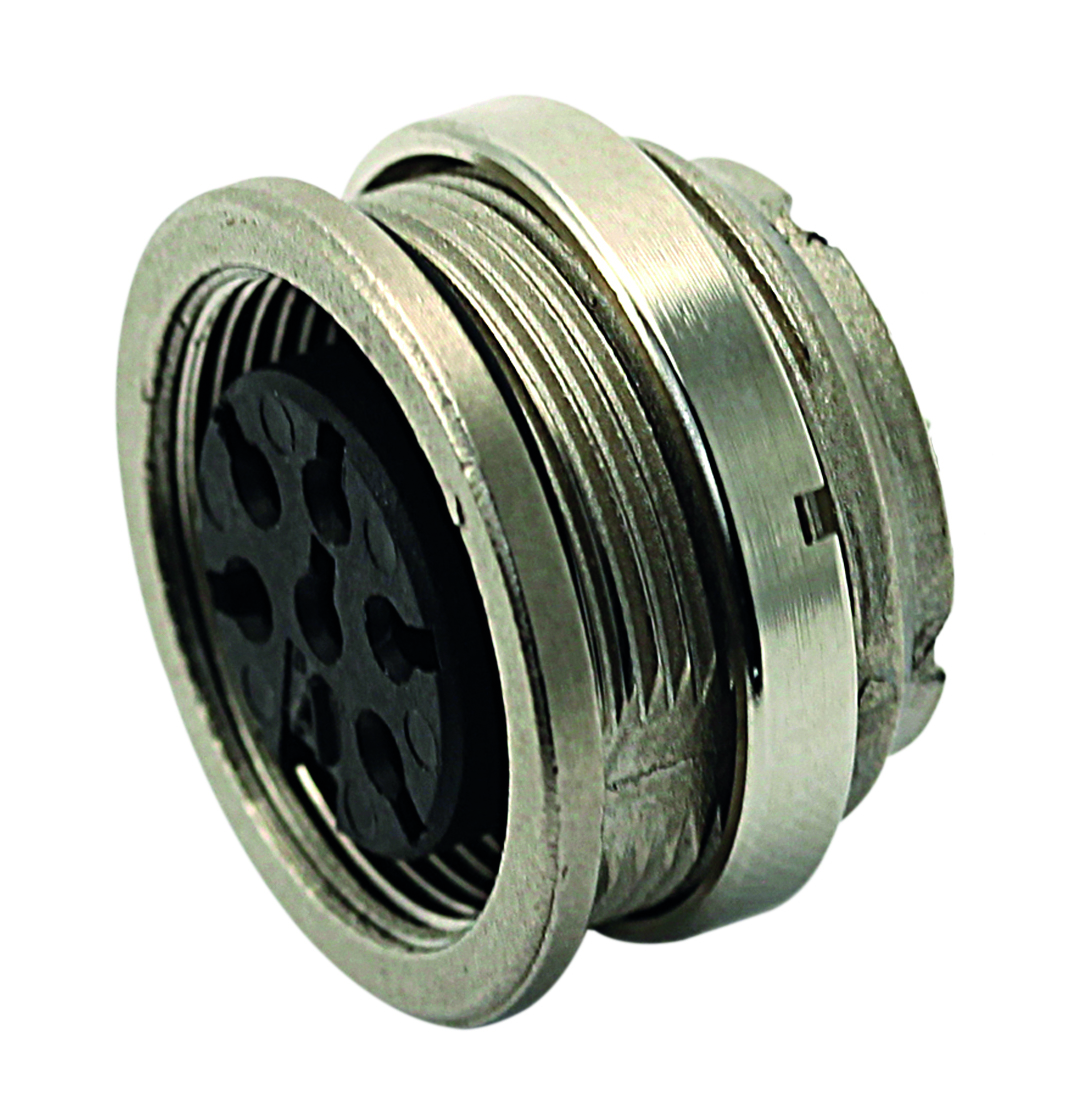

Introducing the T 3303 550, a reliable FRONT MOUNTING FEMALE RECEPTACLE from the C091 M16-A series. This Female connector features a durable Die Cast Zinc housing and is designed for Panel Mount installation. With 4 contacts and Crimp termination method, it ensures secure connections. Operating efficiently in temperatures ranging from -40°C to 100°C, it offers versatile functionality. The IP40 rated, Screw mating type and shielded design guarantee optimal performance. Suitable for wire sizes 28-18 AWG, it has a current rating of 10A and voltage rating of 300V. In compliance with RoHS standards, this connector is an essential component for various applications in the Circular DIN Connectors category.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
