| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3326 550 |
| Gender: | Male |
| IP Rating: | IP40 |
| Wire Size: | 28 - 18 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-B |
| SKU: | AMET 3326 550 |

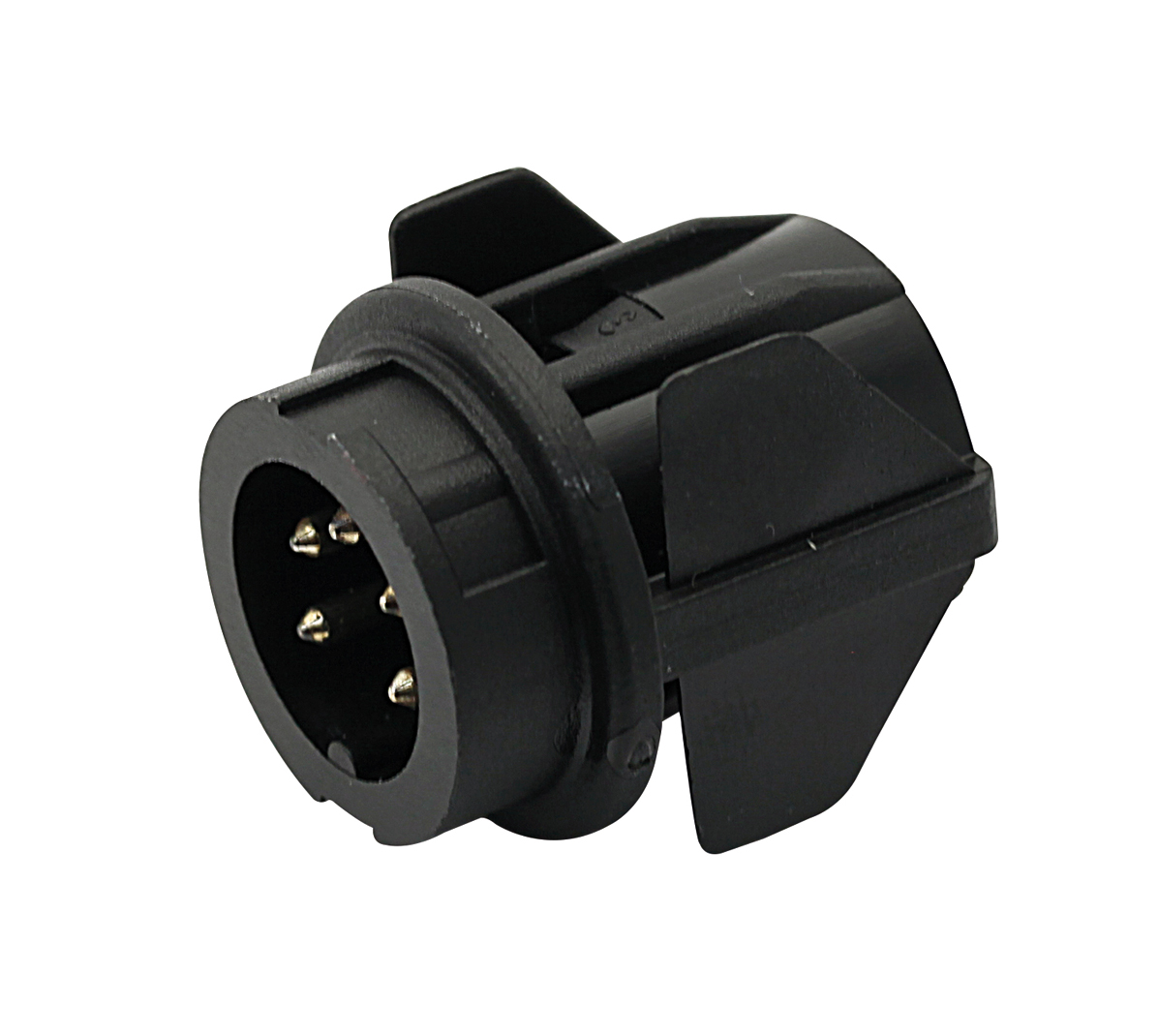

T 3326 550
Specifications
Detailed Description
The T 3326 550 Circular DIN Connector is a robust and reliable solution for your connectivity needs. Featuring a straight, full plastic front with a die-cast zinc housing, this connector is designed for durability in demanding environments. With a panel mount installation and crimp termination method, it offers secure and efficient connectivity. Meeting IP40 standards for ingress protection, it ensures reliable performance even in harsh conditions. The bayonet mating type and straight mount angle further enhance its usability. Suitable for wire sizes ranging from 28 to 18 AWG, it can handle a current rating of 10A and a voltage rating of 300V. Perfect for a variety of applications, this connector is a vital component in your electronic systems.
