| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3327 100 |
| Series: | C091 M16-B |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3327 100 |

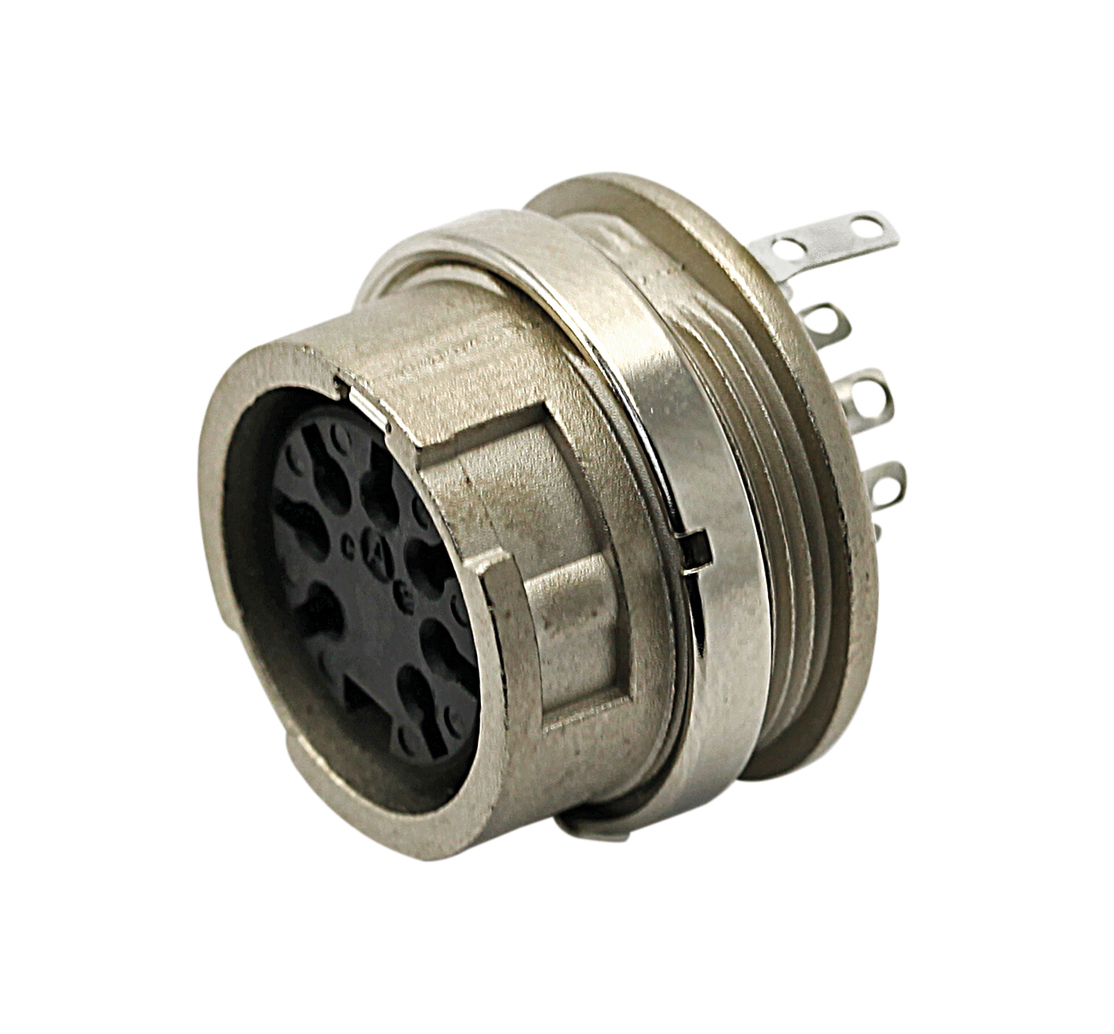

T 3327 100
Specifications
Detailed Description
Introducing the T 3327 100, a reliable rear mounting female metal receptacle from the C091 M16-B series. Featuring a durable die-cast zinc housing, this connector is built to withstand harsh industrial environments. With four contacts and a panel mount design, it ensures secure and stable connections. The solder termination method and silver contact plating guarantee excellent conductivity. Operating efficiently in temperatures ranging from -40°C to 100°C, with an IP40 rating for protection against dust, this connector is suitable for a wide range of applications. The bayonet mating type and straight mount angle make installation quick and easy. With a high mating cycle of 500, it offers long-term durability. Accommodating 20 AWG wire, it has a current rating of 10A and a voltage rating of 300V, making it ideal for power and signal transmission. In the category of Circular Connectors & Accessories, Circular DIN Connectors, and Connectors, this product sets a high standard for performance and reliability. (Note: This product is not hi-rel certified).
