| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3374 005 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3374 005 |
T 3374 005
Specifications
Detailed Description

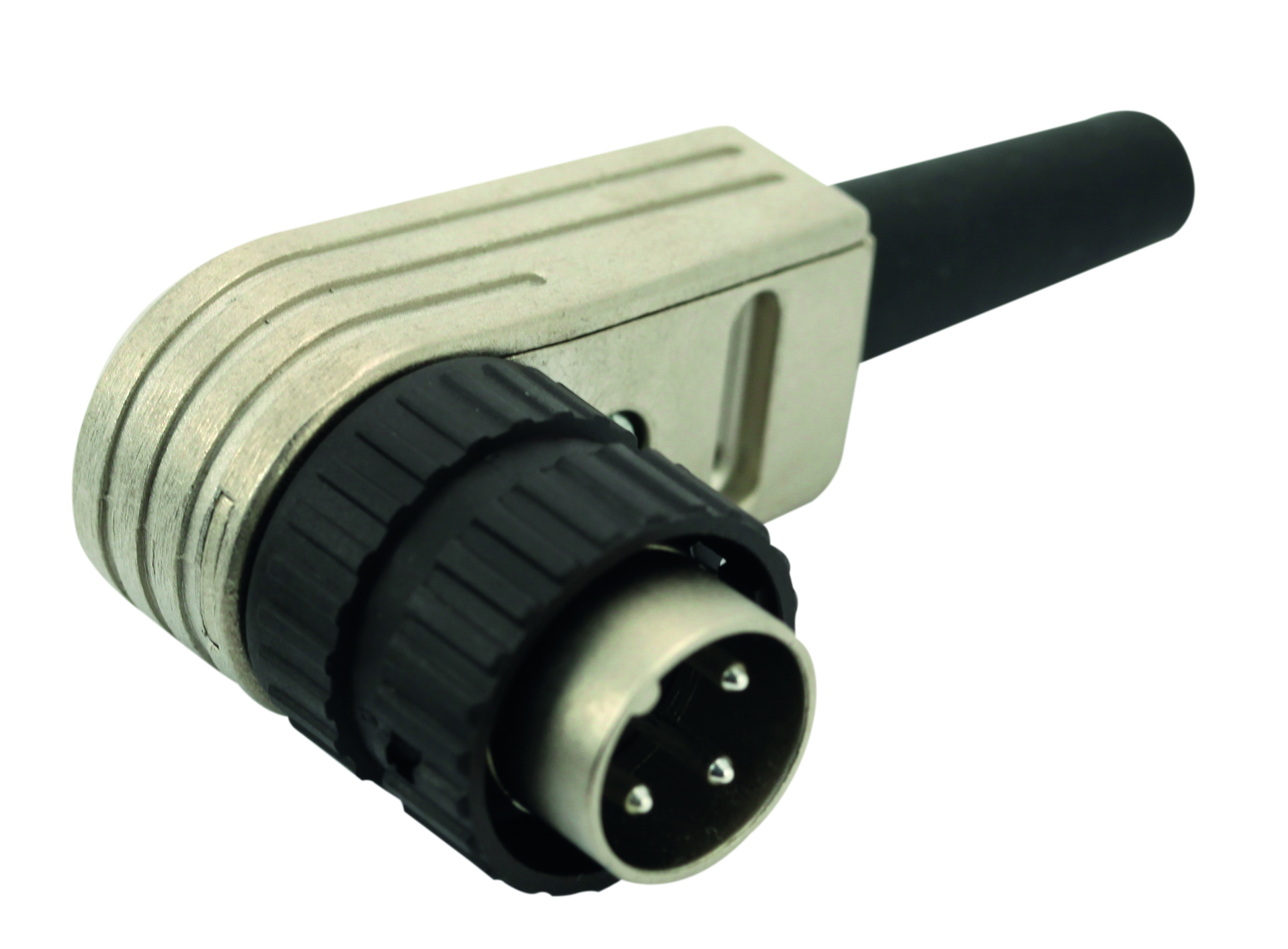

The T 3374 005 Male Cable Connector is a reliable and durable solution for your connectivity needs. Constructed with high-quality Die Cast Zinc housing, this connector ensures robust performance in various environments. Featuring 5 contacts and a cable mount design, it offers secure and stable connections. The solder termination method and silver contact plating guarantee efficient signal transmission. With a wide operating temperature range from -40°C to 100°C and an IP40 rating, it is suitable for both indoor and outdoor applications. The M16 shell size, bayonet mating type, and right-angle mount angle provide versatility in installation. With a mating cycle of 500, this connector is built to last. Rated for 7A at 250V and 300V, it is ideal for power and signal transmission. Whether you're in the industrial, automotive, or aerospace sector, the T 3374 005 is a dependable choice for your circular DIN connector needs.
