| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3377 500 |
| Gender: | Female |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-B |
| SKU: | AMET 3377 500 |
T 3377 500
Specifications
Detailed Description

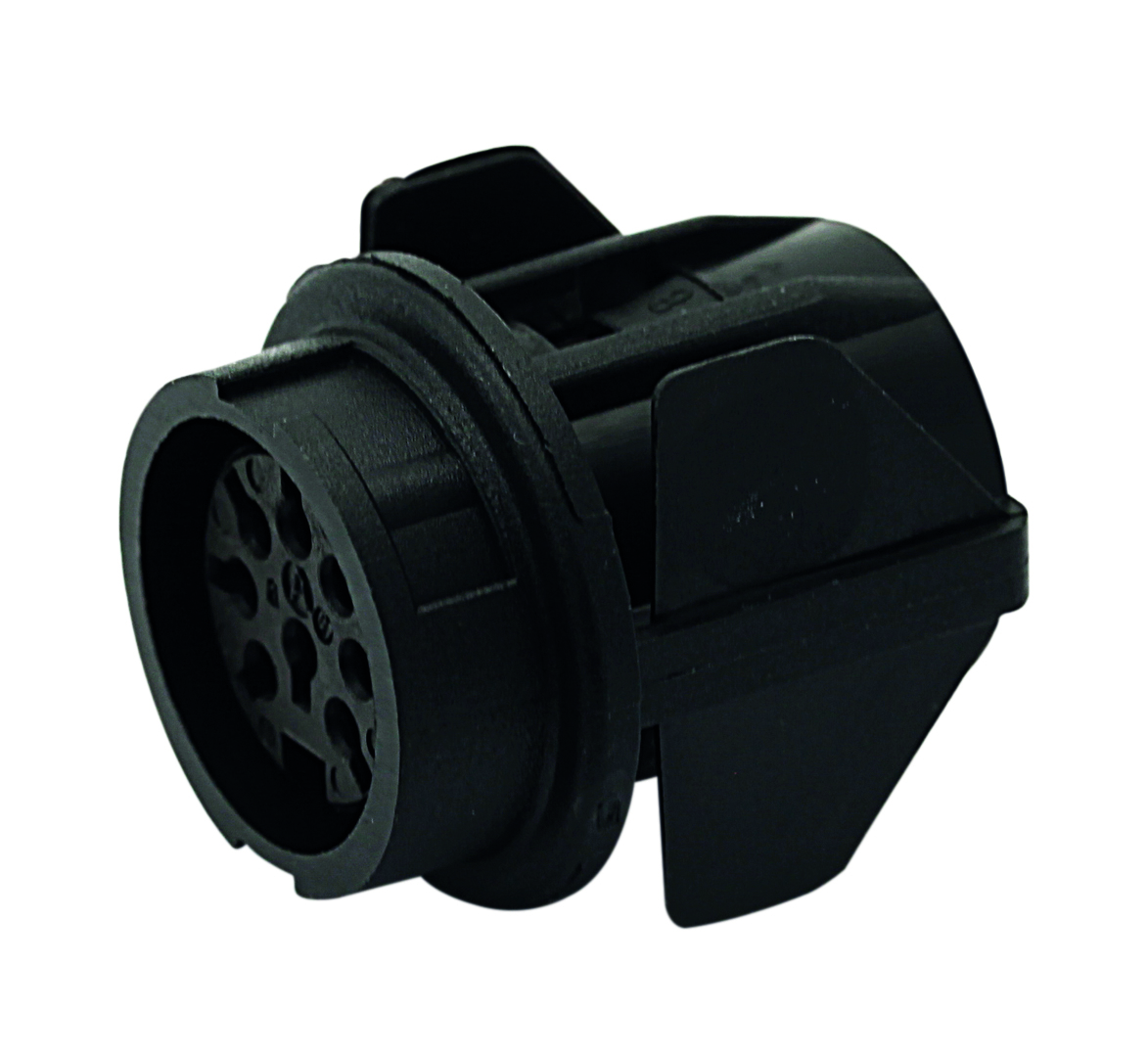

Introducing the T 3377 500 Straight Female Circular DIN Connector, a high-quality component designed for reliable panel mounting applications. Featuring a durable Zinc Die Cast housing with a full plastic front, this connector ensures secure and efficient connectivity. With five silver-plated contacts, it offers excellent conductivity, making it suitable for a wide range of industrial and commercial uses. The bayonet mating type allows for quick and easy installation, while the straight mount angle and solder termination method provide a stable connection. Rated for 7A at 300V, with a wide operating temperature range from -40°C to 100°C, this connector is built to withstand harsh environments. With an IP40 rating and 500 mating cycles, it guarantees long-lasting performance. Perfect for use in hi-rel applications, the T 3377 500 is a reliable choice for your connectivity needs.
