| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3400 004 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3400 004 |

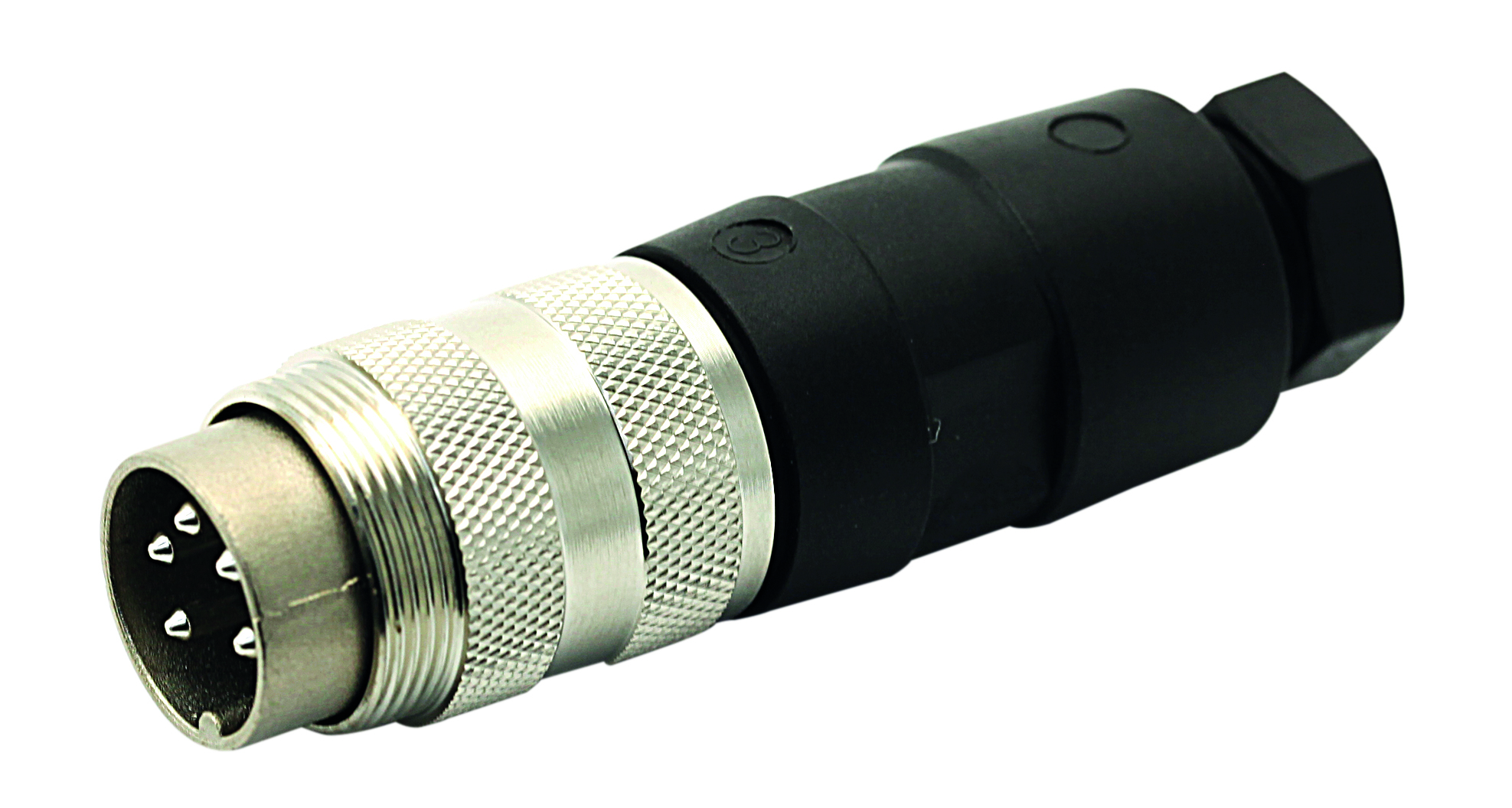

T 3400 004
Specifications
Detailed Description
Introducing the T 3400 004, a rugged and reliable Male Cable Connector designed for demanding industrial applications. This 6-way connector features a sturdy Die Cast Zinc housing, ensuring durability in tough environments. With a straight cable mount and solder termination method, installation is a breeze. The silver-plated contacts provide excellent conductivity, while the IP40 rating guarantees protection against dust. Operating between -40°C to 100°C, this connector is suitable for a wide range of conditions. Meeting RoHS compliance and offering a current rating of 7A at 250V, it prioritizes both performance and environmental responsibility. Perfect for circular DIN connections, the T 3400 004 is a trusted solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
