| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3401 018 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3401 018 |
T 3401 018
Specifications
Detailed Description

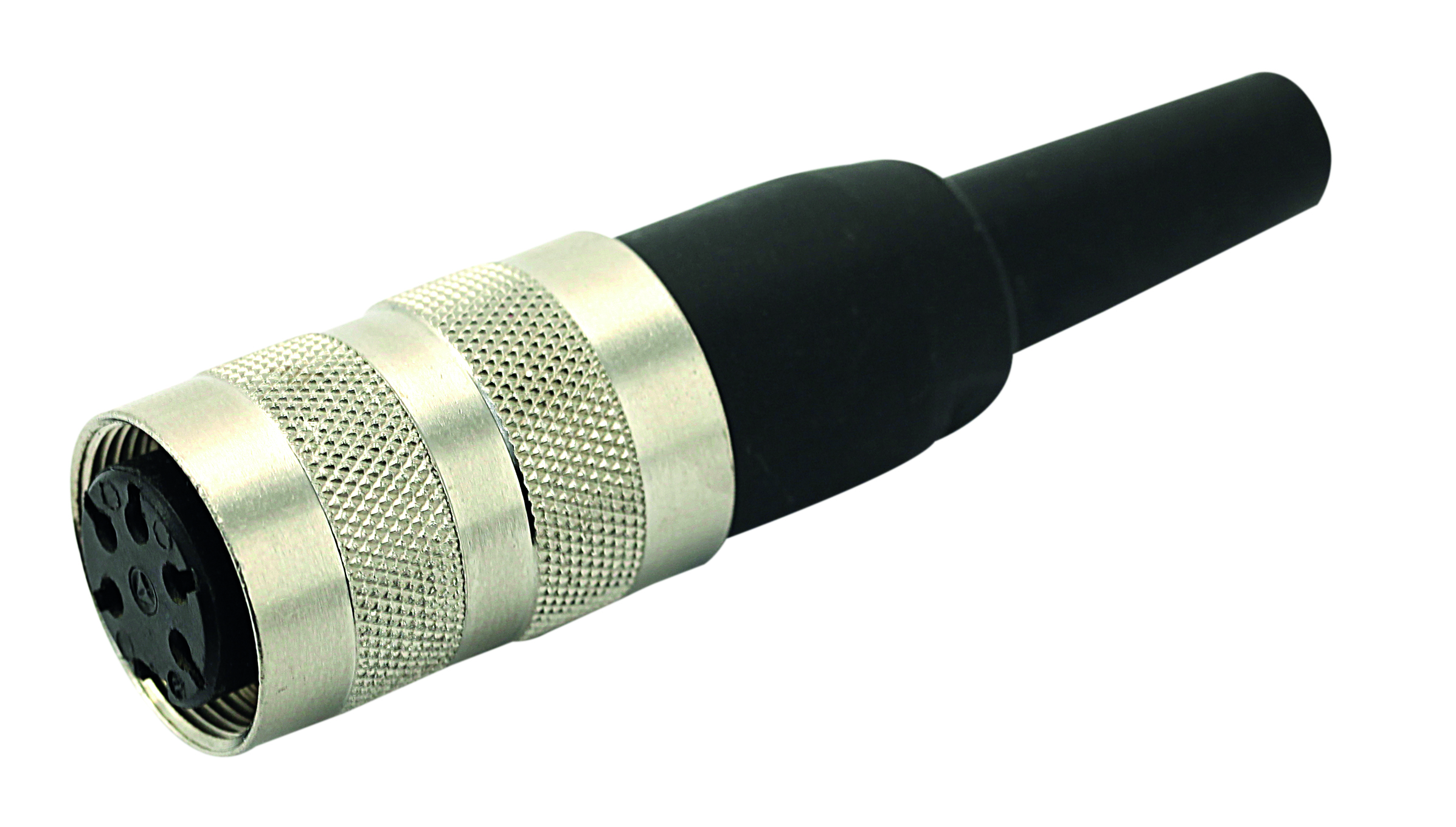

Introducing the T 3401 018, a high-performance Female Cable Connector designed for seamless connectivity in industrial environments. Featuring a robust Die Cast Zinc housing, this connector ensures durability and reliability even in harsh conditions. With 6 gold-plated contacts, it guarantees optimal signal transmission. Suitable for cable mounting with a straight mount angle, it offers easy installation. Rated for a wide temperature range from -40°C to 100°C and boasting an IP40 ingress protection rating, it is perfect for use in diverse applications. The M16 shell size, screw mating type, and shielded design further enhance its versatility. With a 1000-cycle mating durability and a current rating of 7A at 250V/300V, this connector is ideal for demanding industrial settings. Trust the T 3401 018 for secure and efficient connections in your projects.
