| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3437 550 |
| Series: | C091 M16-B |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Wire Size: | 28 - 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3437 550 |

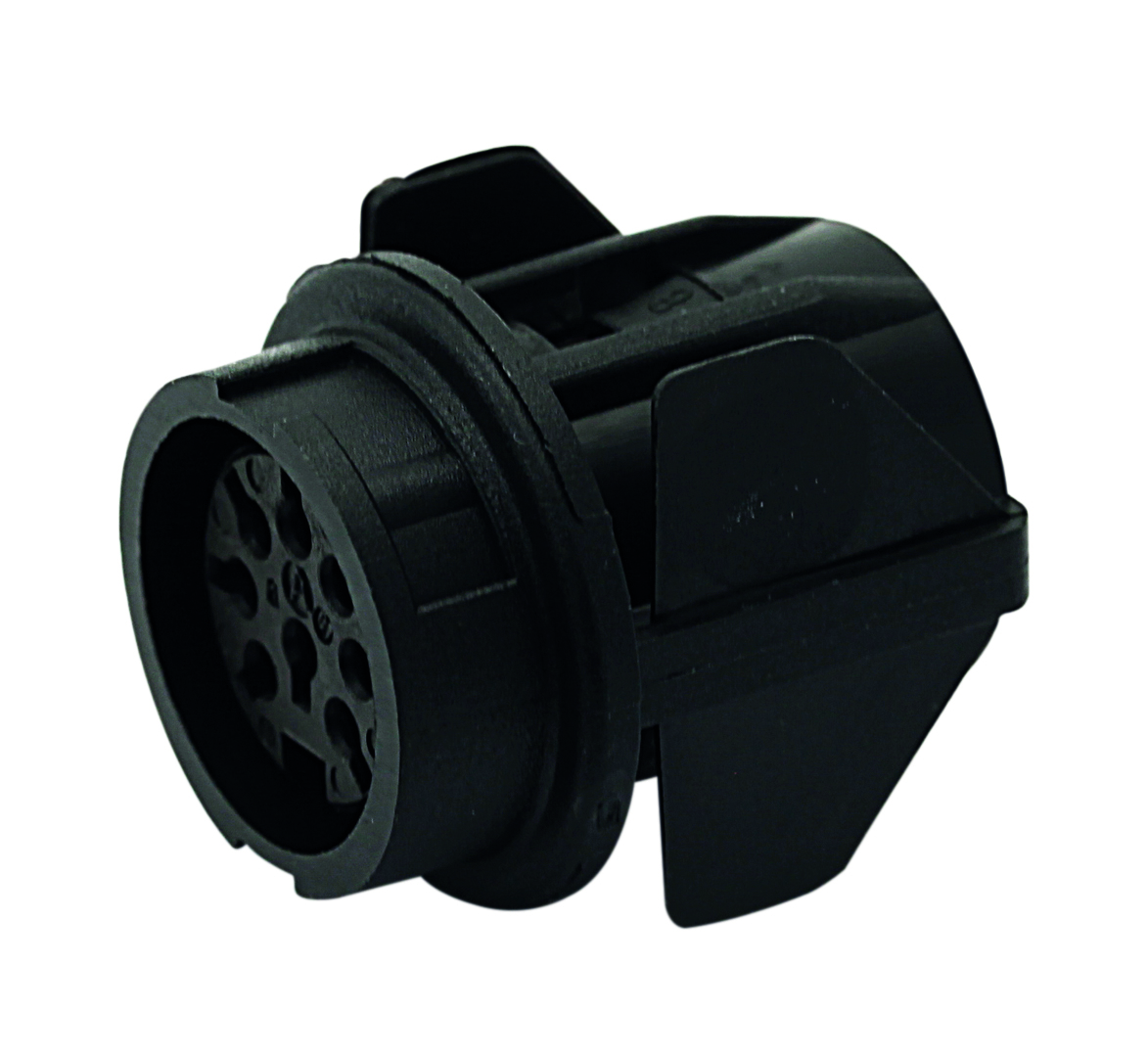

T 3437 550
Specifications
Detailed Description
The T 3437 550 Straight Full Plastic Front M connector, part of the C091 M16-B series, is a high-quality circular DIN connector designed specifically for female gender applications. With a durable die-cast zinc housing, it offers reliable performance in various environments. Featuring seven gold-plated contacts and a panel mount configuration, this connector ensures secure and efficient crimp termination for wires ranging from 28 to 20 AWG. With a maximum operating temperature of 100°C and a minimum of -40°C, it is suitable for a wide range of industrial and commercial applications. The IP40-rated design provides protection against dust and debris, while the bayonet mating type facilitates quick and easy connections. Rated for 7 A and 300 V, this connector meets stringent performance standards. Perfect for use in aerospace, military, and telecommunications sectors, it is a dependable solution for your connectivity needs.
