| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3438 501 |
| Color: | Black |
| Gender: | Female |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3438 501 |

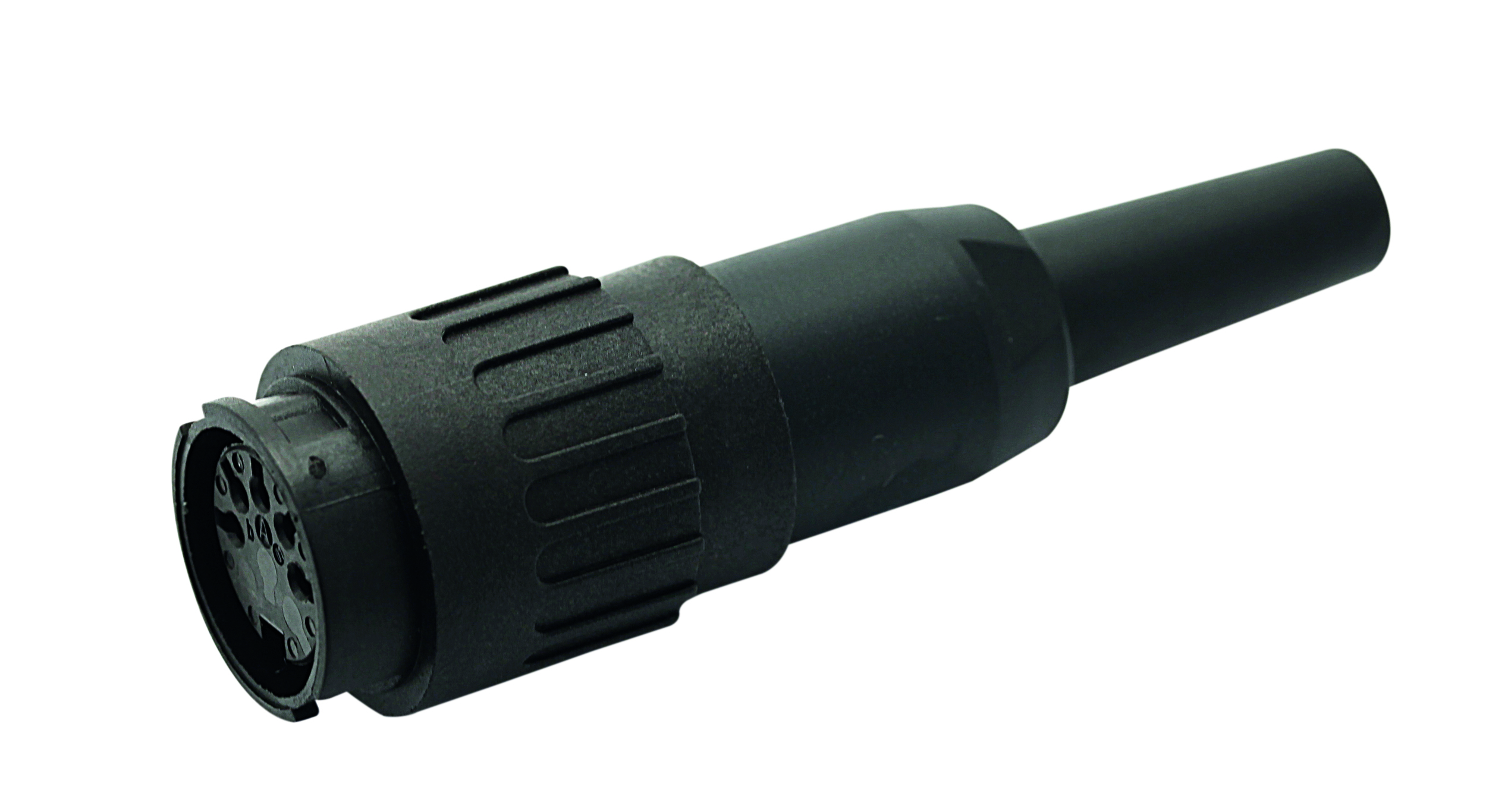

T 3438 501
Specifications
Detailed Description
Introducing the T 3438 501 Female Cable Connector with BL, a durable and high-performance connectivity solution designed for demanding applications. This sleek black connector features a robust die-cast zinc housing, ensuring reliability in harsh environments. With seven contacts and a solder termination method, it provides secure and efficient cable connections. Silver contact plating guarantees excellent conductivity, while a wide operating temperature range from -40°C to 100°C ensures versatility. The IP40 rating offers protection against dust and debris. Its M16 shell size, bayonet mating type, and straight mount angle make installation easy. Rated for 500 mating cycles, this connector is built for long-term use. With a wire size of 20 AWG, current rating of 7A, and voltage rating of 250V/300V, it meets the demands of various industrial applications. In the category of Circular DIN Connectors, the T 3438 501 stands out as a reliable and efficient choice for professionals seeking top-tier connectivity solutions.
