| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3476 004 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3476 004 |
T 3476 004
Specifications
Detailed Description

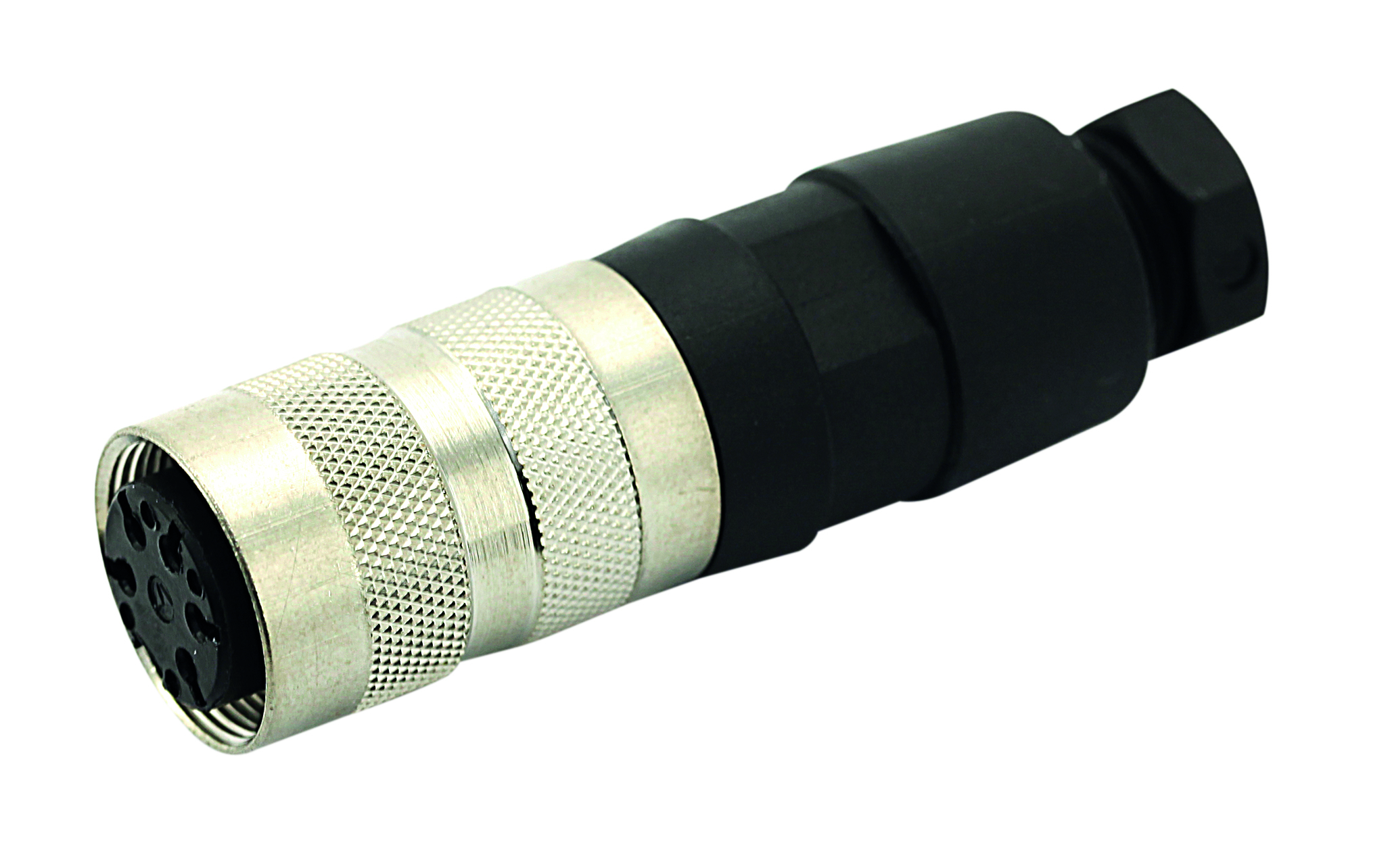

Introducing the T 3476 004 Female Cable Connector, a high-performance connectivity solution designed for demanding industrial applications. Crafted from robust Die Cast Zinc, this connector guarantees durability even in harsh environments. With 7 silver-plated contacts, it ensures reliable signal transmission. The Cable Mount design and straight mount angle make installation a breeze, while the IP40 rating offers protection against dust and debris. Featuring a maximum operating temperature of 100 °C and a minimum of -40 °C, it's suitable for a wide range of operating conditions. With a current rating of 7 A and a voltage rating of 250-300 V, this connector is ideal for power and signal transmission. Whether you're in the aerospace, automotive, or telecommunications industry, the T 3476 004 is the perfect choice for your connectivity needs.
