| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3476 038 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3476 038 |

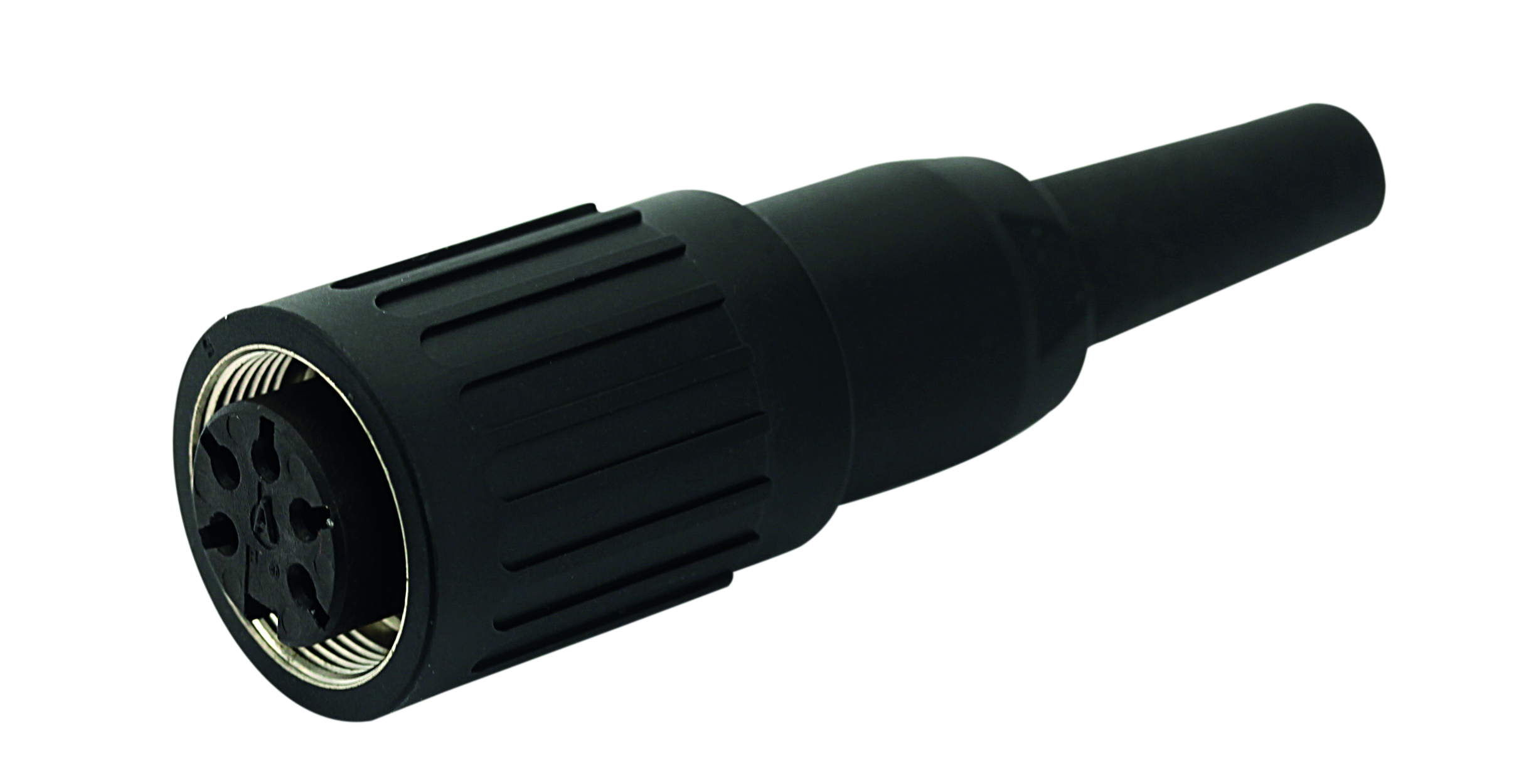

T 3476 038
Specifications
Detailed Description
Introducing the T 3476 038 Female Cable Connector, a reliable and high-performance solution for seamless connectivity. This connector, with its durable Die Cast Zinc housing, is designed for optimal performance in various applications. Featuring 7 gold-plated contacts and a straight cable mount, it ensures secure and efficient solder termination. With a wide operating temperature range of -40°C to 100°C and an IP40 rating, it guarantees reliable performance even in harsh environments. The M16 shell size, screw mating type, and shielded design make it suitable for industrial use. Rated for 7A at 250V and 300V, with a wire size of 20 AWG, this connector is ideal for power and signal transmission. With a mating cycle of 1000, it offers long-lasting durability. Trust in the T 3476 038 for your circular DIN connector needs.
