T 3527 100

AMET_3527_100
Heilind Number:AMET 3527 100
Manufacturer:Amphenol Sine Systems
Manufacturer Number:T 3527 100
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

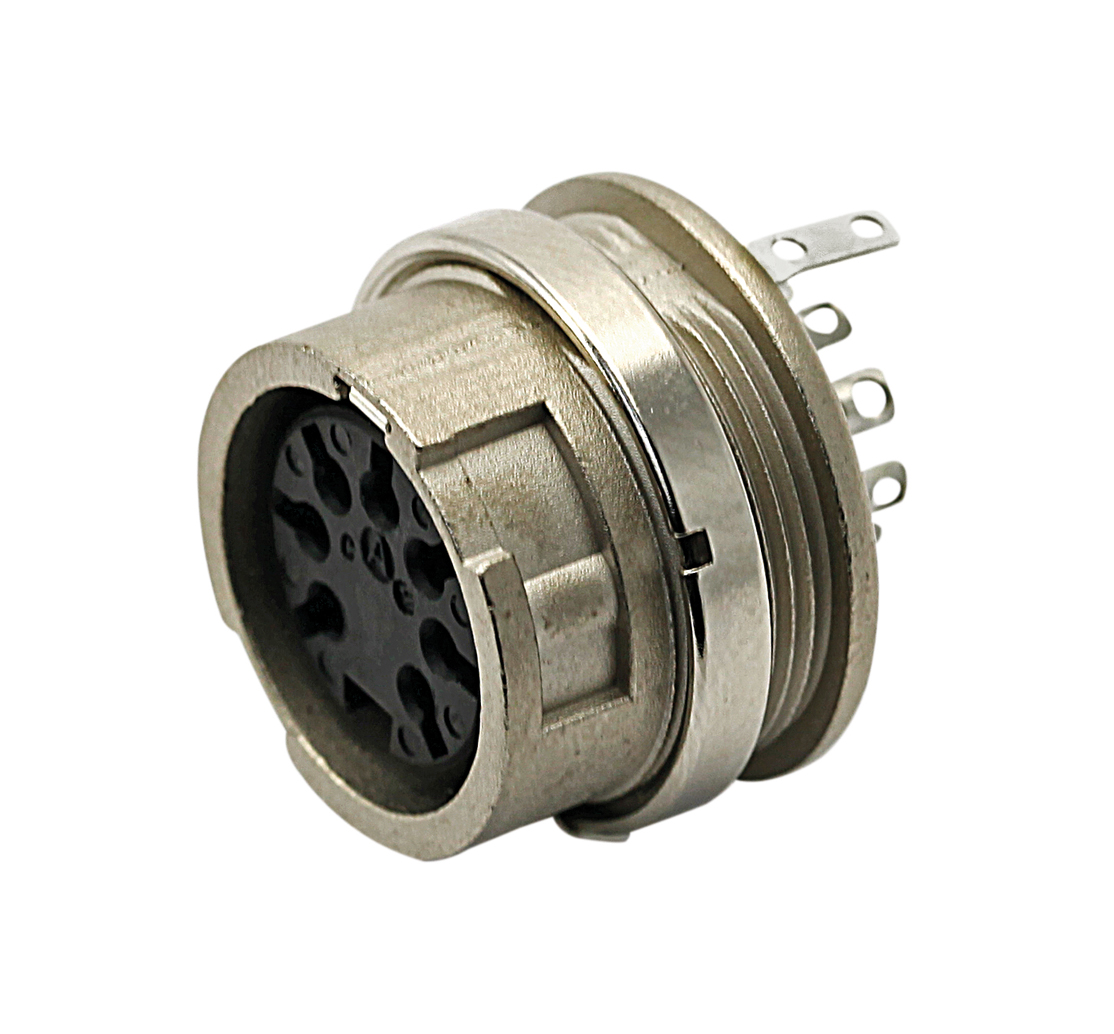

FEMALE RECEPTACLE 8WAY C091B

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular DIN Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems T 3527 100
Series:C091 M16-B
Gender:Female
Housing Material:Zinc Die Cast
Number of Contacts:8
Mount Type:Panel Mount
Termination Method:Solder
Contact Plating:Silver
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP40
Mating Type:Bayonet
Mount Angle:Straight
Mating Cycles:500 cycle
Wire Size:20 AWG
Current Rating:7 A
Voltage Rating:100 V
SKU:AMET 3527 100

Detailed Description

Introducing the T 3527 100, a high-performance Female Receptacle designed for seamless connectivity in demanding environments. Part of the C091 M16-B series, this connector features a robust Zinc Die Cast housing and offers 8 gold-plated contacts for reliable signal transmission. With a panel mount design and solder termination method, installation is quick and secure. Operating effortlessly in temperatures ranging from -40°C to 100°C, and boasting an IP40 rating for dust protection, this connector is built to endure harsh conditions. Its bayonet mating type and straight mount angle ensure easy and efficient connections. With a lifespan of 500 mating cycles, it guarantees long-term functionality. Rated for 7A at 100V, it's suitable for a wide range of applications. RoHS compliant and with a wire size compatibility of 20 AWG, it meets industry standards for environmental responsibility and performance. Perfect for use in Circular DIN Connectors, this female receptacle is a top choice for professionals seeking durability and reliability in their connectivity solutions.
