| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3529 504 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMET 3529 504 |
T 3529 504
Specifications
Detailed Description

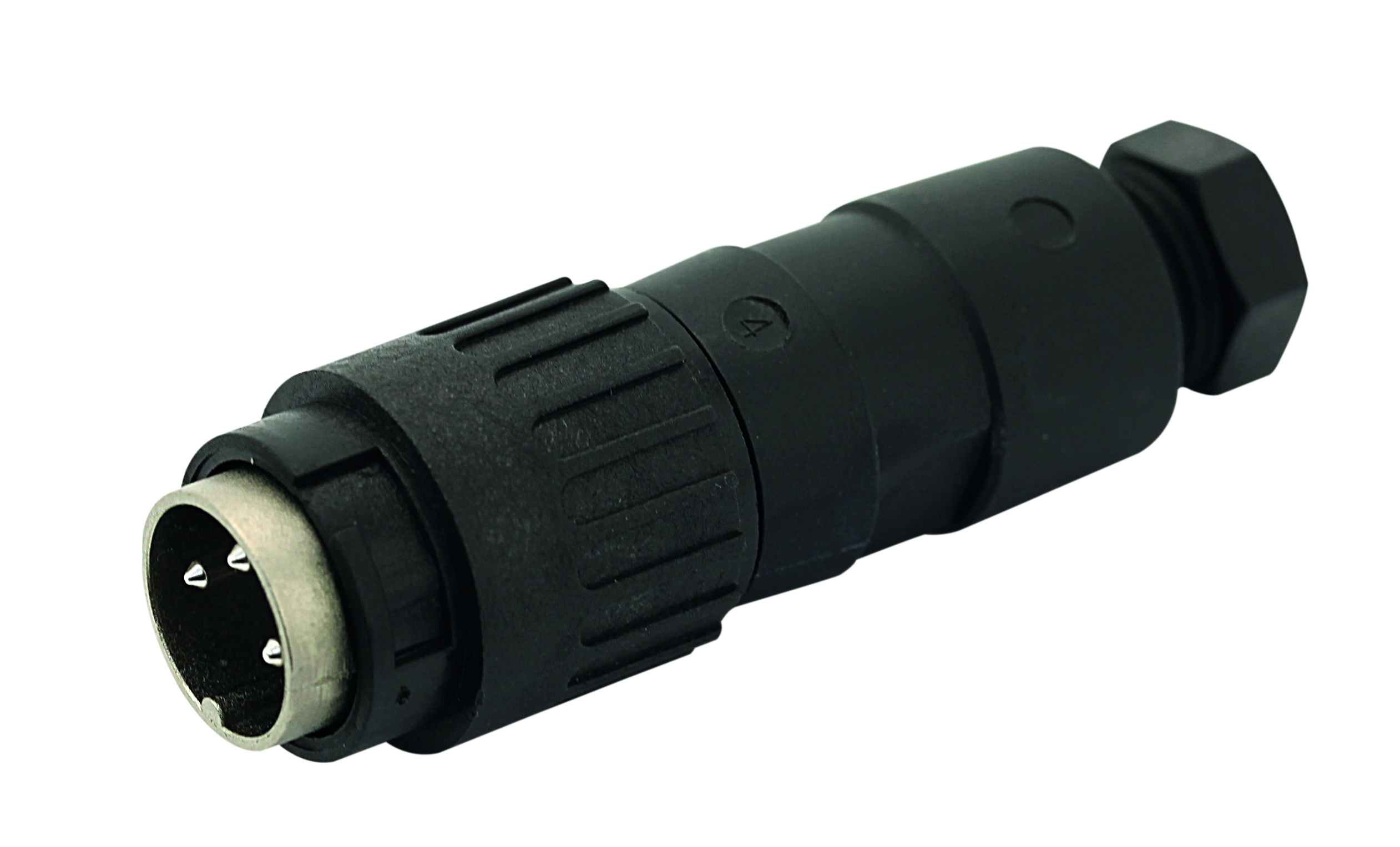

The T 3529 504 Male Cable Connector with Integrated Die Cast Zinc Housing is a high-performance solution for secure and efficient cable connections. Featuring 8 contacts and a straight cable mount design, this connector ensures reliable signal transmission. With solder termination and silver contact plating, it guarantees high conductivity and durability even in demanding environments. Operating within a temperature range of -40°C to 100°C and boasting an IP40 rating, it offers exceptional resilience. The M16 shell size and bayonet mating type enable quick and easy installation. With a maximum current rating of 7A and voltage ratings of 100V and 250V, it is suitable for various applications. This connector, part of the Circular DIN Connectors category, is ideal for professionals looking for top-quality connectivity solutions.
