| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3635 004 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 12 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMET 3635 004 |

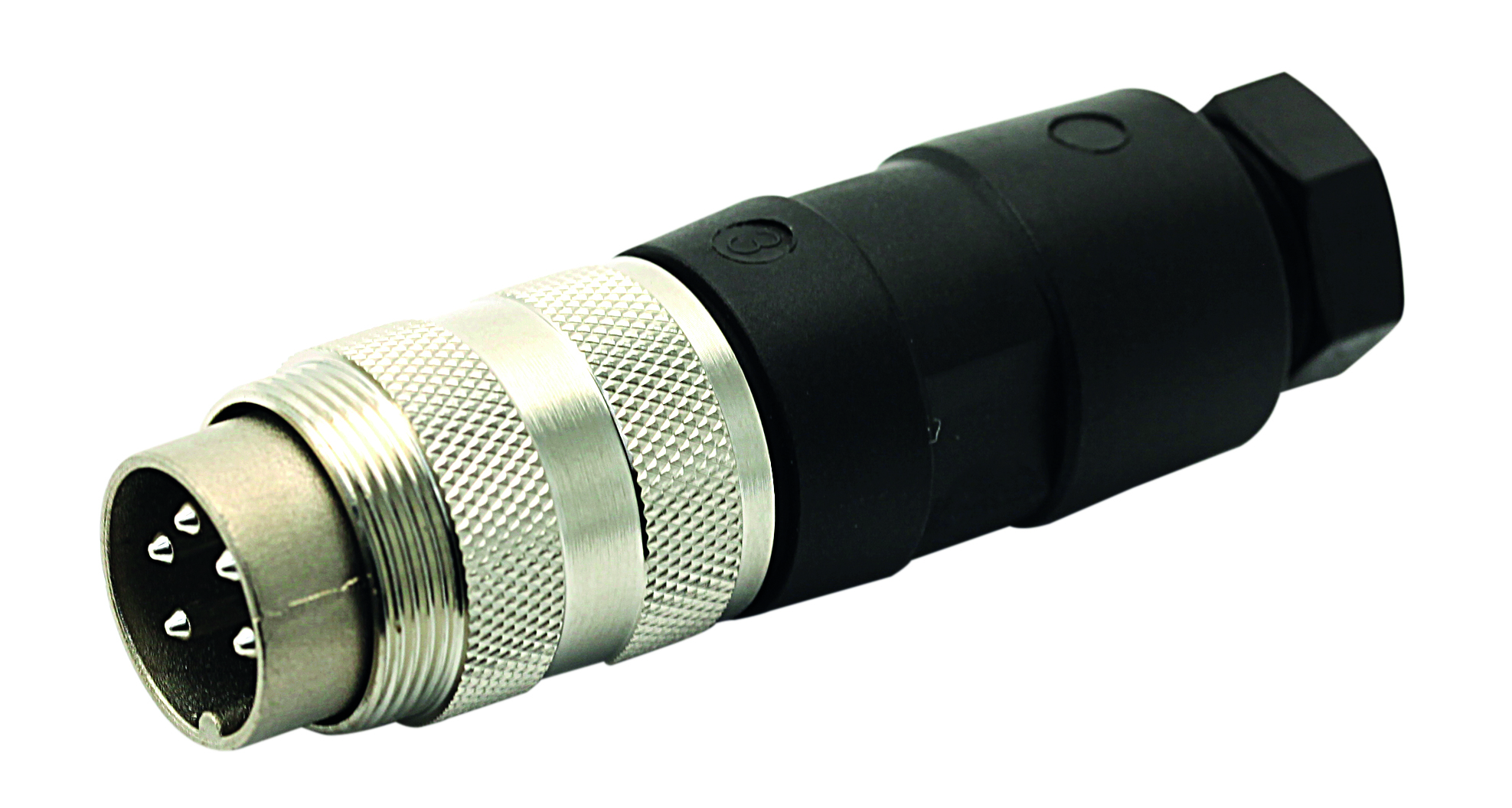

T 3635 004
Specifications
Detailed Description
Introducing the T 3635 004 Male Cable Connector, a robust and reliable solution for your connectivity needs. Crafted with high-quality Die Cast Zinc housing material, this connector ensures durability in various environments. Featuring 12 gold-plated contacts and a solder termination method, it guarantees excellent signal transmission. With a wide operating temperature range of -40°C to 100°C and an IP40 rating, it can withstand harsh conditions. The M16 shell size, screw mating type, and straight mount angle make installation easy and secure. Shielded for added protection, this connector is ideal for 24 AWG wires, offering a current rating of 3A and voltage rating of 150V (60V). Whether in industrial, automotive, or aerospace applications, the T 3635 004 is a dependable choice for circular DIN connectors.
