| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3649 501 |
| Gender: | Male |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3649 501 |

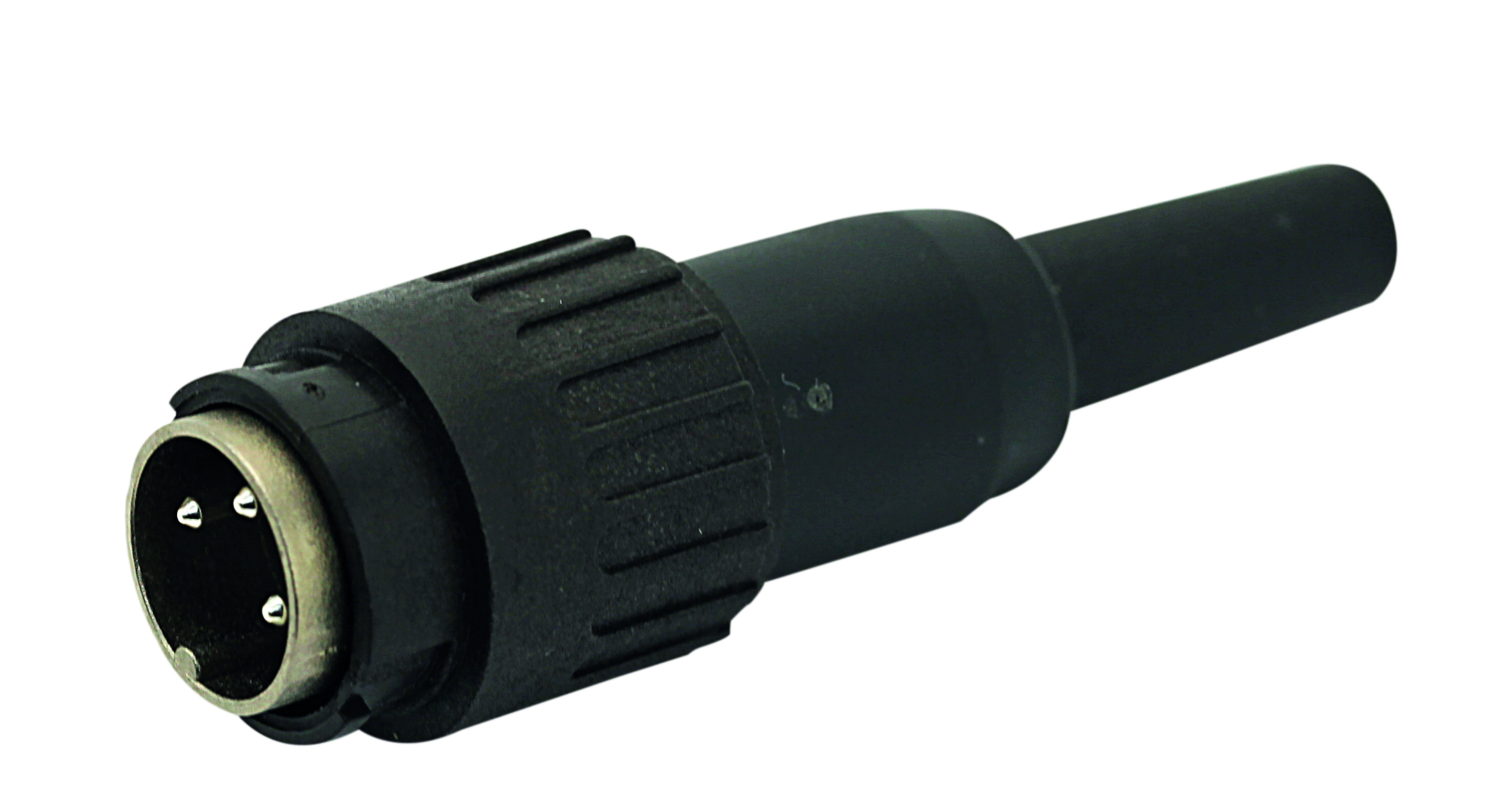

T 3649 501
Specifications
Detailed Description
Introducing the T 3649 501 Male Cable Connector, a reliable and durable solution for your connectivity needs. Crafted with precision, this connector features a robust Die Cast Zinc housing, ensuring long-lasting performance in various environments. With 14 contacts and a straight mount type, it offers seamless integration into your systems. The termination method of solder and silver contact plating guarantee secure connections. Operating efficiently in temperatures ranging from -40°C to 100°C, and with an IP40 rating, it is suitable for a wide range of applications. Designed for convenience, the M16 shell size and bayonet mating type facilitate easy installation. With a 500-cycle mating lifespan, this connector is built to withstand frequent use. Meeting current and voltage ratings of 3A, 150V, and 60V, along with accommodating 24 AWG wire size, it ensures reliable power transmission. Ideal for Circular DIN connectors, this product is a crucial component for your connectivity infrastructure.
