T 3651 001

AMET_3651_001
Heilind Number:AMET 3651 001
Manufacturer:Amphenol Sine Systems
Manufacturer Number:T 3651 001
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

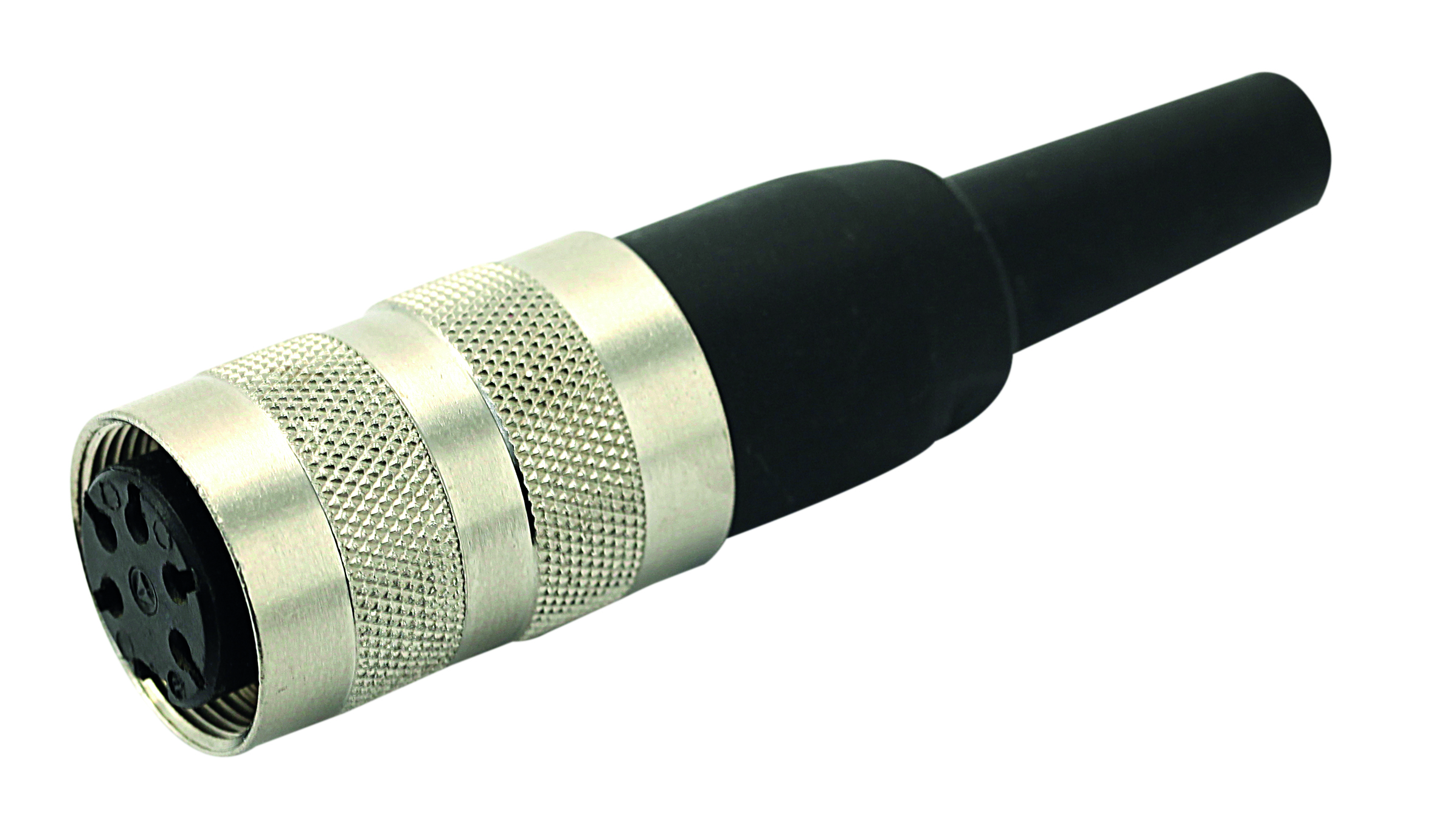

FEMALE CABLE CONNECTOR 14 C091A

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular DIN Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems T 3651 001
Gender:Female
Shielded:Yes
IP Rating:IP40
Wire Size:24 AWG
Mount Type:Cable Mount
Shell Size:M16
Mating Type:Screw
Mount Angle:Straight
Mating Cycles:500 cycle
Current Rating:3 A
Voltage Rating:150 V, 60 V
Contact Plating:Silver
Housing Material:Die-Cast Zinc
Number of Contacts:14
Termination Method:Solder
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-40 °C
SKU:AMET 3651 001

Detailed Description

Introducing the FEMALE CABLE CONNECTOR 14 C091A ( T 3651 001), a high-performance connectivity solution designed for seamless integration in demanding environments. Crafted with precision using Die Cast Zinc housing material, this connector ensures durability and reliable performance. Featuring 14 contacts and a cable mount design, it facilitates secure and efficient connections. The solder termination method with silver contact plating guarantees excellent conductivity. With a wide operating temperature range from -40°C to 100°C and an IP40 rating, it offers versatility for various applications. The M16 shell size, screw mating type, and straight mount angle make installation hassle-free. Rated for 500 mating cycles, this connector is built to last. Shielded for improved signal integrity, it accommodates 24 AWG wire size and offers a current rating of 3A. With a voltage rating of 150V and 60V, it meets the requirements of diverse electrical systems. While not RoHS compliant, it adheres to strict quality standards. Ideal for use in Circular DIN connectors, this product is a valuable addition to any connectivity project.
