| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3651 002 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 24 AWG |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V, 60 V |
| SKU: | AMET 3651 002 |

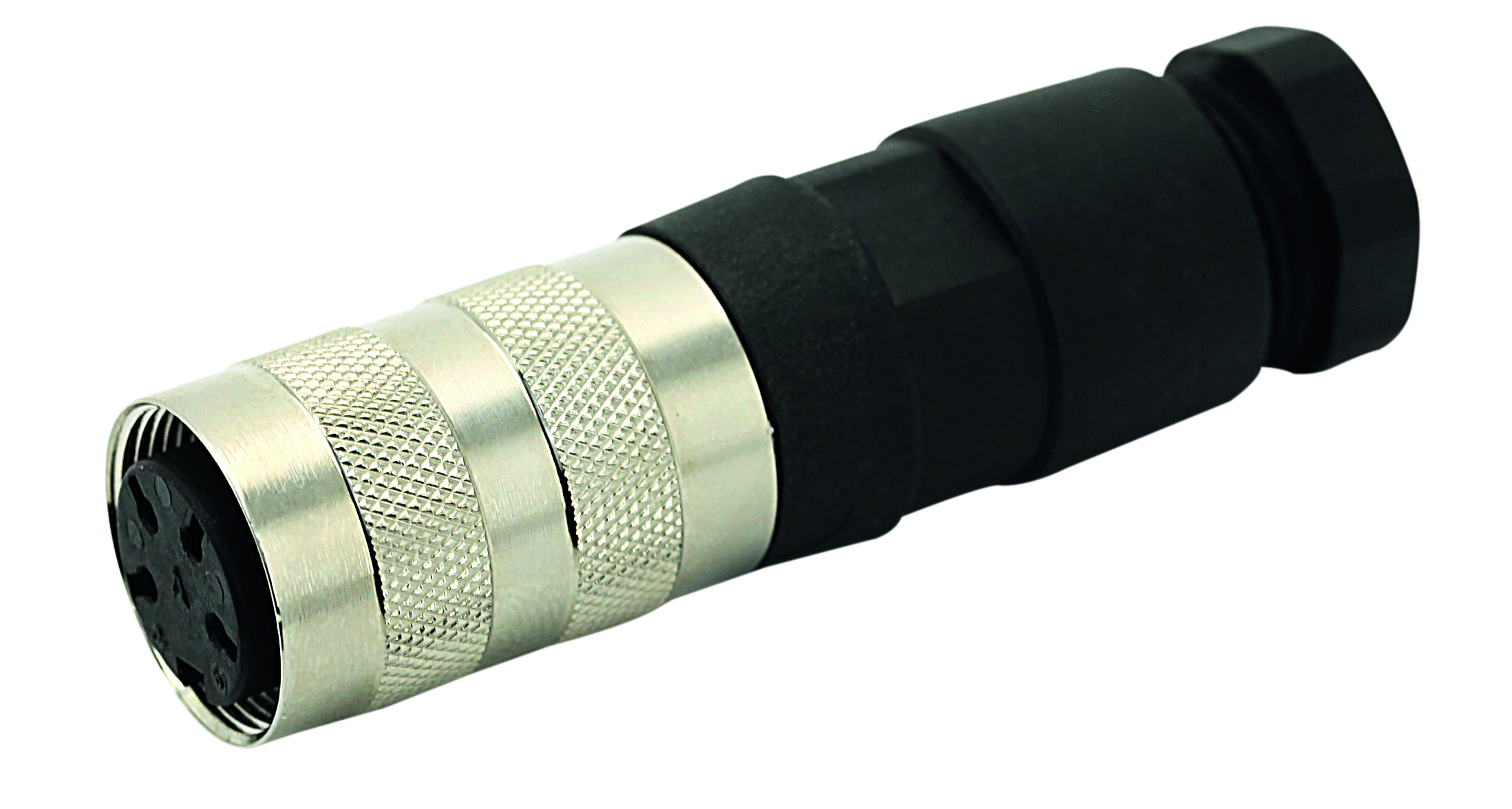

T 3651 002
Specifications
Detailed Description
Introducing the T 3651 002, a high-performance Female Cable Connector designed for robust connectivity in industrial environments. Crafted from durable Die Cast Zinc, this connector ensures reliable signal transmission with its 14 gold-plated contacts. Suitable for Cable Mount installation, it guarantees secure and efficient solder termination. With a wide operating temperature range from -40°C to 100°C and an IP40 rating, it withstands harsh conditions with ease. The M16 shell size, Screw mating type, and straight mount angle offer versatility in deployment. Shielded for added protection, it accommodates 24 AWG wire size and supports a current rating of 3A at 150V/60V. Ideal for Circular DIN applications, this connector with SKU T3651002 is your go-to solution for demanding connectivity needs.
