1-144547-0

AMP1-144547-0
Heilind Number:AMP1-144547-0
Manufacturer:TE Connectivity
Manufacturer Number:1-144547-0
Datasheet:Drawing
ECAD Model:
3D Model

Description:

PL MIC4 ETAN 4 NOR

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-144547-0
Gender:Housing for male terminals
Number of Rows:1
Pitch:.197 in, 5 mm
Polarization:Yes
Body Material:Polyamide
Number of Positions:4
GPL:N99
Packaging:Box
Operating Temperature Range:-40 - 100 °C, -40 - 212 °F
Circuit Application:Signal
Sealable:Yes
GPL Description:Automotive
Product Code:M058
Connector System:Wire to Wire
Length:1.17 in
Cable Exit Angle:180°
Height:15.2 mm, .598 in
Width:1.27 in, 32.3 mm
Mating Tab Width:.11 in, 2.8 mm
Nominal Voltage Architecture:12 V
Body Color:Black
Serviceable:Yes
Mounting Feature:Without
Terminal Position Assurance:No
Connector Position Assurance Capable:No
Hybrid Connector :No
Primary Locking Feature:On the Terminal
Material Flammability Standard:UL 94-HB
Part Aliases:1-144547-0
SKU:AMP1-144547-0

Detailed Description

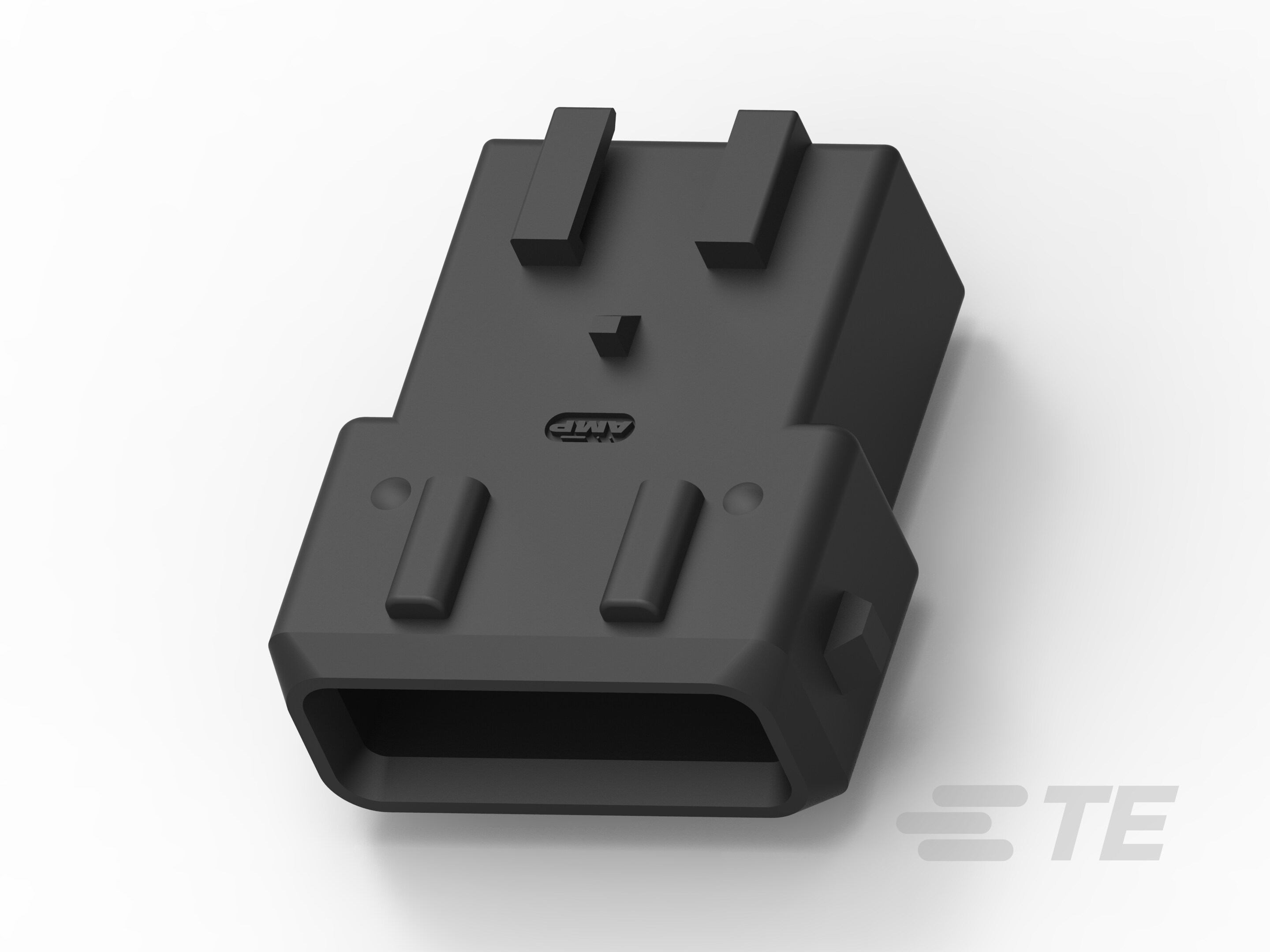

Enhance signal connectivity in automotive applications with this 4-position male terminal housing. Featuring a 5mm pitch and polyamide construction, it offers durability and reliability in extreme temperatures ranging from -40 to 100°C (-40 to 212°F). Designed for wire-to-wire connection, it ensures secure mating with a 180° cable exit angle. The black housing with a height of 15.2mm and width of 32.3mm is both functional and visually appealing. With UL 94-HB flammability standard compliance and RoHS certification, it meets stringent safety regulations. Perfect for automotive circuit applications, this connector is serviceable and sealable, making it ideal for use in various environments.
