1-1740533-6

AMP1-1740533-6
Heilind Number:AMP1-1740533-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1740533-6
Datasheet:Drawing
ECAD Model:
3D Model

Description:

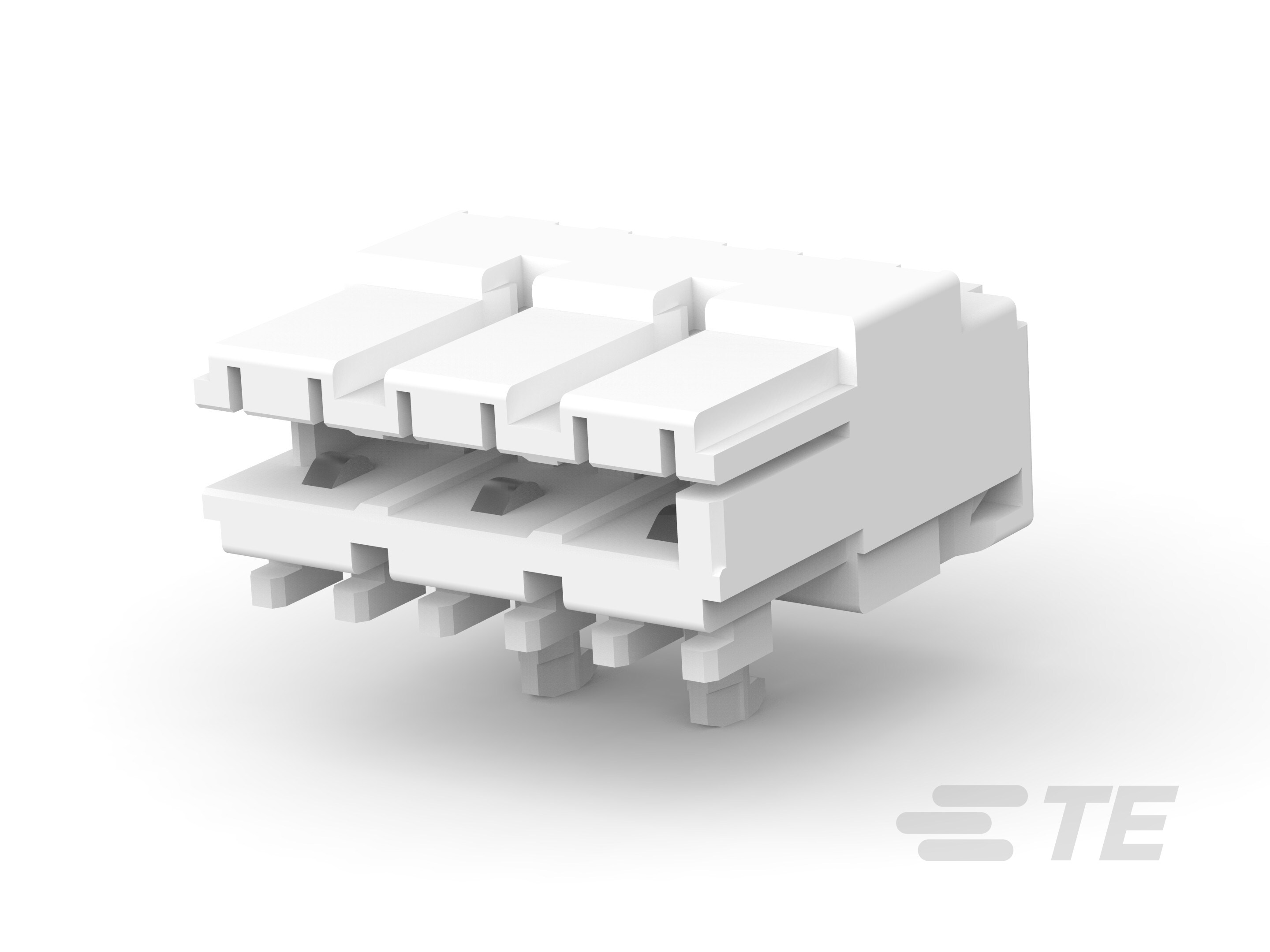

AMP DUOPLUG POW CONNECTOR

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Card Edge Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1740533-6
Amperage:6 A
Housing Material:PA 6 GF
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC)
Contact Material:CuNiSi
Pitch:.197 in, 5 mm
Voltage:250 V
Contact Type:Socket
Package Quantity:1232
Number of Positions:6
Housing Color:Natural
Mount Orientation:Right Angle
GPL:394
Packaging:Tray
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:3 - 6 µm
Panel Mount:Without
PCB Retention:Without
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.059 in, 1.5 mm
Connector Height:.287 in, 7.3 mm
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:G566
Wire Size:18 - 22 AWG, .35 - .75 mm²
Connector System:Wire to Board
ECCN:EAR99
Connector Contact Load Condition:Fully Loaded
Mating Retention:Without
PCB Mount Alignment:With
Card Entry Location:Side
Accepts Wire Insulation Diameter:.087 in, 2.2 mm
Housing Configuration:One End Open
Contact Retention:With
Compatible Wire / Cable Type:Discrete Wire
Contact Retention Type in Housing:Locking Lance
Keying Between:2&3
Connector and Housing Type:Receptacle
Material Flammability Standard:UL 94V-0
Part Aliases:1-1740533-6
SKU:AMP1-1740533-6

Detailed Description

Enhance power connectivity with the AMP DUOPLUG POWER CONNECTOR. Designed for seamless integration, this connector boasts a durable housing made of PA 6 GF, ensuring reliability in various applications. With a 6A amperage and 250V voltage rating, it delivers efficient performance. Featuring insulation displacement crimp (IDC) termination, it offers easy and secure wire connections. The connector's socket contact type, with CuNiSi contact material plated with tin, guarantees optimal conductivity. With UL 94V-0 flammability standard compliance and an operating temperature range of -40 to 110°C (-40 to 230°F), it prioritizes safety and durability. Perfect for power circuit applications, this connector is a vital component in any setup, ensuring seamless and reliable power transmission.
