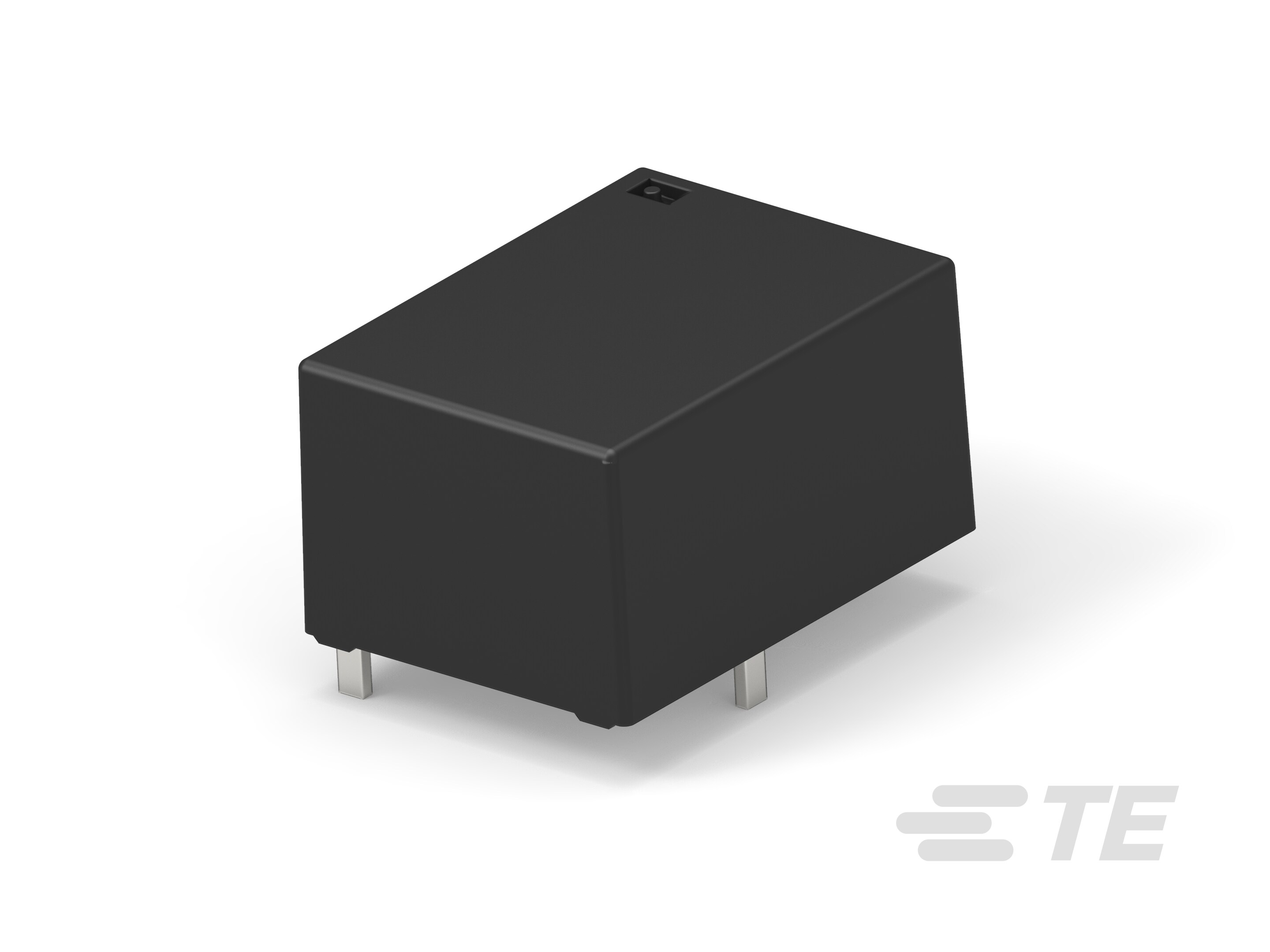

1558665-4

product logo
Heilind Number:AMP1558665-4
Manufacturer:TE Connectivity
Manufacturer Number:1558665-4
Datasheet:Agency Approval Document (UL)
ECAD Model:
3D Model

Description:

T9GS5L14-15

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1558665-4
Amperage:20 A
Mount Type:Printed Circuit Board
Contact Material:Silver Tin Oxide (AgSnO)
Number of Poles:1
Coil Resistance:249 Ω
Coil Voltage:15 VDC
Maximum Switching Voltage:480 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:250 VAC
Operating Temperature Range:-40 - 105 °C
Contact Arrangement:1 Form C (CO)
SKU:AMP1558665-4

Detailed Description

Enhance your circuit board with the T9GS5L14-15 power relay, featuring a durable silver tin oxide contact material for reliable performance. This single-pole relay operates at a maximum amperage of 20 A, with a coil voltage of 15 VDC for efficient power control. Designed for HVAC systems, it offers a contact arrangement of 1 Form C (CO) and a maximum switching voltage of 480 VAC. With RoHS compliance and a wide operating temperature range of -40 to 105°C, this relay ensures both environmental responsibility and versatility in various applications. Upgrade your relay system with this high-quality component for optimal performance.
