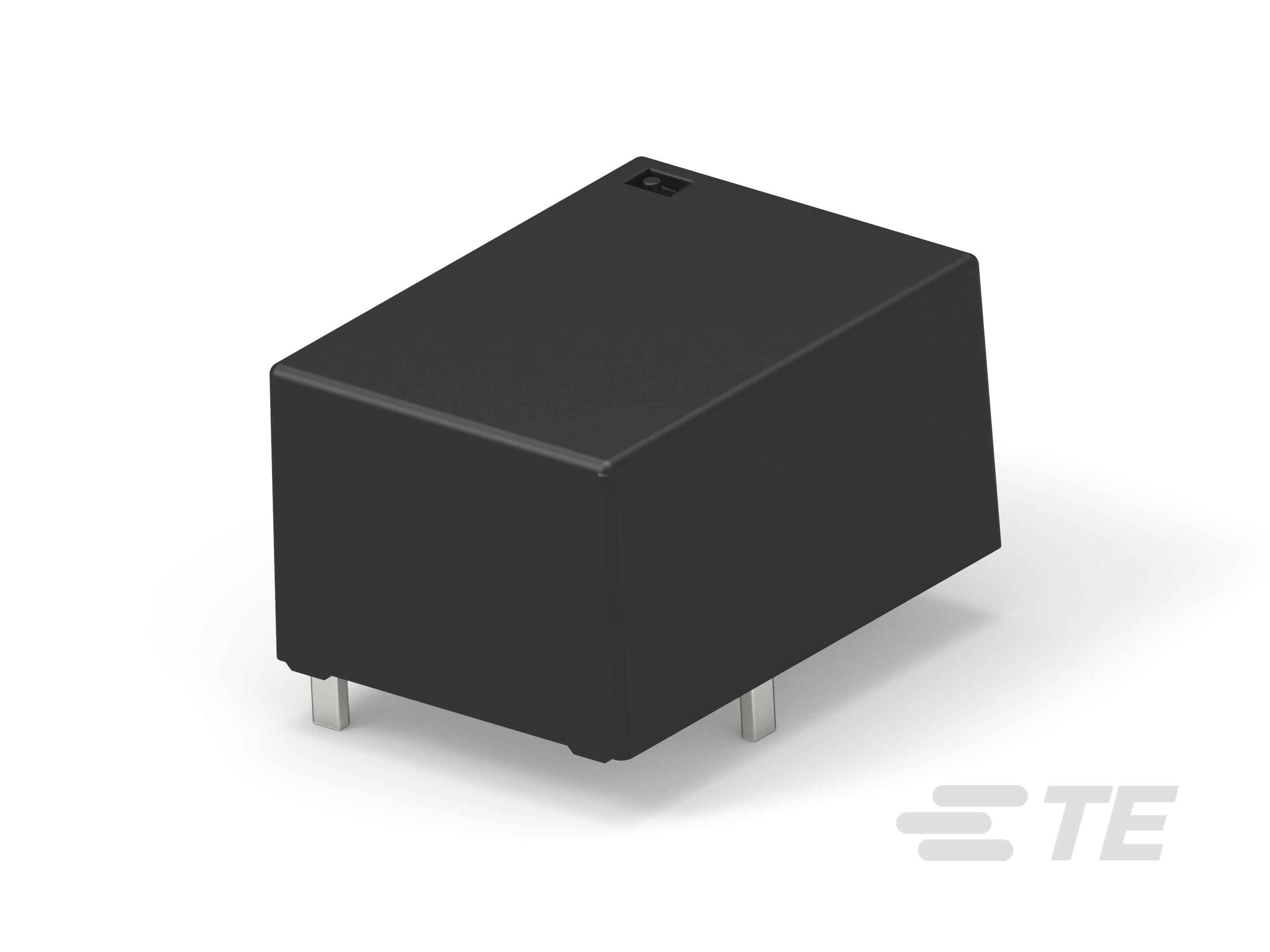

1558667-6

product logo
Heilind Number:AMP1558667-6
Manufacturer:TE Connectivity
Manufacturer Number:1558667-6
Datasheet:Agency Approval Document (CQC)
ECAD Model:
3D Model

Description:

T9GS2L14-22

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1558667-6
Amperage:20 A
Mount Type:Printed Circuit Board
Contact Material:Silver Tin Oxide (AgSnO)
Number of Poles:1
Coil Resistance:538 Ω
Coil Voltage:22 VDC
Maximum Switching Voltage:480 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:250 VAC
Operating Temperature Range:-40 - 105 °C
Contact Arrangement:1 Form B (NC)
SKU:AMP1558667-6

Detailed Description

Illuminate your circuitry with the T9GS2L14-22 Power Relay, a high-performance component designed for seamless integration onto printed circuit boards. With an amperage of 20 A and contact material featuring Silver Tin Oxide (AgSnO), this relay ensures reliable conductivity. Operating at a coil voltage of 22 VDC, it offers a maximum switching voltage of 480 VAC, making it ideal for high-power applications. The 1 Form B (NC) contact arrangement and termination type via Printed Circuit Terminals provide efficient connectivity. RoHS compliant and boasting a wide operating temperature range of -40 to 105 °C, this relay is perfect for a range of industries, from HVAC systems to general electronics. Trust in its quality and performance for your relay needs.
