| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617124-5 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 1560 Ω |
| Coil Voltage: | 26.5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M39016/15-039P |
| SKU: | AMP1617124-5 |
1617124-5
| Heilind Number: | AMP1617124-5 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617124-5 |
| ECAD Model: | |
Specifications
Detailed Description

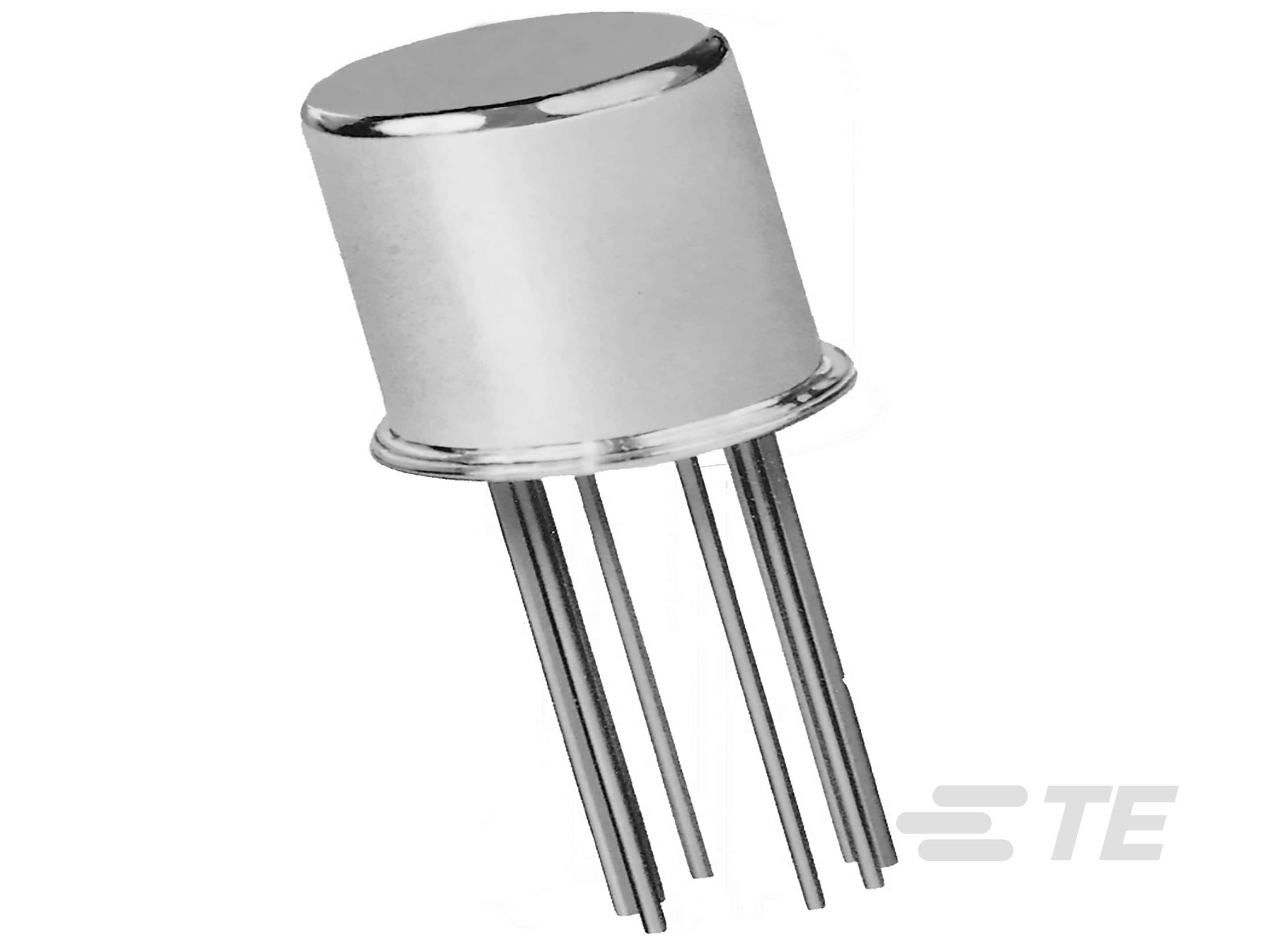

Introducing the JMAPD-26XP, a high-performance signal relay designed for printed circuit board mounting. With a coil resistance of 1560 Ω and a coil voltage of 26.5 VDC, this relay offers reliable operation in a variety of applications. Featuring a contact configuration of 2 Form C (DPDT, 2 C/O), it provides versatile switching capabilities. The maximum switching voltage of 28 VDC ensures efficient performance. Termination is achieved through PC Pin(s), and the contact current rating is 1 A. While not RoHS compliant, this relay meets stringent quality standards. Also known as the M39016/15-039P, it belongs to the Products, Relays, Signal & Communication Relays category, making it a valuable component for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617124-5 |
| Other Names: | M39016/15-039P |
