1617138-1

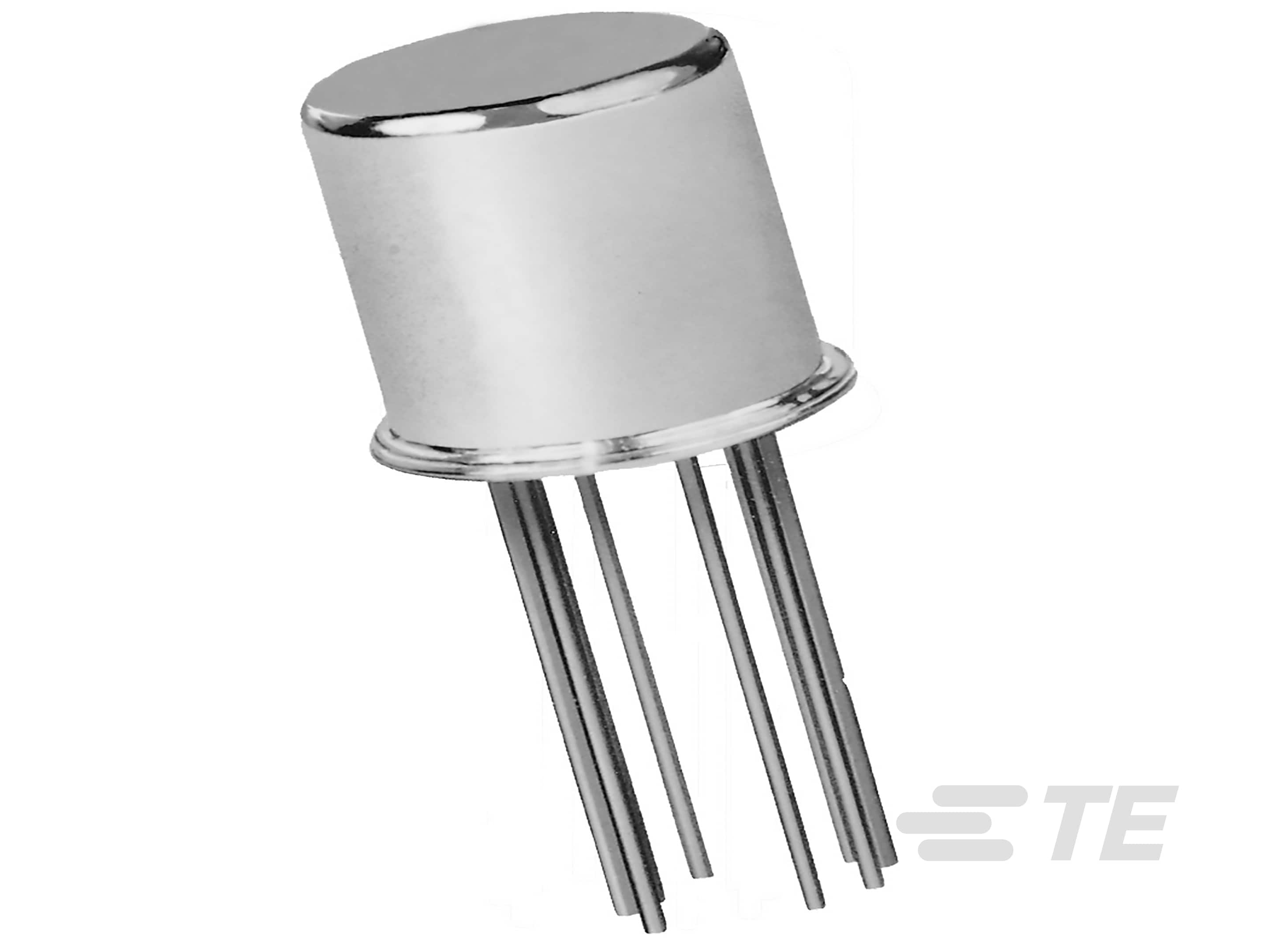

AMP1617138_1
Heilind Number:AMP1617138-1
Manufacturer:TE Connectivity
Manufacturer Number:1617138-1
ECAD Model:
3D Model

Description:

MAW-12S = MA TO-5 RELAY

More >>

Specifications

AttributeValue
Product Category:
Relays Signal & Communication Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1617138-1
Mount Type:Printed Circuit Board
Coil Resistance:390 Ω
Coil Voltage:12 VDC
Contact Configuration:2 Form C, DPDT, 2 C/O
Maximum Switching Voltage:28 VDC
Termination Type:Long Leads
Contact Current Rating:1 A
SKU:AMP1617138-1

Detailed Description

Introducing the MAW-12S, a versatile TO-5 relay designed for efficient signal and communication applications. With a coil resistance of 390 Ω and operating at 12 VDC, this relay offers reliable performance on printed circuit boards. Featuring a 2 Form C contact configuration, it provides a DPDT setup with 2 C/O contacts, allowing for seamless switching between circuits. The MAW-12S can handle a maximum switching voltage of 28 VDC and a contact current rating of 1 A, ensuring optimal functionality. Its long lead termination type simplifies installation, making it a convenient choice for various electronic projects. Please note, this product is not RoHS compliant. Elevate your relay solutions with the MAW-12S.
