| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617164-4 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 1560 Ω |
| Coil Voltage: | 26.5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/1-036M |
| SKU: | AMP1617164-4 |
1617164-4
| Heilind Number: | AMP1617164-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617164-4 |
| ECAD Model: | |
Specifications
Detailed Description

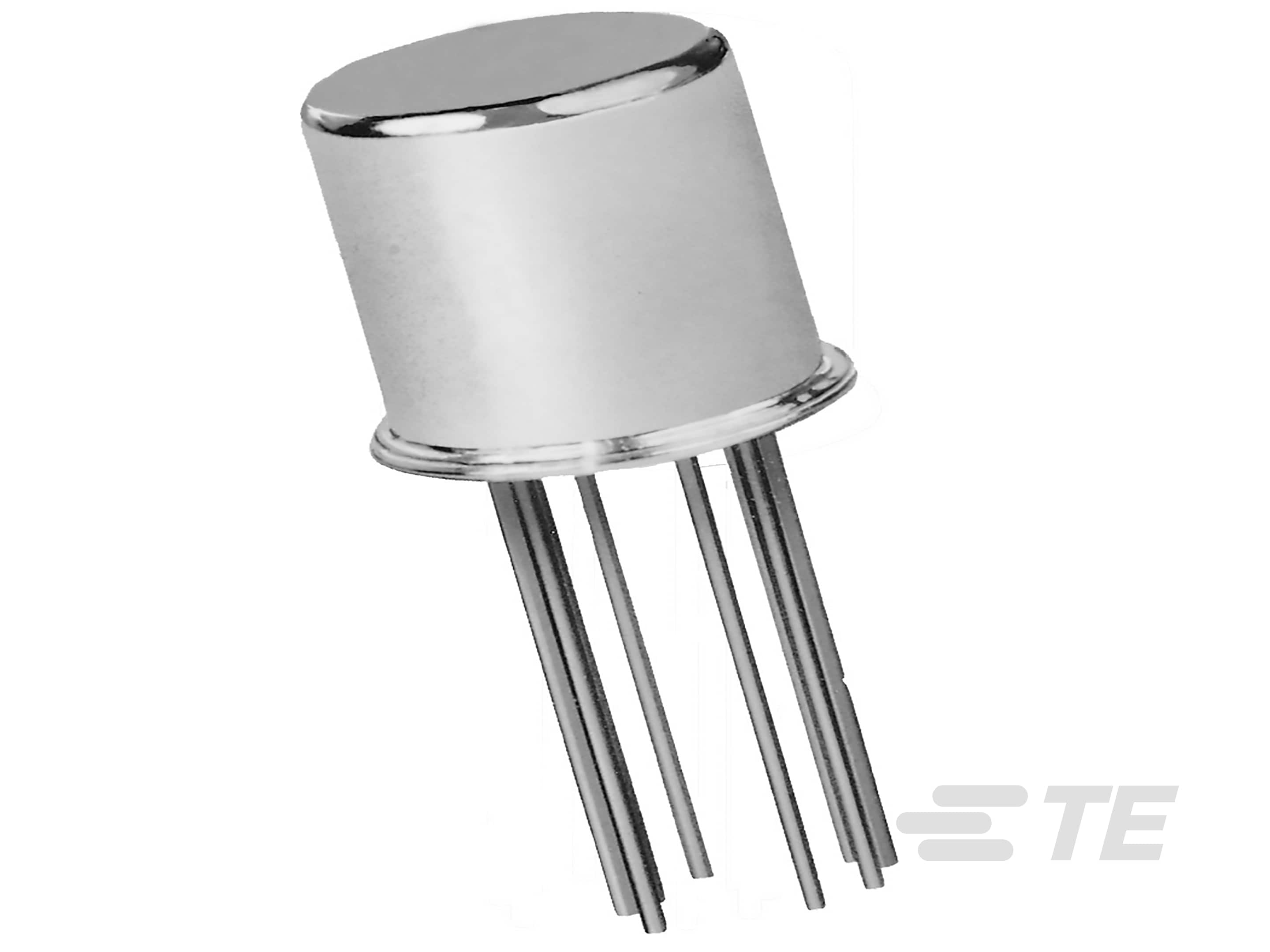

Elevate your circuit board assembly with the JMACT-26XMS Relay, also known as M28776/1-036M. This high-performance component boasts a coil resistance of 1560 Ω and operates at a coil voltage of 26.5 VDC, ensuring reliable signal and communication relay functionality. With a contact configuration of 2 Form C DPDT and a termination type of PC Pin(s), it offers seamless integration into your system. The contact current rating of 1 A and maximum switching voltage of 28 VDC guarantee robust performance in demanding applications. While not RoHS compliant, this relay delivers exceptional quality and efficiency, making it an essential component in the Products, Relays, Signal & Communication Relays category. Trust in the JMACT-26XMS for superior signal relay solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617164-4 |
| Other Names: | M28776/1-036M |
