| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617166-7 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 50 Ω |
| Coil Voltage: | 5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Long Leads |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/1-013L |
| SKU: | AMP1617166-7 |
1617166-7
| Heilind Number: | AMP1617166-7 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617166-7 |
| ECAD Model: | |
Specifications
Detailed Description

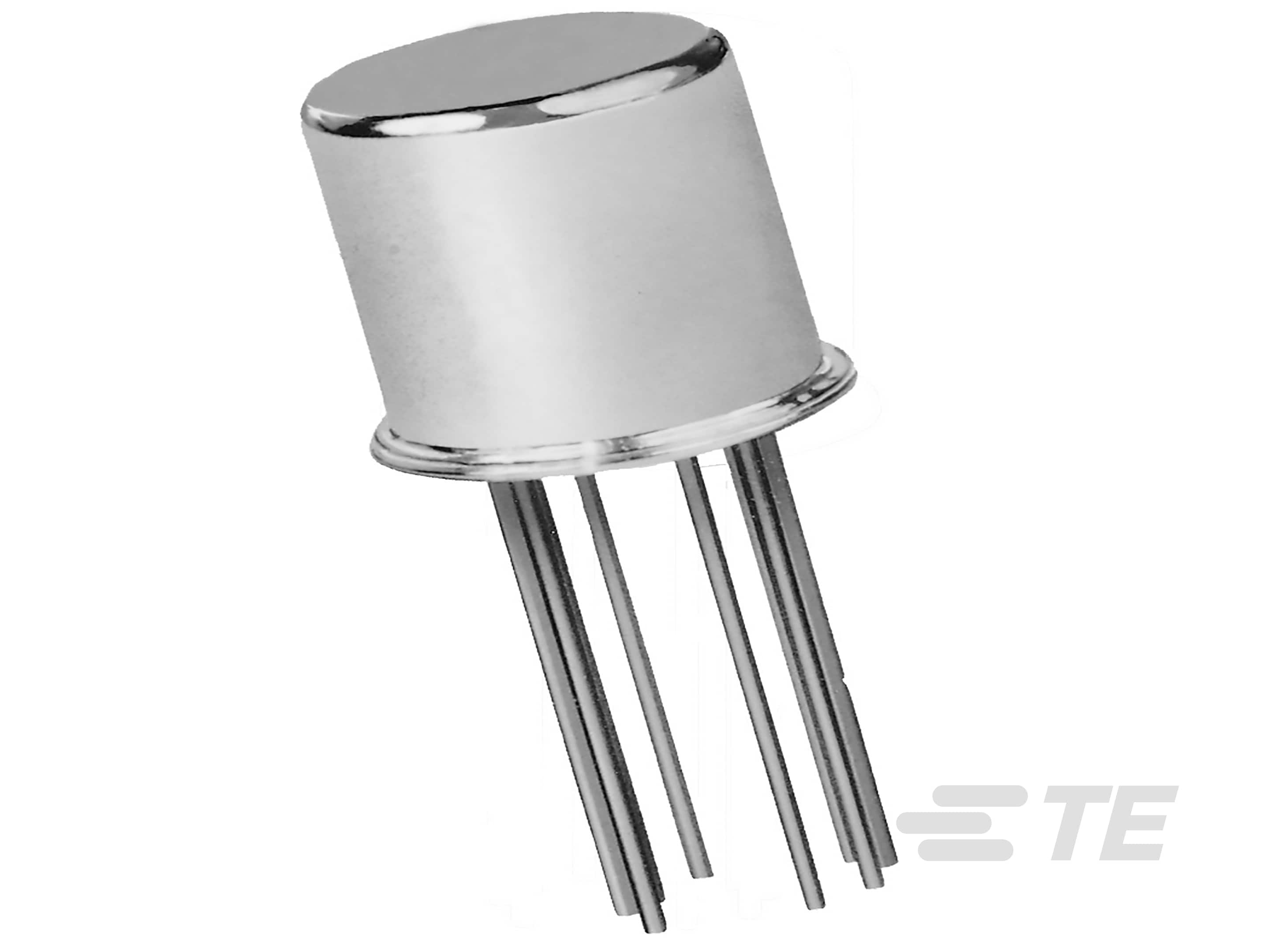

The JMAWT-5XL, also known as M28776/1-013L, is a high-performance signal relay designed for printed circuit board mounting. With a coil resistance of 50 Ω and operating at 5 VDC, it offers reliable switching capabilities with a contact configuration of 2 Form C (DPDT, 2 C/O). The maximum switching voltage of 28 VDC and contact current rating of 1 A make it suitable for a variety of applications. Featuring long leads for easy installation, this relay ensures efficient and durable performance. While not ROHS compliant, it guarantees quality and functionality in signal and communication relay systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617166-7 |
| Other Names: | M28776/1-013L |
