| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617170-5 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 100 Ω |
| Coil Voltage: | 5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Long Leads |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/3-017M |
| SKU: | AMP1617170-5 |
1617170-5
| Heilind Number: | AMP1617170-5 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617170-5 |
| ECAD Model: | |
Specifications
Detailed Description

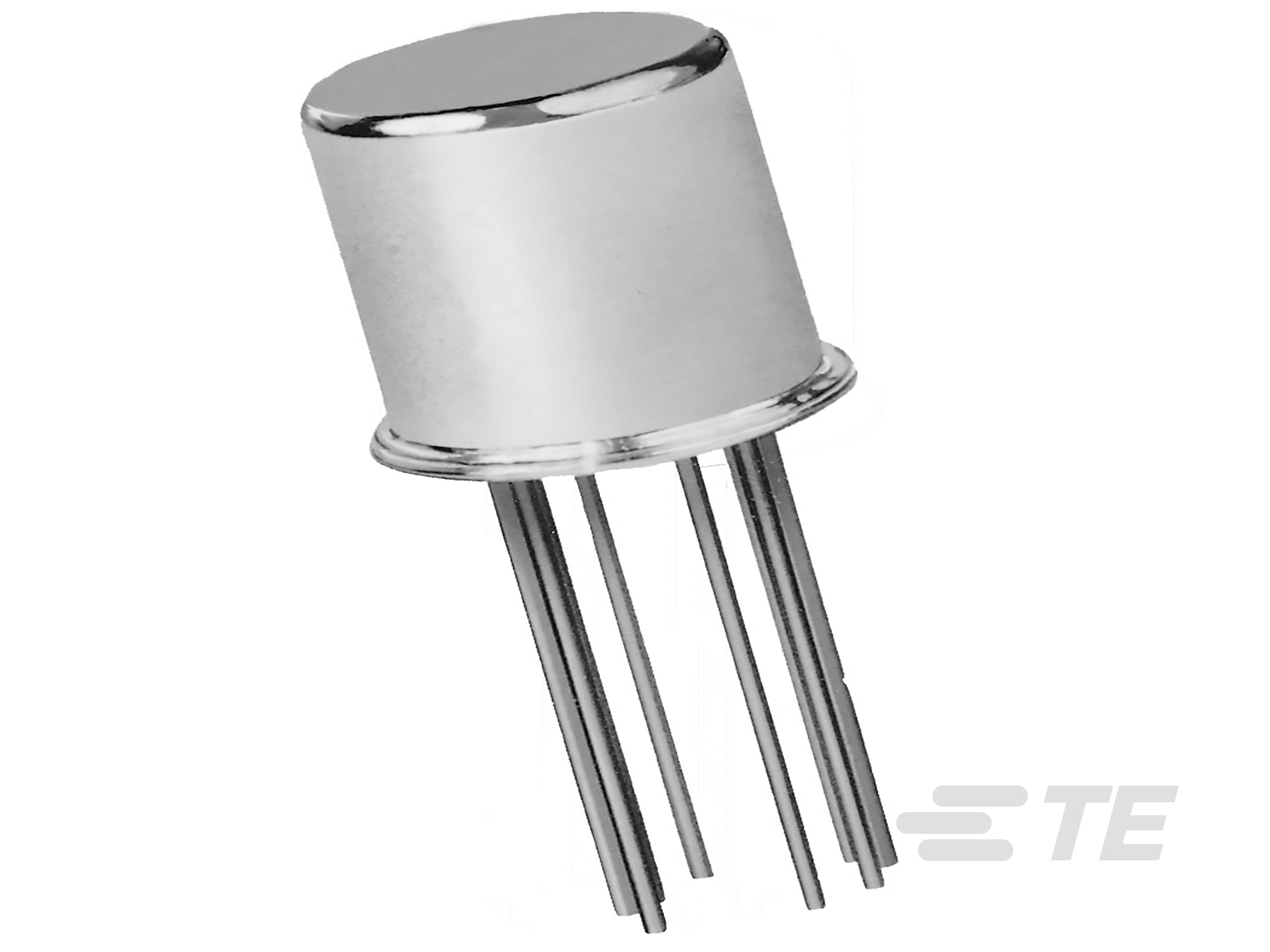

Introducing the JMSWT-5XM Signal Relay, a reliable and efficient component designed for use on printed circuit boards. With a coil resistance of 100 Ω and operating at a coil voltage of 5 VDC, this DPDT relay features a contact configuration of 2 Form C, offering two C/O contacts for versatile switching applications. Boasting a maximum switching voltage of 28 VDC and a contact current rating of 1 A, it ensures robust performance in signal and communication relay systems. With long lead terminations, installation is a breeze. While not RoHS compliant, its proven functionality and quality make it a valuable asset in various electronic setups.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617170-5 |
| Other Names: | M28776/3-017M |
