| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617543-8 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 6500 Ω |
| Coil Voltage: | 36 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M39016/42-053P |
| SKU: | AMP1617543-8 |
1617543-8
| Heilind Number: | AMP1617543-8 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617543-8 |
| ECAD Model: | |
Specifications
Detailed Description

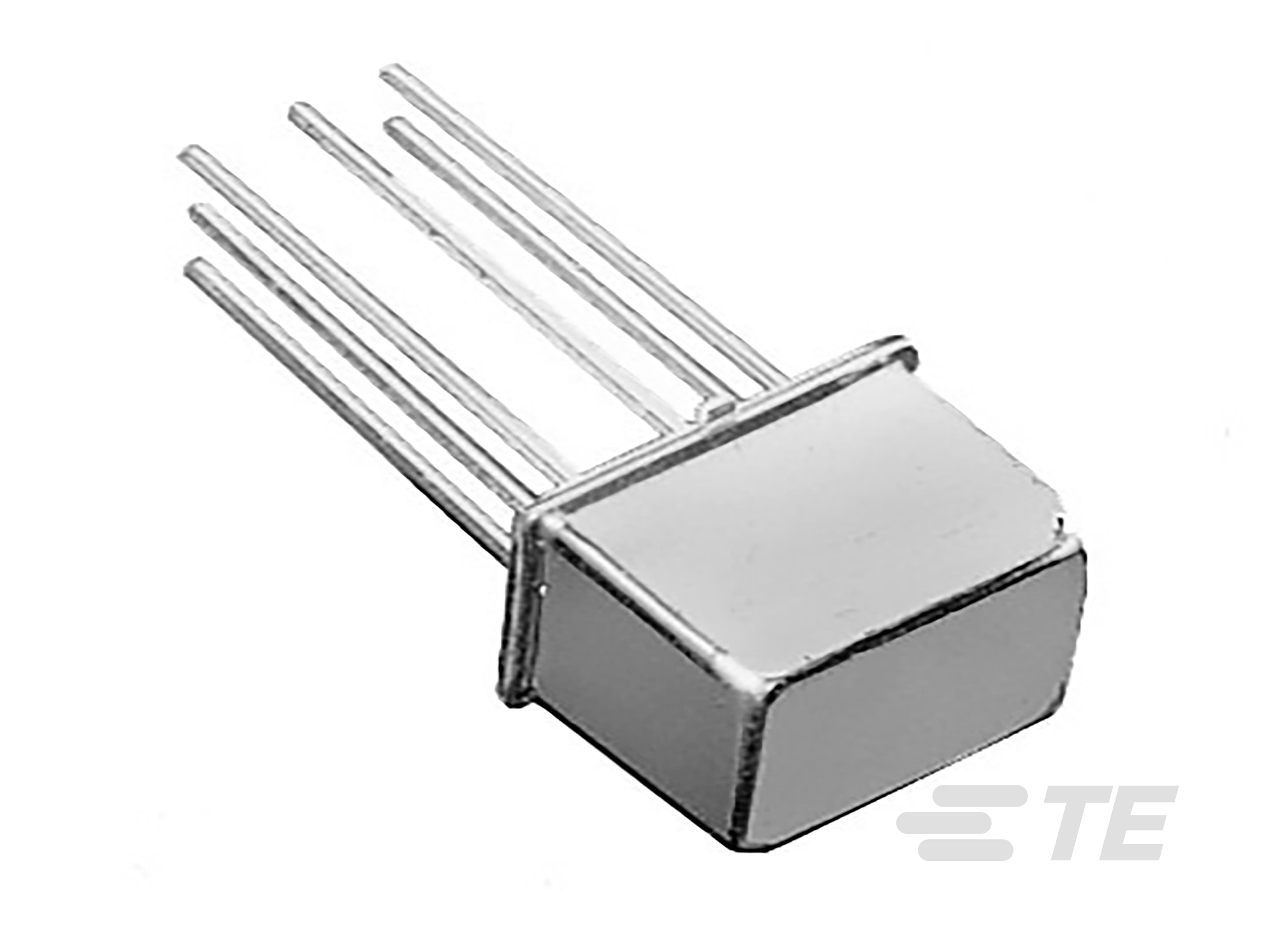

Elevate your circuit board's performance with the JMGSCD-36PW=M39016/42-053P printed circuit board relay. Designed for seamless integration, this relay boasts a coil resistance of 6500 Ω and operates at a coil voltage of 36 VDC, ensuring reliable functionality. With a contact configuration of 2 Form C (DPDT) and 2 C/O, it offers versatile switching options. The maximum switching voltage of 28 VDC guarantees efficient power control. Featuring PC Pin termination, installation is a breeze. Rated for a contact current of 1 A, it's ideal for signal and communication applications. While not RoHS compliant, this relay is a dependable choice for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617543-8 |
| Other Names: | M39016/42-053P |
