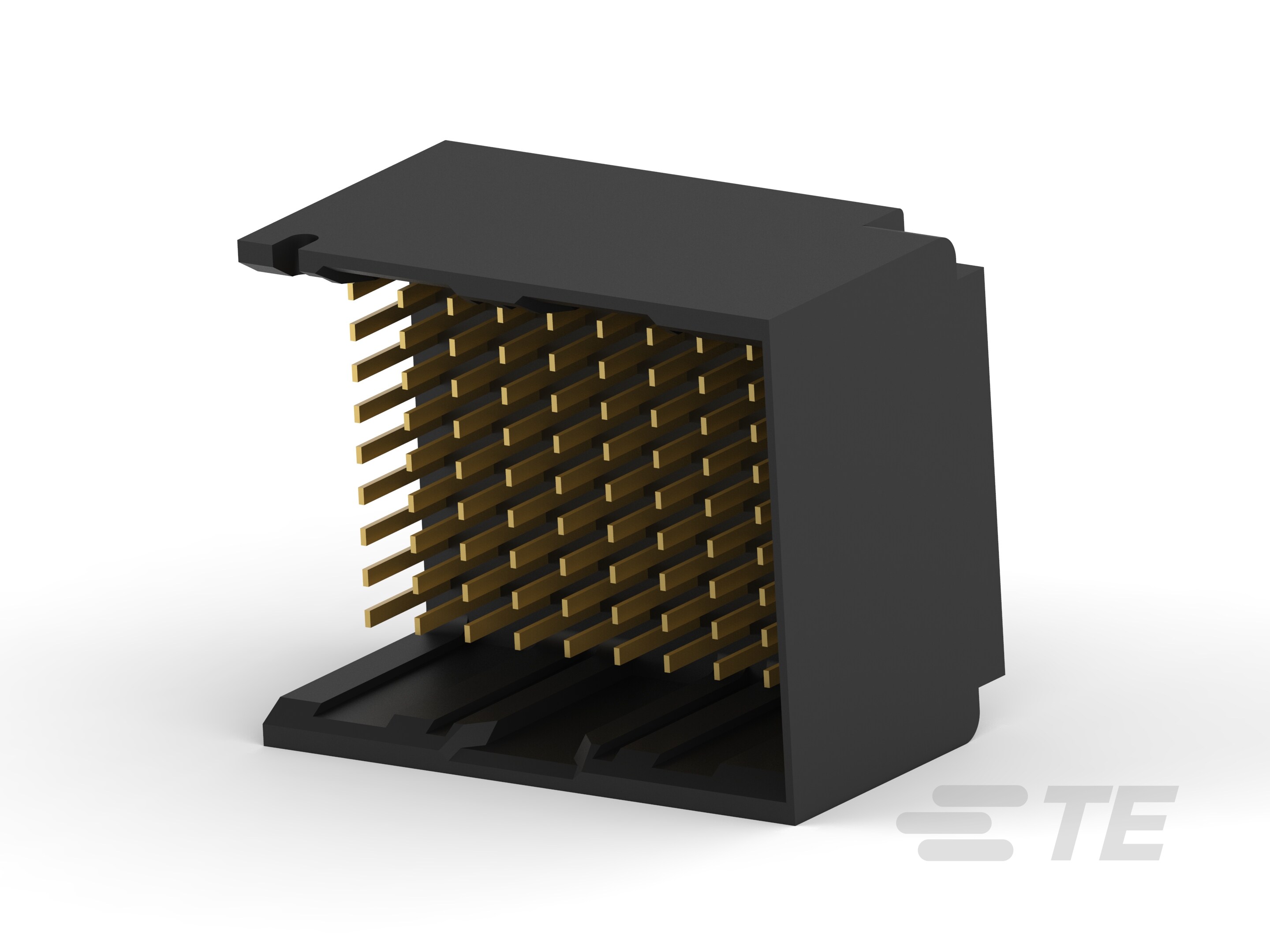

2007791-1

AMP2007791-1
Heilind Number:AMP2007791-1
Manufacturer:TE Connectivity
Manufacturer Number:2007791-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

IMP100S,H,V3P10C,UG,REW39,4.5

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007791-1
Series:IMPACT
Amperage:.75 A
Connector Type:Header
Gender:Plug
Housing Material:LCP - GF (Liquid Crystal Polymer)
Number of Rows:9
Mount Type:Board Mount
Termination Method:Through Hole - Press-Fit
Contact Material:Copper Alloy
Pitch:.075 in, 1.9 mm
Voltage:30 V AC, 30 V DC
Contact Type:Pin
Contact Length:.177 in, 20.3 mm, 4.5 mm
Row Spacing:.053 in, 1.35 mm
Impedance:100 Ω
PCB Hole Diameter:.015 in, .39 mm
Number of Pairs:30
Number of Positions:90
Data Rate:20 - 25 Gb/s
Housing Color:Black
Mount Orientation:Vertical
GPL:K74
Tail Length:.055 in, 1.4 mm
Packaging:Box & Tube, Package
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:29.92 µin, .76 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1 mm
Connector Height:11.95 mm, .47 in
PCB Retention Type:Action/Compliant Tail
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L346
Number of Columns:10
Number of Signal Positions:60
Contact Design:Dual Beam
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:.799 in
Connector System:Board to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Stackable:No
Connector Product Type:Connector
Pairs Per Column:3
Contact Style:Press-Fit
Board to Board Configuration:Right Angle, Vertical
Contact Underplating Thickness:1.27 µm, 50 µin
PCB Contact Termination Area Plating Finish:Matte
Connector Width:16.7 mm, .657 in
Mating Retention:Without
Make First / Break Last:No
Shroud Type:Partial
PCB Contact Termination Area Plating Thickness:30 - 60 µin, .76 - 1.52 µm
Guide Location:Unguided
Number of Ground Positions:30
End Wall Location:Right
Guide Hardware:Without
Signal Arrangement:Differential
Material Flammability Standard:UL 94V-0
Part Aliases:2007791-1
SKU:AMP2007791-1

Detailed Description

Enhance your signal transmission with the IMP100S connector, designed for high-speed data applications in the IMPACT series. Featuring a .75 A amperage and a durable LCP - GF housing, this board mount connector ensures reliable performance. With 90 positions and 30 pairs, it offers ample connectivity for your circuit needs. The through-hole press-fit termination method and gold-plated contacts guarantee secure and efficient signal transfer. Operating in a wide temperature range of -55 to 85°C, this connector is suitable for various environments. Its vertical mount orientation and dual beam contact design provide ease of assembly and enhanced signal integrity, making it ideal for demanding applications in data and device connections. Compliant with UL 94V-0 standards and RoHS regulations, this connector prioritizes safety and environmental sustainability. With features like polarization mating alignment and partial shrouding, it ensures proper mating and protection. Whether used in backplane or board-to-board configurations, the IMP100S connector delivers exceptional performance and reliability.
