| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2098627-2 |
| Series: | 1.5/2.8 Connector System |
| Gender: | Housing for female terminals |
| Number of Rows: | 2, 3 |
| Pitch: | .138 in, .208 in, .354 in, 3.5 mm, 5.3 mm, 9 mm |
| Strain Relief: | Add By Accessory |
| Row Spacing: | 6 mm |
| Polarization: | Yes |
| Body Material: | PA GF |
| Number of Positions: | 22 |
| GPL: | G32 |
| Operating Temperature Range: | -40 - 105 °C, -40 - 221 °F |
| Circuit Application: | Power & Signal |
| Sealable: | No |
| GPL Description: | Automotive |
| Product Code: | K241 |
| Connector System: | Wire to Board, Wire-to-Device |
| Length: | 1.992 in |
| Cable Exit Angle: | 90° |
| Height: | 1.37 in, 34.8 mm |
| Width: | 1.614 in, 41 mm |
| Mating Tab Width: | .059 in, .11 in, 1.5 mm, .248 in, 2.8 mm, 6.3 mm |
| Body Color: | Gray |
| Serviceable: | Yes |
| Mounting Feature: | Without |
| Terminal Position Assurance: | Yes |
| Connector Position Assurance Capable: | No |
| Hybrid Connector: | Yes |
| Primary Locking Feature: | Integrated in Housing |
| Part Aliases: | 2098627-2 |
| SKU: | AMP2098627-2 |
2098627-2
Specifications
Detailed Description

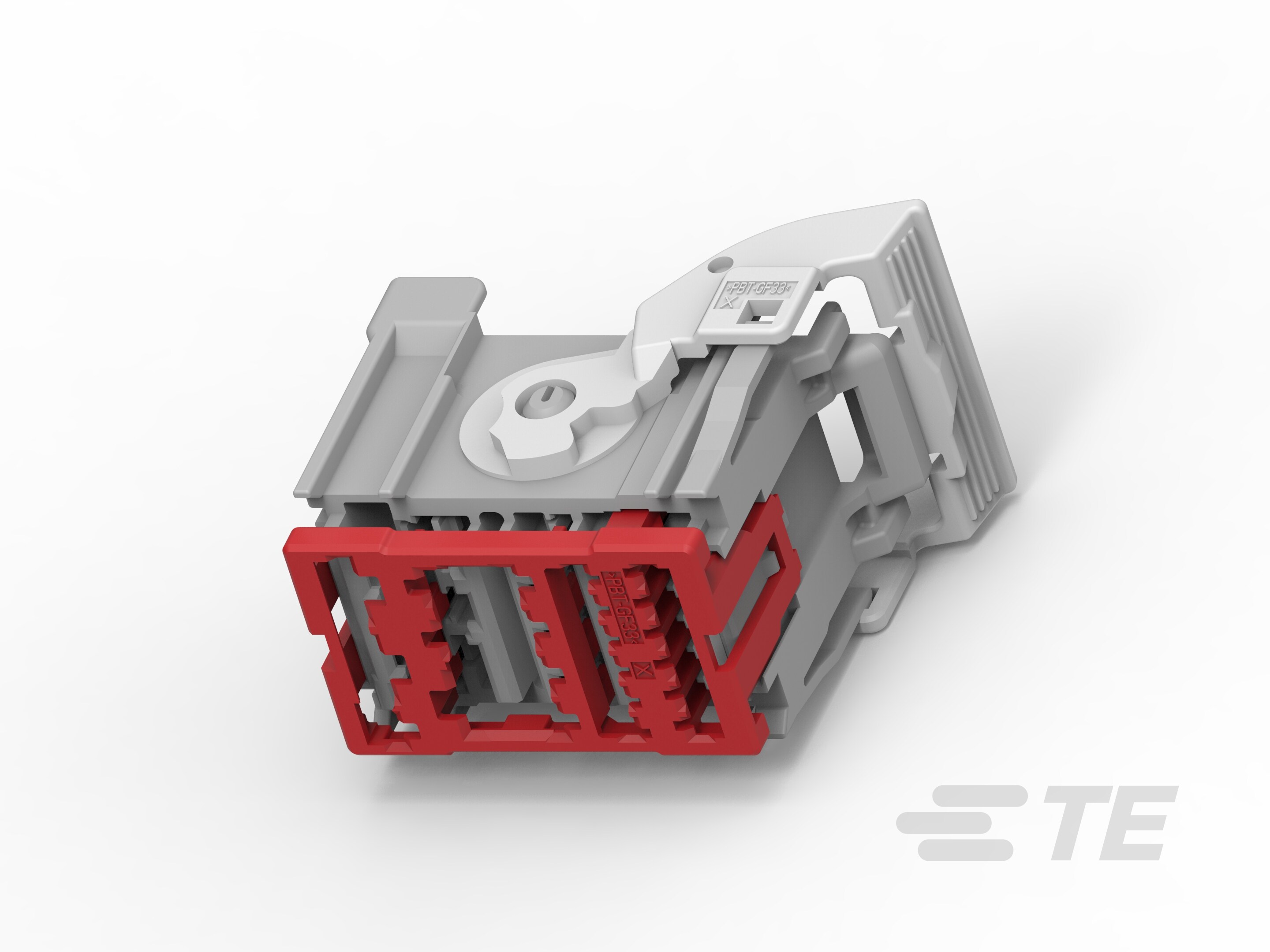

Introducing the 1.5/2.8 Connector System, a versatile housing designed for female terminals in automotive applications. With options for 2 or 3 rows and a pitch ranging from 3.5mm to 9mm, this connector system offers flexibility in power and signal circuitry. Made of durable PA GF material in a sleek gray finish, it is designed for reliable performance in harsh environments, with an operating temperature range of -40 to 105°C. Featuring integrated polarization and terminal position assurance, it ensures secure and accurate connections. With a compact design measuring just under 2 inches in length and 1.37 inches in height, it is space-efficient without compromising on functionality. Ideal for wire-to-board and wire-to-device setups, this connector system is RoHS compliant and lead-free solder process capable, making it a sustainable choice for automotive electronics. Elevate your connectivity with this essential accessory for automotive connectors.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
