2108844-1

AMP2108844_1
Heilind Number:AMP2108844-1
Manufacturer:TE Connectivity
Manufacturer Number:2108844-1
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

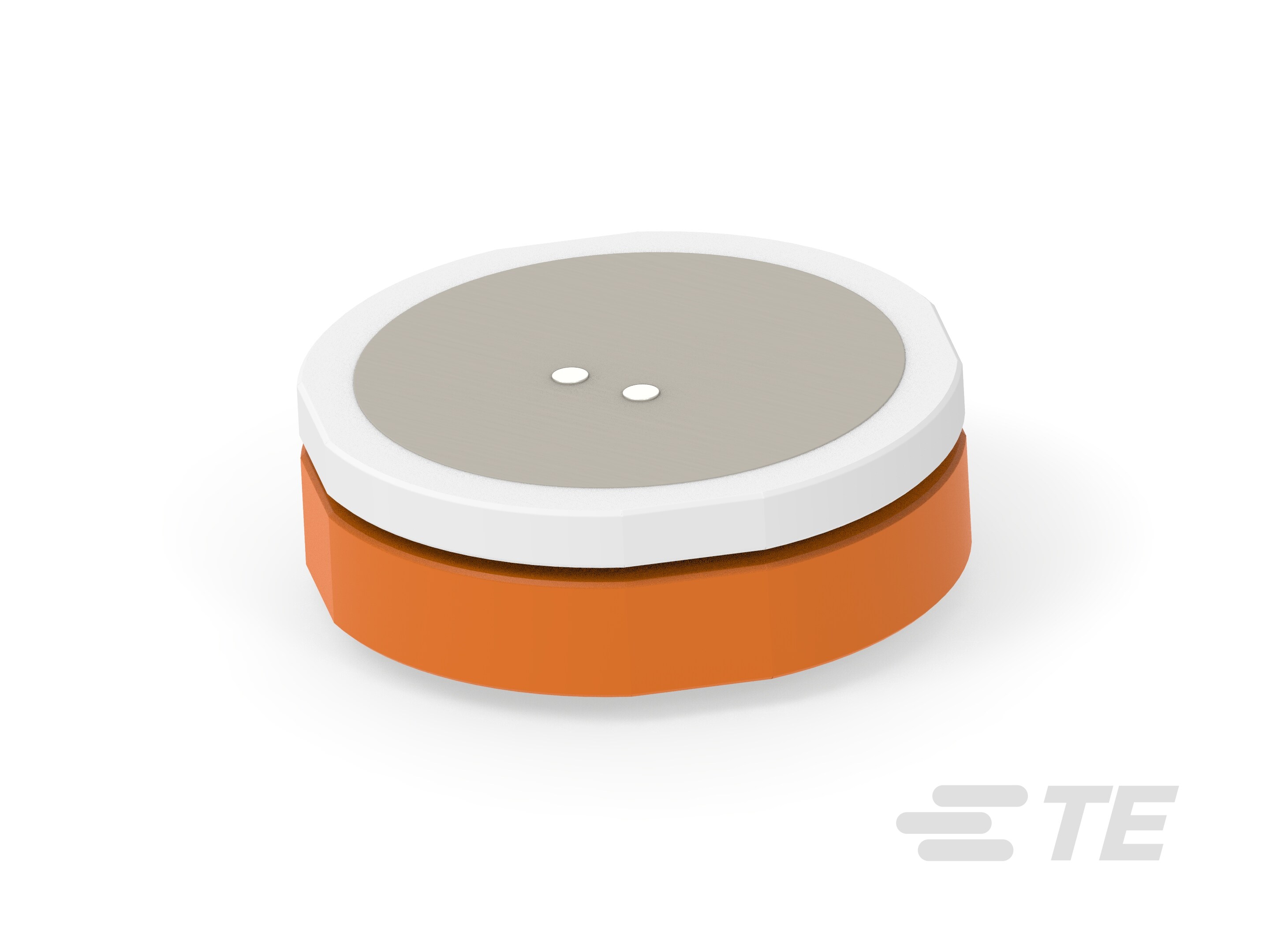

Patch Antenna, Multi Band, GNSS, Internal/Embedded Mount, Through-Hole/Tab Mount, Directional, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108844-1
Gain:5.4 dB
Band Type:Multi Band
Antenna Type:Patch
Directionality:Directional
Mounting Style:Tab, Through Hole
Frequency Range:1164 - 1255 MHz, 1559 - 1610 MHz
Center Frequency:1209.5 MHz, 1584.5 MHz
Application:GNSS
VSWR:1.5
Protocol:GPS
Impedance:50 Ω
Polarization:RHCP
SKU:AMP2108844-1

Detailed Description

This RoHS-compliant patch antenna is designed for multi-band GNSS applications, offering a directional gain of 5.4 dB for enhanced signal reception. With a center frequency of 1209.5 MHz and 1584.5 MHz, it covers the essential bands for GPS connectivity. Ideal for internal/embedded mounting with through-hole/tab installation, this antenna ensures reliable performance in various devices. Featuring a VSWR of 1.5 and RHCP polarization, it guarantees efficient signal transmission. Perfect for GPS protocols, it operates within a frequency range of 1164 - 1255 MHz and 1559 - 1610 MHz. Suitable for a wide range of applications, this antenna is a versatile and high-performing choice for GNSS systems.
