2108948-6

AMP2108948_6
Heilind Number:AMP2108948-6
Manufacturer:TE Connectivity
Manufacturer Number:2108948-6
Datasheet:3D Model (IGS)
ECAD Model:
3D Model

Description:

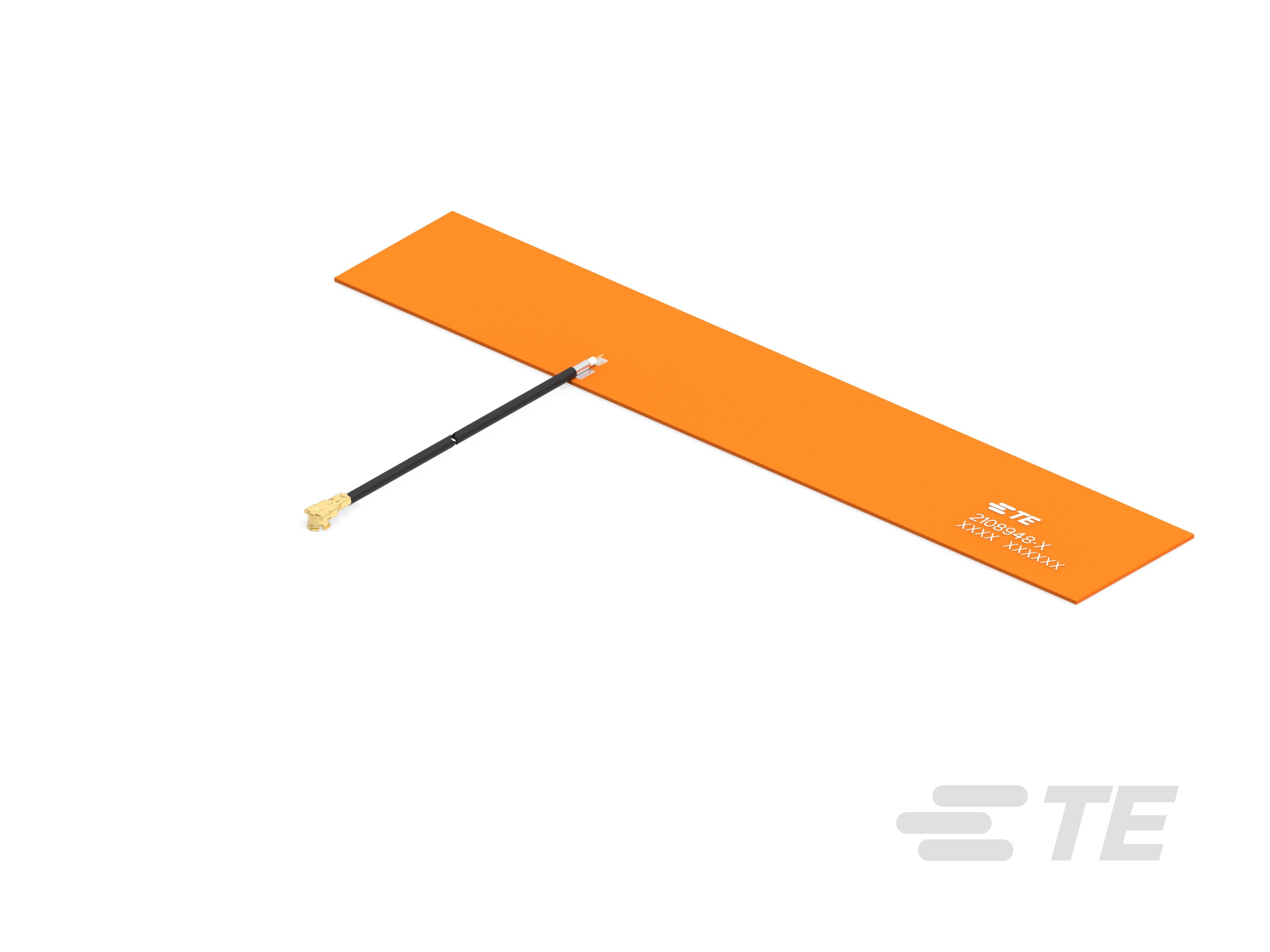

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108948-6
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:Adhesive
VSWR:3.5:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:Multi Band
Center Frequency:2925 MHz, 6062.5 MHz, 695 MHz
Directionality:Omnidirectional
Frequency Range:1850 - 4000 MHz, 5000 - 7125 MHz, 690 - 700 MHz
Gain:4.2 dB
SKU:AMP2108948-6

Detailed Description

Enhance connectivity with this high-performance PCB antenna, boasting a 4.2 dB gain and 3.5:1 VSWR for optimal signal strength. Operating across various protocols including ZigBee, Bluetooth, LTE, and multiple 802.11 standards, as well as EU Triband and US Dual Band, it offers versatile compatibility. Designed for multi-band use, covering frequencies from 1850 to 7125 MHz, it's perfect for 5G, Cat-M/NB-IoT, Cellular, GNSS, and Wi-Fi applications. With linear polarization and omnidirectional directionality, it ensures reliable signal transmission in any environment. Easy to mount with adhesive backing, it's ideal for internal/embedded installation. RoHS compliant and featuring a single MHF4 port, this antenna is a crucial component for any wireless solution.
