| Attribute | Value |
|---|---|
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2118308-8 |
| Impedance: | 50 Ω |
| Polarization: | Linear |
| Protocol: | EU Triband, LTE, UMTS, US Dual Band, WCDMA |
| Mounting Style: | Adhesive |
| VSWR: | 3:1 |
| Antenna Type: | PCB |
| Antenna Termination Type: | MHF, MHF1, U.FL, UMCC |
| Application: | Bluetooth, Cat-M/NB-IoT, Cellular, Wi-Fi |
| Band Type: | Multi Band |
| Directionality: | Omnidirectional |
| Gain: | 3.9 dB |
| SKU: | AMP2118308-8 |
2118308-8
| Heilind Number: | AMP2118308-8 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2118308-8 |
| Datasheet: | 3D Model (PDF) |
| ECAD Model: | |
Description:

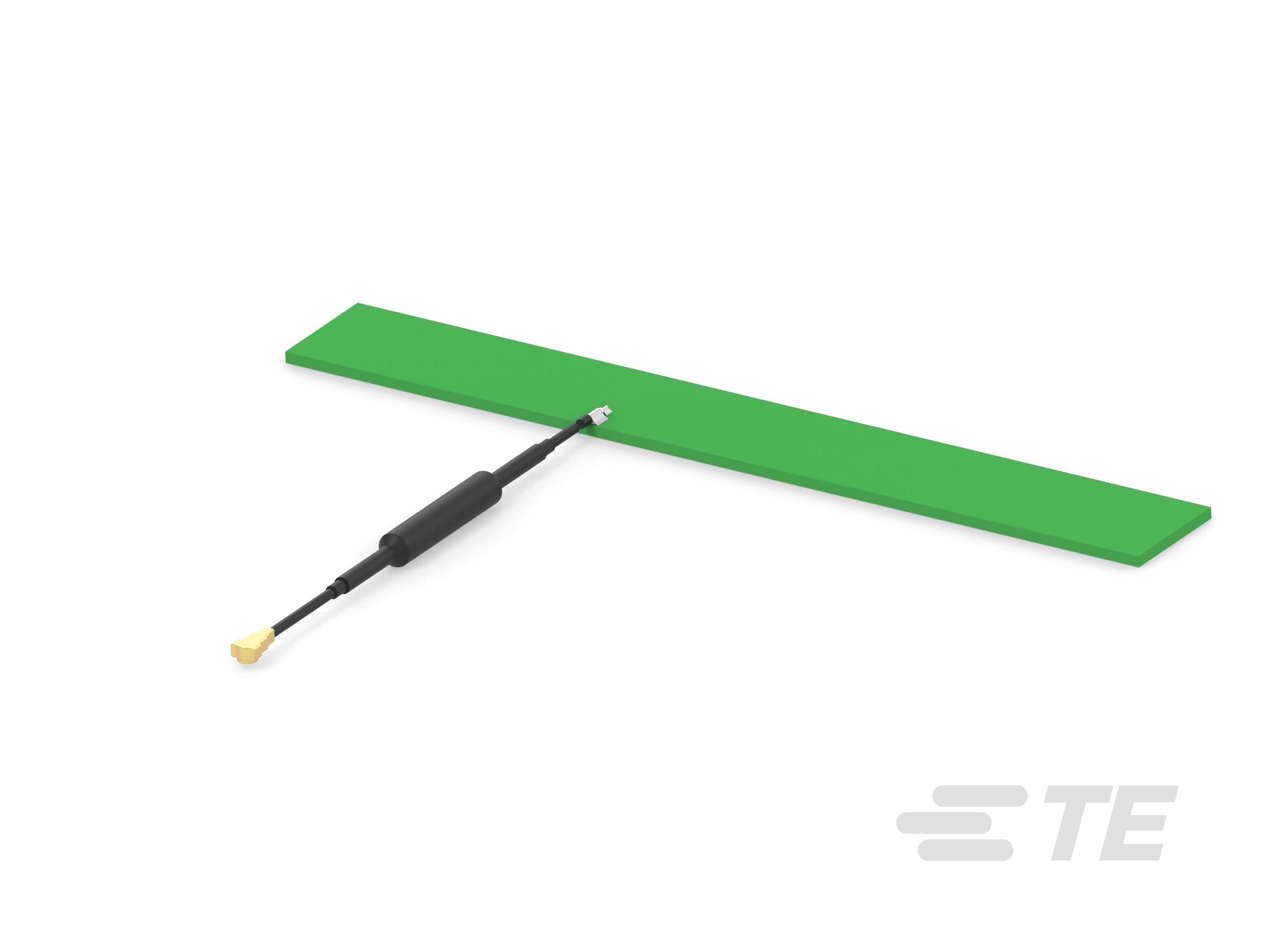

PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Gain 3 < 6 dBi
More >>Specifications
Detailed Description
Ensure seamless RoHS compliance with this high-performance PCB Antenna, designed for a multitude of wireless applications. Boasting a gain of 3.9 dB and a VSWR of 3:1, it guarantees optimal signal strength and efficiency. With support for LTE, UMTS, EU Triband, US Dual Band, and WCDMA protocols, it offers versatile connectivity options. Its omnidirectional polarization and linear directionality make it ideal for a wide range of scenarios, while its adhesive mounting style ensures easy installation. Compatible with MHF, MHF1, U.FL, and UMCC antenna terminations, it is perfect for Bluetooth, Cat-M/NB-IoT, Cellular, and Wi-Fi applications. Trust in this antenna for reliable, high-speed wireless communication.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2337019-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
