| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2176093-4 |
| Size Code: | 0805 |
| Power Rating: | .25 W |
| Termination Type: | Solder |
| Resistance: | 9.76 KΩ |
| Rated Voltage: | 150 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 2 x 1.25 x .55 mm |
| Product: | Surface Mount Resistors |
| Product Type: | Precision Resistor |
| Element Type: | Thin Film |
| Tolerance: | .1% |
| Number of Terminations: | 2 |
| SKU: | AMP2176093-4 |
2176093-4
| Heilind Number: | AMP2176093-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2176093-4 |
| ECAD Model: | |
Specifications
Detailed Description

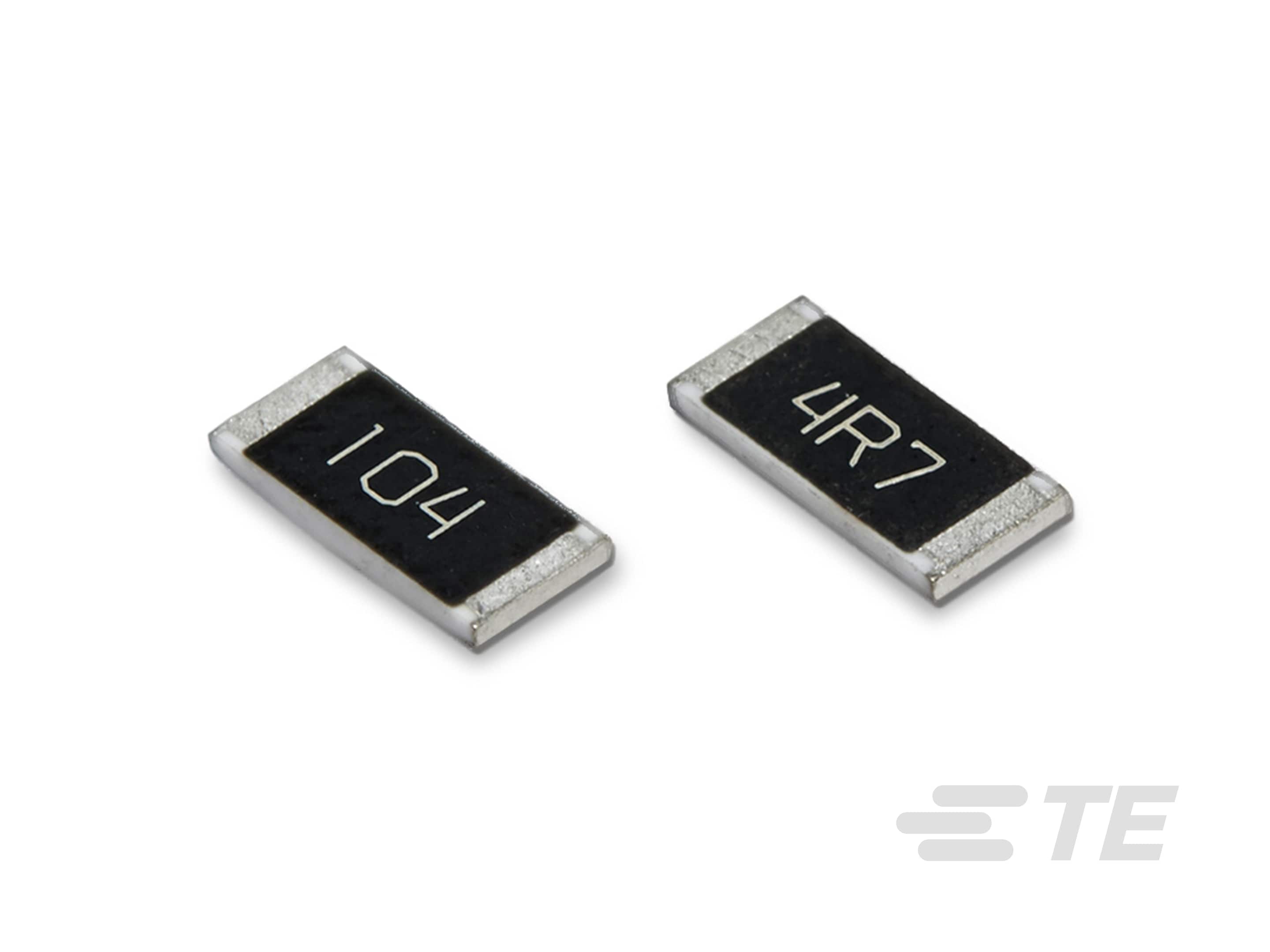

Enhance precision in electronic circuitry with this 0805-sized thin film resistor. With a power rating of 0.25W and a resistance of 9.76KΩ at a tolerance of 0.1%, it ensures accurate performance in demanding applications. Operating at a rated voltage of 150V, this surface mount resistor is reliable and efficient. Its compact dimensions of 2 x 1.25 x .55 mm make it suitable for space-constrained designs. Featuring solder termination and a mounting style, it facilitates easy installation. RoHS compliance underscores its environmental responsibility, making it a dependable choice for high-performance electronics.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2176093-5 |  | |
 | TE Connectivity 2-2176308-7 | | |
 | TE Connectivity 2176308-5 | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
