| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2266219-1 |
| Product: | Applicators |
| Terminator Type: | 30 mm (1.12") Stroke Terminator, 40 mm (1.62") Stroke Terminator |
| Feed Type: | Mechanical |
| SKU: | AMP2266219-1 |

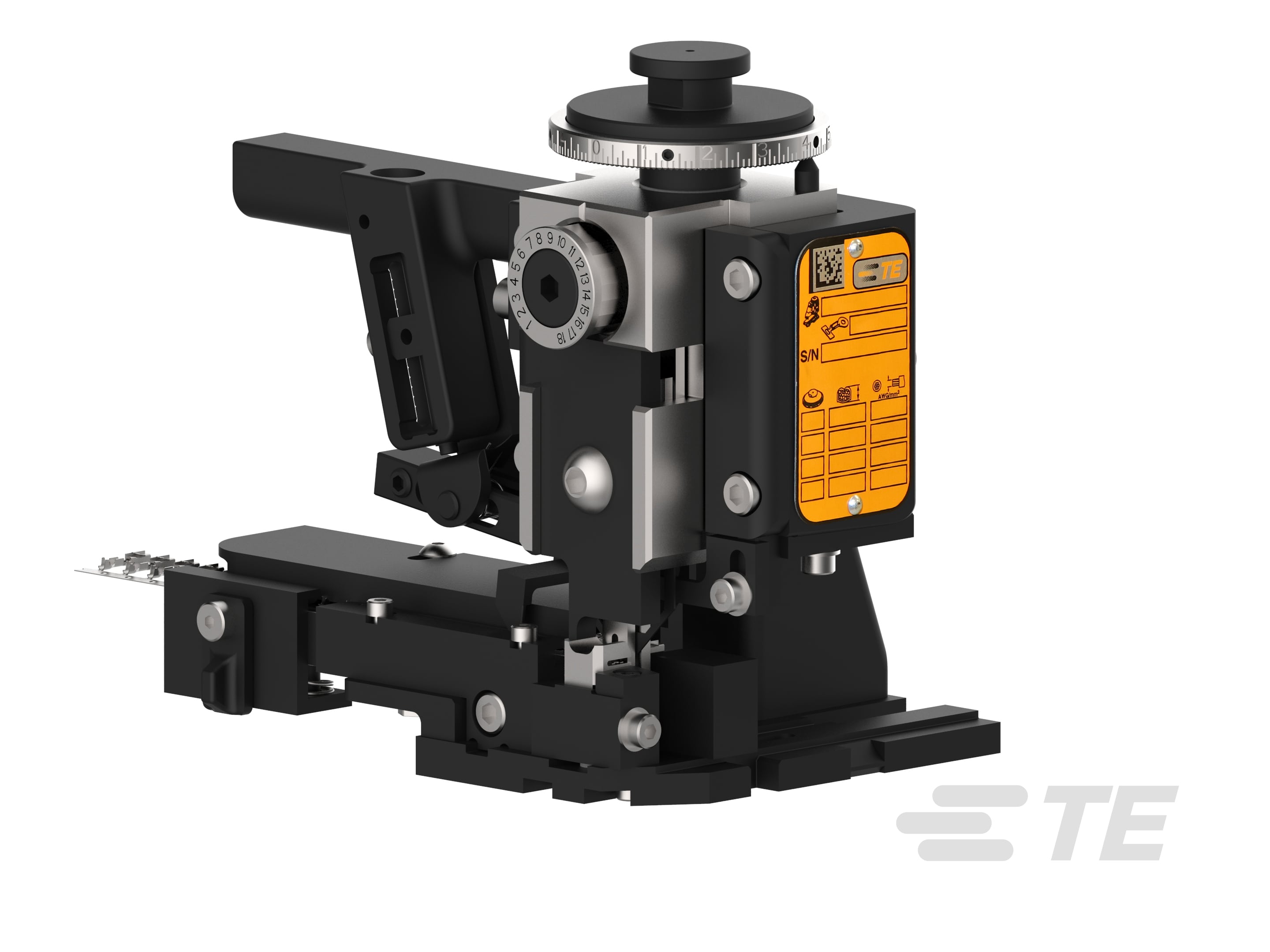

2266219-1
Specifications
Detailed Description
Enhance your assembly process with the OCEAN_2.0_APPLICATOR-S-046F070F. This versatile tool is designed for precision application, offering seamless integration with our connectors. With options for both 30mm and 40mm stroke terminators, it ensures accurate and efficient operations. Featuring a mechanical feed type, it guarantees consistent performance. Rest assured, this applicator is fully ROHS compliant, meeting environmental standards. Elevate your workflow with this essential tool from our range of products.
For Use With
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/23/2018 | E-18-006669 - Product Improvement. OCEAN applicator 2151143 has been upgraded to OCEAN 2.0, to include: enhanced terminal strip guide assembly and wire crimp height ram assembly. No change to previous applicator revisions are required. Where listed on the applicator logs-sheet, all terminals have been qualified using the stated crimp specification. OCEAN applicator 2266219 has been upgraded to OCEAN 2.0, to include: enhanced terminal strip guide assembly and wire crimp height ram assembly. No change to previous applicator revisions are required. Where listed on the applicator logs-sheet, all terminals have been qualified using the stated crimp specification. | Download | |||
| 12/25/2017 | E-17-011682 - Product Improvement. The following changes to Ocean Applicator part number 2266219 in order to better meet bend requirement. The following parts were changed. Item number 5, shear depressor, part number 2119757-1. Item number 9, floating shear, part number 1803095-3. Item number 244, insulation adjustment snail cam, part number 2119082-8. The following item was added. Item number 70, wire depressor, part number 2119791-9. The following items were deleted. Item number 28, crimper spacer, part number 455888-3. Item number 58, slotted spring pin, part number 21028-2. Item number 74, insulation holder, part number 854769-4. Item number 77, compression spring, part number 5-547505-2. No change is necessary to the current revision applicator. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
