| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2273111-5 |
| Amperage: | 4 A |
| Overall Length: | 2000 mm |
| Connector End 1: | M8 |
| Connector End 2: | M12 |
| Cable Diameter: | .173 in, 4.4 mm |
| Number of Positions: | 4 |
| Jacket Material: | Polyurethane (PUR) |
| Shielded: | No |
| Wire Size: | 22 AWG |
| Wire Color: | Brown, White, Blue, Black |
| Jacket Color: | Black |
| Connector End 1 Gender: | Receptacle |
| Connector End 2 Gender: | Plug |
| Operating Voltage: | 30 VAC, 30 VDC |
| Mount Angle End 1: | Straight |
| Mount Angle End 2: | Straight |
| SKU: | AMP2273111-5 |
2273111-5
| Heilind Number: | AMP2273111-5 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2273111-5 |
| Datasheet: | 2D Model (DXF) |
| ECAD Model: | |
Specifications
Detailed Description

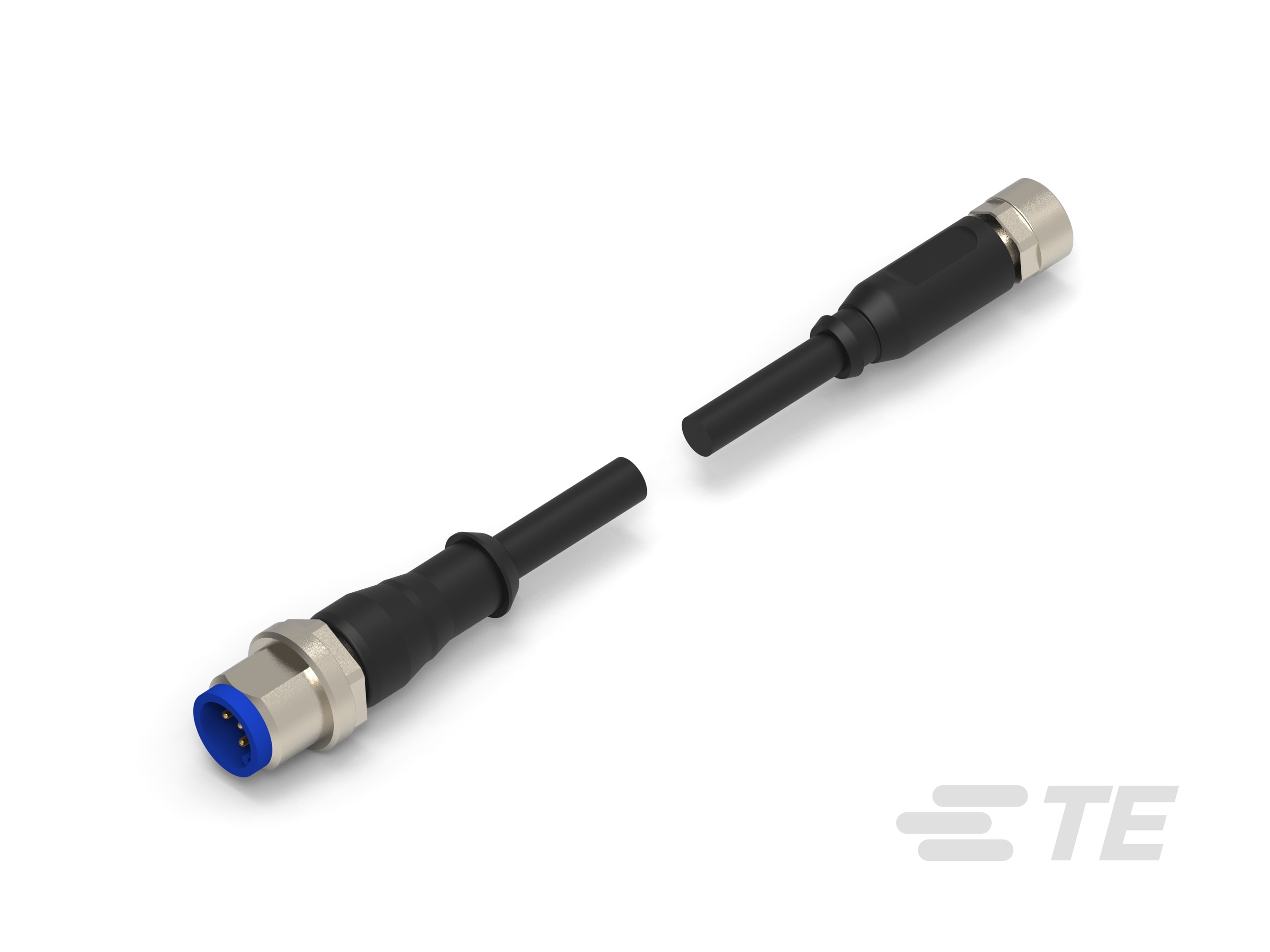

Easily connect M8 straight sockets to M12 straight plugs with this high-quality cable assembly. Featuring a 2000mm overall length, it ensures ample reach for various applications. The four 22 AWG wires, color-coded in brown, white, blue, and black, are encased in a durable black Polyurethane jacket, guaranteeing both flexibility and protection. With an amperage rating of 4A and operating voltage of 30VAC/30VDC, this cable assembly is suitable for diverse power and signal transmission needs. Whether for industrial or commercial use, its straight plug and receptacle connectors offer convenient and secure installations. Compliant with RoHS standards, it is a reliable choice for wire management in sensor applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
