| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2273121-1 |
| Amperage: | 4 A |
| Overall Length: | 300 mm |
| Connector End 1: | M12 |
| Connector End 2: | M12 |
| Cable Diameter: | .185 in, 4.7 mm |
| Number of Positions: | 4 |
| Jacket Material: | Polyurethane (PUR) |
| Shielded: | No |
| Wire Size: | 22 AWG |
| Wire Color: | Brown, White, Blue, Black |
| Jacket Color: | Black |
| Connector End 1 Gender: | Plug |
| Connector End 2 Gender: | Receptacle |
| Operating Voltage: | 250 VAC, 250 VDC |
| Mount Angle End 1: | Right Angle |
| Mount Angle End 2: | Straight |
| SKU: | AMP2273121-1 |
2273121-1
| Heilind Number: | AMP2273121-1 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2273121-1 |
| Datasheet: | 2D Model (DXF) |
| ECAD Model: | |
Specifications
Detailed Description

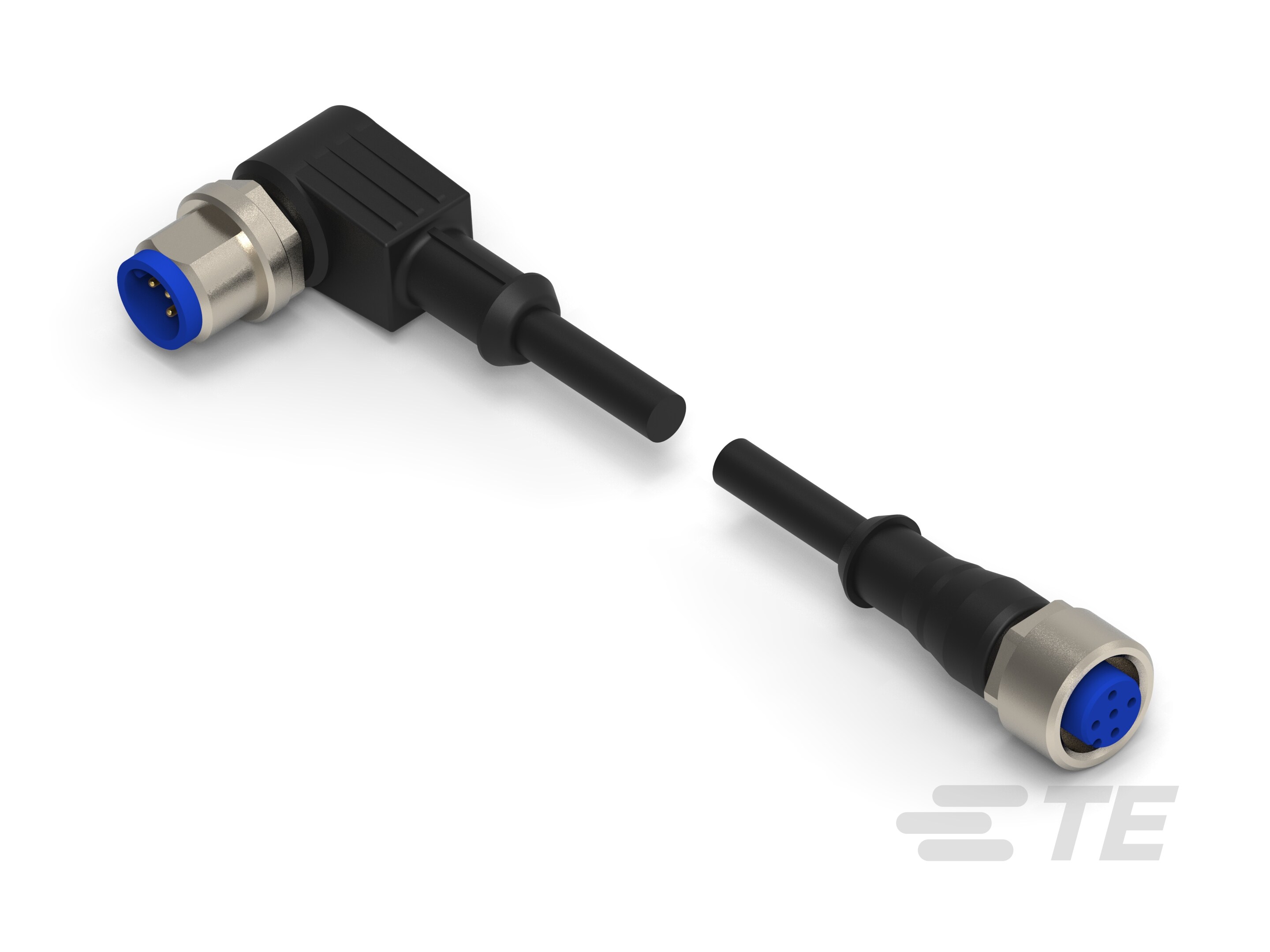

Easily connect and extend your M12 cables with this angled plug to straight socket AA assembly. Designed for convenience and flexibility, the 300mm long cable features a 4.7mm diameter and is shielded with Polyurethane (PUR) for durability. With 4 positions and 22 AWG wire size in brown, white, blue, and black colors, this assembly is ideal for sensor applications. Operating at 250 VAC/DC, it ensures reliable power transmission. The right-angle plug and straight socket configuration offers versatile mounting options. RoHS compliant, this cable assembly guarantees high quality and environmental responsibility. Perfect for industrial use, it's a must-have for efficient wire management.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|

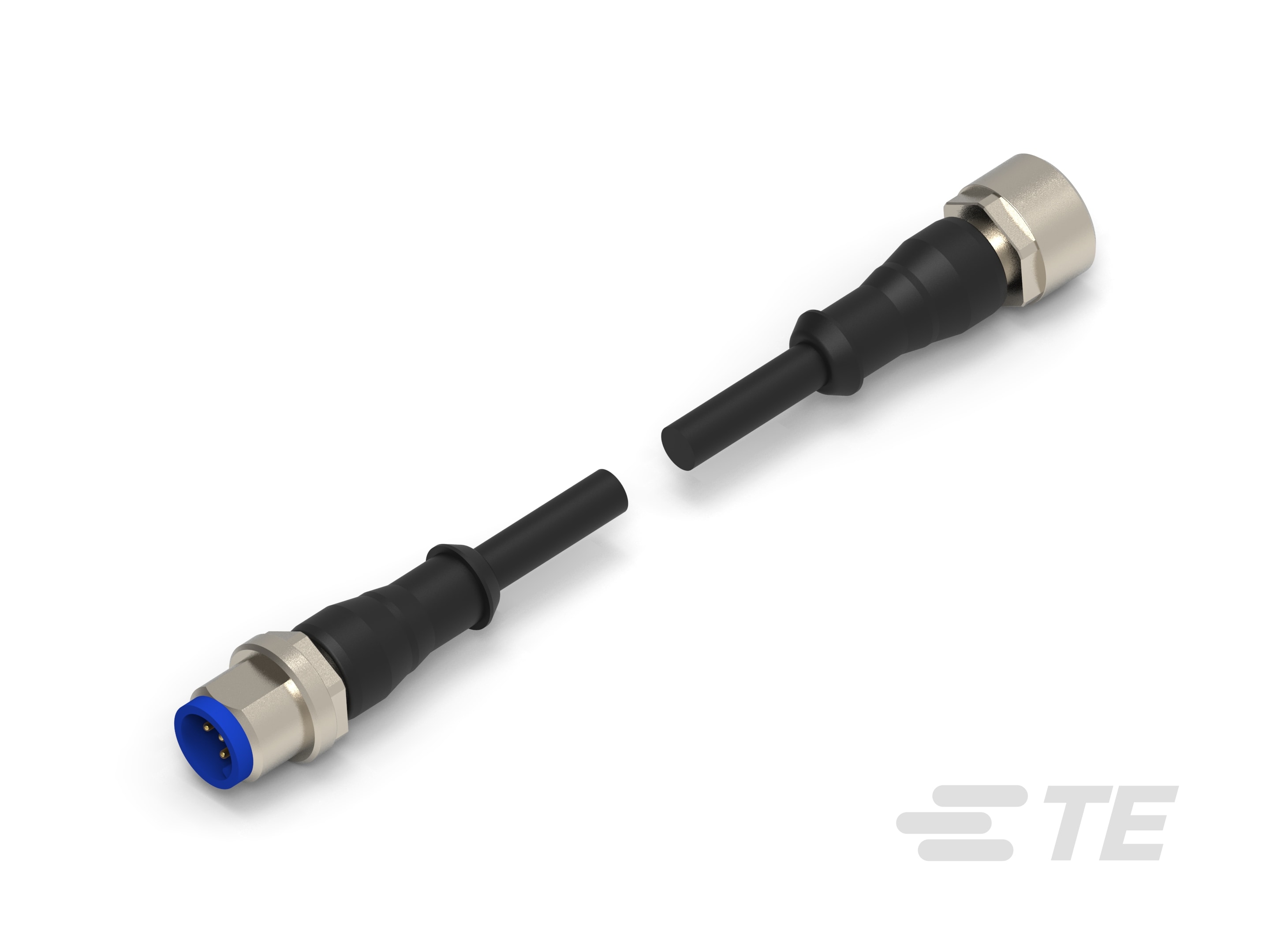

 | TE Connectivity 2273113-1 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
