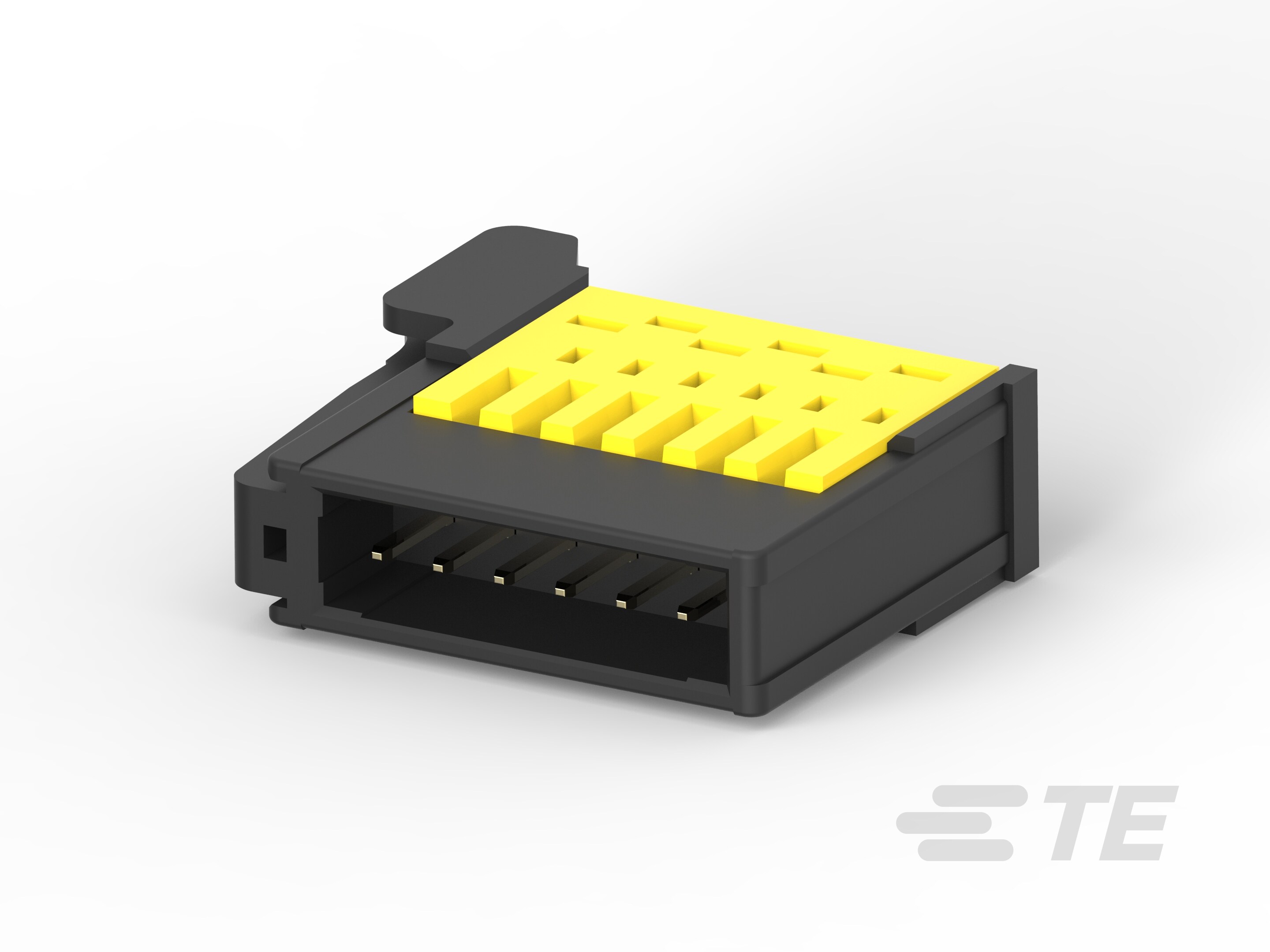

2295321-6

Heilind Number:	AMP2295321-6
Manufacturer:	TE Connectivity
Manufacturer Number:	2295321-6
Datasheet:	Instruction Sheet
ECAD Model:

Description:

RITS CONN. SOCKET ASSY 6P YELLOW TIN

More >>

Specifications

Attribute	Value
Product Category:	Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2295321-6
Connector Type:	Connector Assembly
Gender:	Receptacle
Housing Material:	Thermoplastic - GF
Number of Rows:	1
Termination Method:	Crimp
Contact Plating:	Gold Over Nickel
Pitch:	.079 in
Voltage:	32 VDC
Contact Type:	Socket
Package Quantity:	24
Contact Amperage:	3 A
Number of Positions:	6
Housing Color:	Yellow
GPL:	JA9
Mating Retention Type:	Latch
Packaging:	Tube
Operating Temperature Range:	-22 - 167 °F, -30 - 75 °C
Circuit Application:	Signal
Shielded:	No
PCB Retention:	Without
Connector Height:	23 mm, .905 in
Sealable:	No
Mating Alignment:	With
Mating Alignment Type:	Polarization
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	H166
Preloaded:	Yes
Contact Layout:	Inline
Connector Length:	19.8 mm, .779 in
Connector System:	Wire to Board
Connector Product Type:	Connector
ECCN:	EAR99
Connector Width:	.338 in, 8.6 mm
Mating Retention:	With
PCB Mount Alignment Type:	None
Application Assembly Feature:	Without
Contact Retention:	Without
Glow Wire Rating:	Standard Part - Not Glow Wire
Circuit Identification Feature:	Without
Multiple Contact Types:	Without
Panel Gasket:	Without
Shunts/Shorting Bars:	Without
Halogen Free:	Yes
Material Flammability Standard:	UL 94V-0
Part Aliases:	2295321-6
SKU:	AMP2295321-6

Detailed Description

Easily connect and secure your electronic components with this 6P yellow tin socket assembly. Designed for optimal performance, this receptacle features a thermoplastic housing with gold-plated contacts, ensuring reliable signal transmission. With a crimp termination method and a pitch of .079 inches, it offers quick and efficient installation on a printed circuit board. Suitable for signal applications, it has a voltage rating of 32 VDC and can handle up to 3A of current. Its UL 94V-0 flammability standard and operating temperature range of -30 to 75°C (-22 to 167°F) make it ideal for industrial use. The connector is lead-free and RoHS compliant, meeting international environmental standards. Its compact size, measuring .905 inches in height and .338 inches in width, allows for easy integration into various systems. Perfect for wire-to-board connections, this connector assembly comes in a package quantity of 24, making it a convenient and cost-effective solution for your assembly needs.
