2301996-3

Heilind Number:	AMP2301996-3
Manufacturer:	TE Connectivity
Manufacturer Number:	2301996-3
Datasheet:	Product Specification
ECAD Model:

Description:

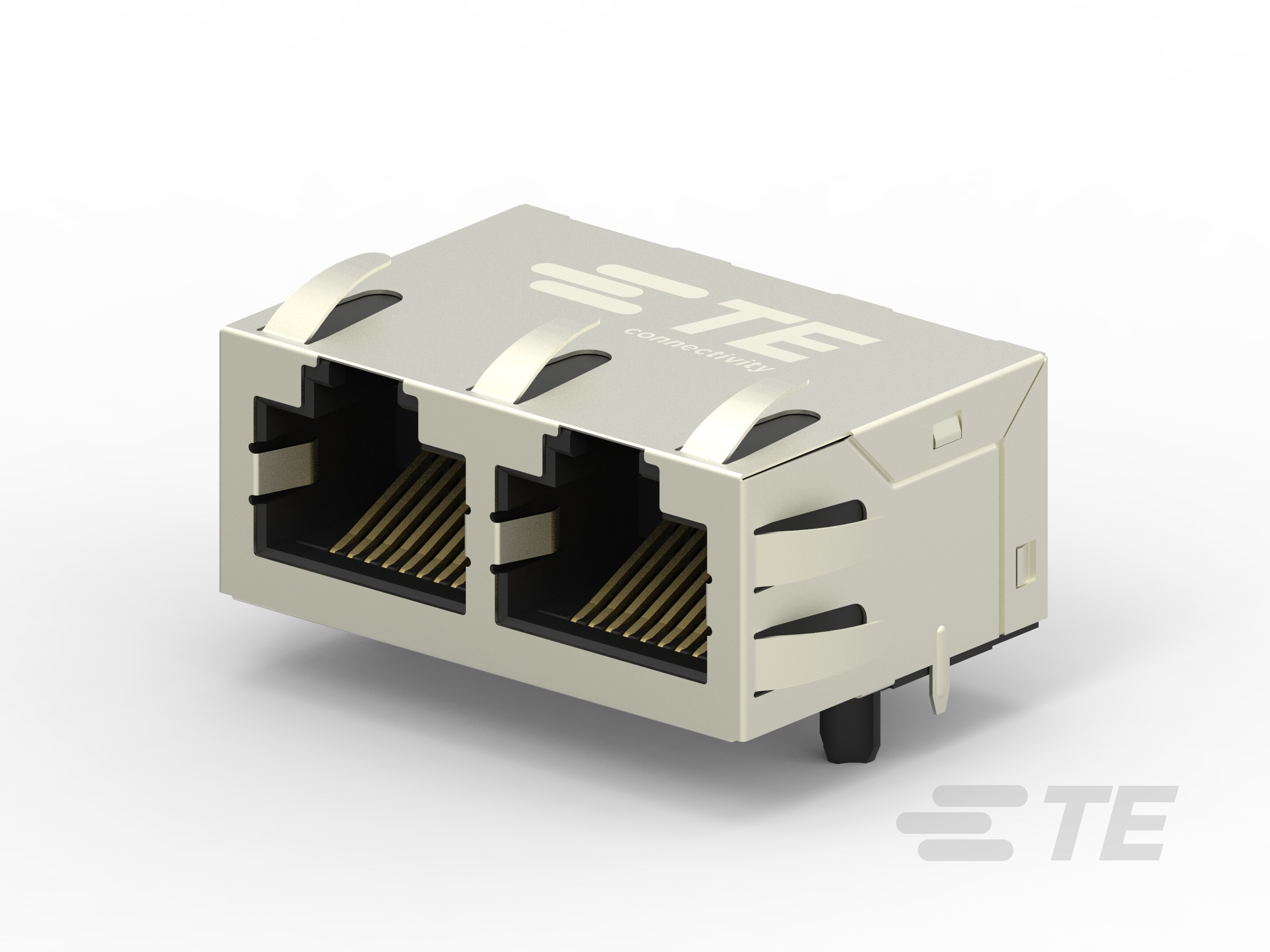

RJ45 JACK INT.MAG. 1GB 1X2 INV.

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks & Plugs
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301996-3
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Right Angle
Latch Orientation:	Inverted - Latch Up
GPL:	Z16
LED Color (Bottom Right):	None
LED Color (Bottom Left):	None
LED Color (Top Left):	None
LED Color (Top Right):	None
PCB Ground Tab Location:	.12 in, 3.05 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Multiple Port Configuration:	Ganged
Number of Loaded Positions:	8
Mating Entry Location:	Side
Number of Panel Ground Tabs:	7
Number of PCB Ground Tabs:	2
Panel Ground Location:	Top and Side
Port Configuration:	Multiple Ports
Port Matrix Configuration:	1 x 2
Status Indicator:	None
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	13.5 mm, .53 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB and Panel Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301996-3

Detailed Description

Enhance your industrial network connectivity with our RJ45 Jack featuring integrated magnetics for optimal performance. Designed for Cat 5e data transmission at speeds of 1000 Mb/s, this connector is housed in durable LCP material, meeting UL 94V-0 flammability standards. Its through-hole solder termination method ensures secure installation, while the inverted latch orientation and right-angle mount offer versatile placement options. With a shielded brass housing and nickel plating, signal integrity is maintained even in demanding environments. Each package contains 80 connectors, ideal for large-scale deployments. Trust in the reliability and efficiency of this Industrial RJ45 Jack for your networking needs.
