2301996-4

Heilind Number:	AMP2301996-4
Manufacturer:	TE Connectivity
Manufacturer Number:	2301996-4
Datasheet:	Drawing
ECAD Model:

Description:

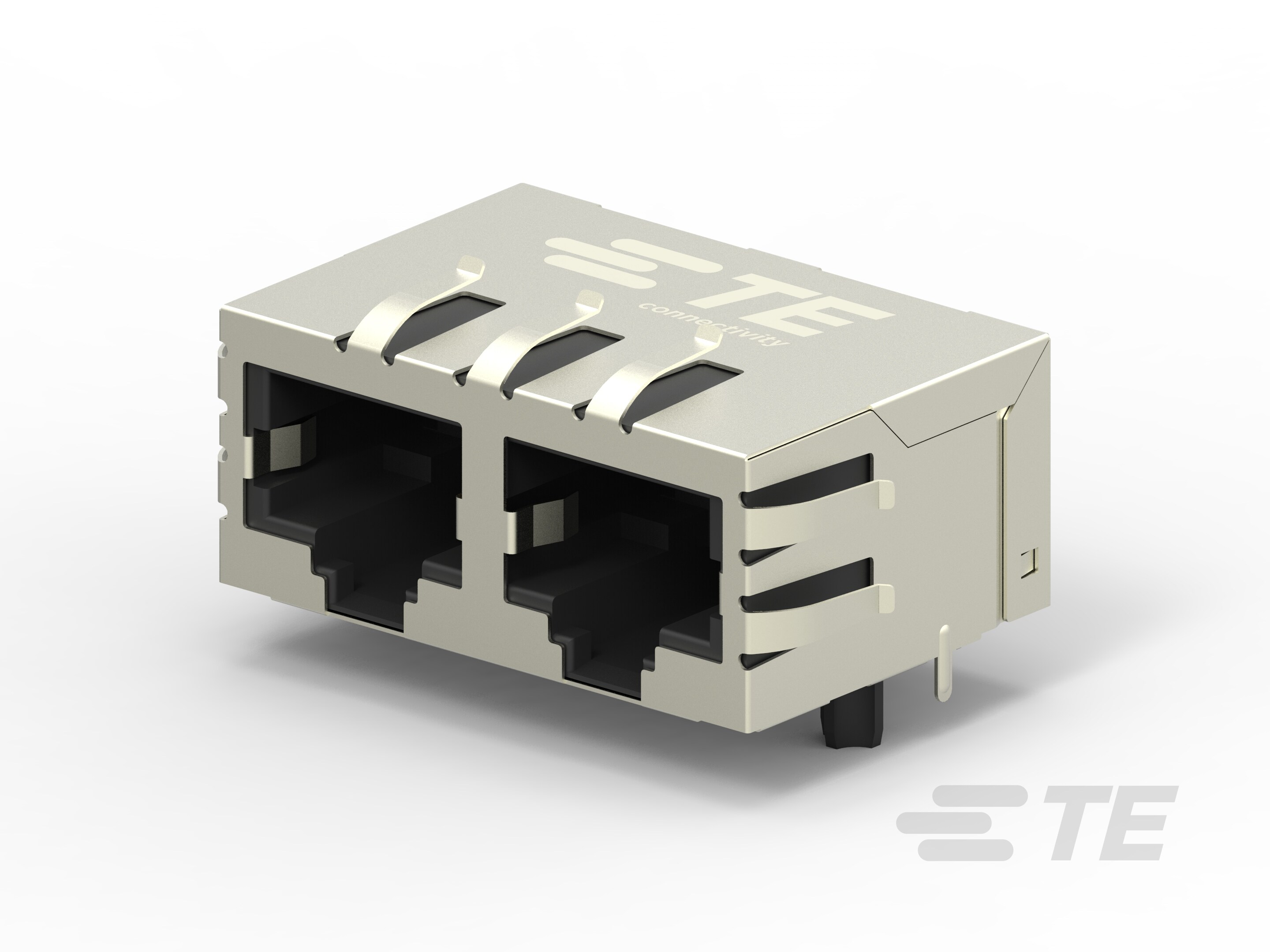

RJ45 JACK INT.MAG. 1GB 1X2

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks & Plugs
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301996-4
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Right Angle
Latch Orientation:	Standard - Latch Down
GPL:	Z16
LED Color (Bottom Right):	None
LED Color (Bottom Left):	None
LED Color (Top Left):	None
LED Color (Top Right):	None
PCB Ground Tab Location:	.12 in, 3.05 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Multiple Port Configuration:	Ganged
Number of Loaded Positions:	8
Mating Entry Location:	Side
Number of Panel Ground Tabs:	7
Number of PCB Ground Tabs:	2
Panel Ground Location:	Top and Side
Port Configuration:	Multiple Ports
Port Matrix Configuration:	1 x 2
Status Indicator:	None
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	13.5 mm, .531 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB and Panel Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301996-4

Detailed Description

Enhance your industrial network connectivity with our high-performance RJ45 Jack with Integrated Magnetics. Designed for seamless data transmission at speeds of up to 1000 Mb/s, this 1x2 connector boasts a durable LCP housing and copper alloy contacts for reliable signal integrity. With UL 94V-0 flammability standard compliance, it ensures safety in all operating environments. Featuring a right-angle mount orientation and standard latch, it offers easy installation and secure connection. The shielded design, brass shield with nickel plating, and ground options for both PCB and panel ensure optimal signal protection. Ideal for Cat 5e applications, this connector is RoHS compliant, guaranteeing environmental sustainability in your network infrastructure.
